The Ultimate Guide to Understanding Extruder and Expander Differences

The Ultimate Guide to Understanding Extruder and Expander Differences
Facebook
Twitter
Reddit
LinkedIn

Hello, and welcome to this fascinating perspective and tutorial on the differences between extruders and expanders during feed processing. This means that the article addresses the technical details and uses of these two machines, their specific features, and their advantages. Whether you work within the feed industry or are simply interested in how feed processing works, this guide will help you understand the processes of extrusion and expansion in the broader context. So, let’s begin by looking at what an extruder and an expander are, how they operate, and how they contribute to developing novel feed formulations.

Contents show

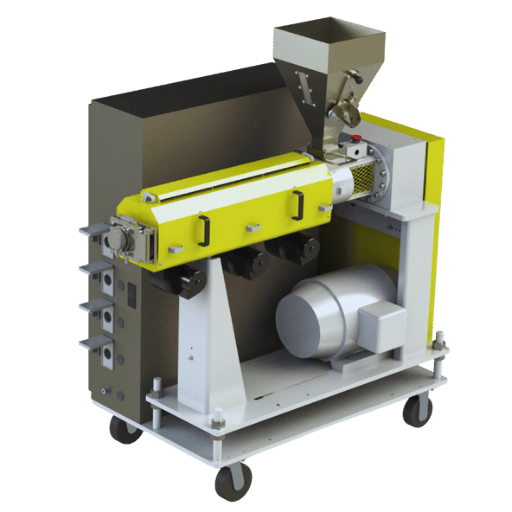

What is an Extruder?

What is an Extruder?

An extruder is a machine used in the feed industry and other industries to convert raw materials into the products to be attained. It is a handy machine that mixes, heats, and shapes materials using mechanical energy for continuous operation. About feed processing, an extruder is important in ensuring that raw materials are turned into high-quality animal feeds. This is done by mixing the animal meals with oil and carbohydrates and subjecting the meal to heat and pressure in an extruder, as this results in the transformation of the nutrient content of the feed, texture, digestibility, and amount of energy concentration in feeds. Extruders can formulate and produce almost any type of feed efficiently and accurately, and the formulation will satisfy the caloric needs of the animal. Therefore, through extruding technology, people who work in the field of feed can enhance the production of feeds and help improve the quality of animal feedstuffs.

How does a Screw Extruder work?

To improve the nutritional value of the feed, digestibility, or any other critical feed characteristic, processors use machines called screw extruders. This is achieved by using a rotating screw that compresses the feed particles and creates frictional heat within the extruder, which consists of a barrel. Such an arrangement provides mechanical shearing forces to the mixture as it flows through the rotating screw and the barrel, which results in pressure cooking of the mixture. Due to the increase in temperature, the mixture undergoes numerous physical and chemical changes, which involve the breakdown of starch and protein, thereby increasing the bioavailability of the nutrients. Furthermore, precise control over temperature, pressure, and other operational variables allows the formulation of feeds, targeting specific nutritional parameters. Thus, with a minimal increase in the intricacy of formulation, a screw extruder improves productivity and efficiency in feed formulation and production, hence enhancing both the quality and the overall safety of the final product.

Differences between Single Screw Extruder and Twin Screw Extruder

The Single Screw Extruder and the Twin Screw Extruder are the most utilized extruders in the feed industry, each of them having different working principles, including features and processing capabilities. The differences between the two can be summarized in the following points:

  • Construction: The predominant source of difference lies in their structure. In Single Screw Extruders, a single revolving screw drives the supply of feed along the barrel. Conversely, in Twin Screw Extruders, two intermeshing screws cooperate while treating the feed processed.
  • Capacity: A Single Screw Extruder is less effective than a Twin Screw Extruder. With two screw advantages, greater mixing and more processing efficiency, and hence greater output is achieved.
  • Adaptability: Single Screws Extruders are more common and have the capacity to process many types of feed ingredients and formulas. In contrast, Twin Screw Extruders are preferred because they provide better control of the extrusion process for applications requiring precision in mixing or specific textural characteristics.
  • Simplicity: Two screws are typically used in a Twin Screw Extruder, which increases the complexity of the machines and controls used. At the same time, Single Screw Extruders generally are low in complexity, which makes them easy to maintain and operate.
  • Cost: Single Screw Extruders have a lower cost. Thus, they are preferred mainly by small-sized operations or organizations where budget is a concern. But due to the sophisticated technology and their capabilities, the production cost of Twin Screw Extruders is higher.

When selecting a Single Screw Extruder or a Twin Screw Extruder, it is of utmost importance to keep in mind your needs and the industrial output that you seek to achieve. Consider throughput, feed formulation, and processing flexibility as a spending plan to ascertain the most suitable extruder for your feed manufacturing units.

Applications of Extrusion in the Feed Industry

The extrusion method significantly contributes to the feed industry as it has a vast array of applications that improve the various processes of feed production as well as the feed produced. A few of the areas staple where extrusion is practiced include the following:

  1. Processing of Feed Ingredients: Extrusion converts feed ingredients into finished animal feeds. Extrusion is one of the most efficient methods for processing raw food ingredients such as grains, oilseeds, legumes, and even waste from the food processing industry. Heating and pressurization improve the digestibility of ingredients, lower the level of anti-nutrients, and increase their nutritional values.
  2. Pelleting: Extrusion is used to manufacture pellets for livestock feeding. Exposing the feed mixture to heat, pressure, and shear greatly enhances the quality of pellets made from animal feeds. Thus, the performance of animals fed on pelleted rations improves due to high feed intake and digestibility.
  3. Additives in Phased Feed and Enhanced Nutrients: Feed companies’ use of extrusion during manufacturing can increase the amount of vitamins, minerals, enzymes, and probiotics in the feed blend. Extruding also changes the distribution of essential components in the final feeding formulation, making mixing more efficient.
  4. Pet Food and Aquafeed: An advanced feed processing technique allows for easily incorporating tailored formulations, textures, and shapes to meet the needs of different aquatic species and pets when producing aquafeeds and pet foods.
  5. Surveillance of Feeding Quality Safety: Extrusion’s most significant advantage regarding feed safety is reducing pathological organisms and contaminants in the feed mass. The feed is subjected to heat and pressure during extrusion, which assists in removing bacteria, viruses, and molds to guarantee feed hygiene and minimize the risk of any feed-related diseases.

Using the advantages of feed extrusion technology, feed producers can improve the quality of the feed, its formulation, and its effectiveness for animal production. Care must be taken to engage specialists in the field so that extrusion processes are adapted to specific feed production requirements.

What is an Expander?

What is an Expander?

Principles of Expansion in Animal Feed

Expansion is when the feed is passed through the controlled processes of pressure, heat and moisture in an expander implement. This somewhat alters the physical and biochemical structure of the feed, and the volume of the feed mass increases, the reversibility of the feed improves, and the nutritional value increases. Expansion is brought by subjecting the feed mixture to fast heat and pressure and letting the pressure rise suddenly, thus releasing the heat, erasing all moisture from the feed, and structuring it puffed and airy.

The principles governing the expansion of animal feed components are based on the following distinct elements:

  1. Gelatinization of Starches: Expansion is the operation where heat and moisture enable the starchy components contained in the feed to gelatinize; starch granules absorb water. This gelatinization increases the metabolic efficiency of the starches as it makes them easy to use in the animal’s metabolism.
  2. Protein Denaturation: The high temperature needed in such expansion processes results in the denaturation of proteins that were initially solubilized in the feed exchanges. This denaturation restructures proteins into simple structures that can be easily digested and assimilated into animals, thus increasing their bioavailability.
  3. Structural Transformation: The alteration of heat, pressure, and moisture leads to changes in the physical state of the feed particles, forming a porous and expanded structure. This enlargement of the surface area increases the odds of the feed contacting various digestive enzymes and hence enhances the animal’s absorption of nutrients.

The expansion principles enable feed manufacturers to create ‘high-quality’ feeds that are easily digestible, well-utilized for nutrient purposes, and enhance animal performance. To attain the set targets, it is necessary to collaborate closely with specialists in expanding the process for specific feeds.

Comparison: Expander vs. Extruder

Feed expanders and extruders are established techniques in feed processing aimed at enhancing animal feed’s nutritional and digestible properties. Although both these processes share some commonalities, the studies show that some differences may affect the final quality and performance of the feeds. In this context, let us briefly consider the significant features and advantages of each of the processes:

Expander technology has been designed to enhance starch processing in animal feed.

  • Employs the use of heat, moisture, and mechanical pressure on the feed ingredients.
  • Increases the digestibility of animal feed as well as increases nutrient utilization.
  • Improves animal performance via enhanced feed nutrient utilization and absorption especially starch and other carbohydrate components.
  • Aids in the gelatinization of starches making the feed more appetizing.
  • Produces, expanded pellets or extrudates with higher bulk density and good physical structure.

Extruder Technology

  • High temperature, high pressure, and shear force are used to treat feed ingredients.
  • The processes readily support gelatinization and protein denaturation for better digestion.
  • It can produce feed in several shapes, such as pellets, flakes, or any form in which the feed can be made.
  • Improves the texture of feed for better intake and feed utilization.
  • Allow various types of ingredients, impressively high fiber or high oil materials.

The selection of either an expander or an extruder will depend on the nutritional value of the formulations and the feed’s expected characteristics. It is advisable to work with a feed processing perspective to enhance the selection and use of the best technologies for the quality and performance of feeds.

Note: The above information is based on practical experience working with the industry; it is essential to discuss with experts and evaluate the best technology for such applications and processes that reason feed requirements and formulations

Benefits of Using Expanders in Feed Processing

With extensive expertise in feed processing technology, I can unambiguously state that expanders have benefits in feed processing related to starch gelatinization enhancement. Among other things, expanders are essential in improving feed quality and performance. This is achieved by providing adequate pressure and temperature on the feedstuff to boost its digestibility and nutrient utilization. Such improves animals’ growth, development, and health. Additionally, expanders are easier to use because they are not as energy-consuming as extrusion, and they process quicker without excessively heating sensitive materials. Additionally, expanders make it possible to process different feed formulations with the desired properties. Consulting with feed processing specialists on the best way to meet your requirements and the type of feed is imperative in achieving the best feed quality and feed efficiency thanks to the right processing technology.

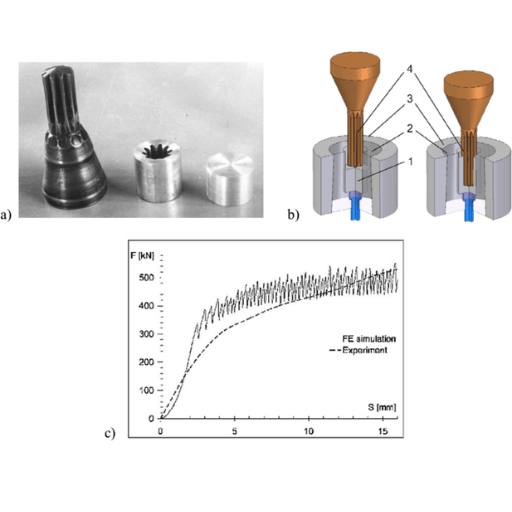

Comparing Extrusion and Expansion Processes

Comparing Extrusion and Expansion Processes

How do Pressure and Temperature Affect Extrusion?

Being a professional in feed processing, I will discuss the influence of pressure and temperature on the extrusion process. In the extrusion, both pressure and temperature are critical parameters that affect the end product significantly. When the feed mixture enters the extruder through a throat, it is put under pressure and, thus, is forced through a gap. This pressure assists in defining the shape and texture of the feed. Temperature, however, is essential in the cooking phase and the gelatinization of ingredients so that digestion and nutrition can be improved. By adjusting pressure and temperature during the extrusion – we can improve both feed quality and its assimilation in the animal’s body, thus ensuring full satisfaction of their nutritional requirements.

The Role of High Shear in Extrusion vs. Expansion

The disparity in the feed mechanism of processing explains the distinct features present in extrusion and expansion processes. In extrusion, high shear is made possible by the rotating screws inside the extruder, where pressure is applied to the mixture as it goes through a narrow opening. The result is effective gelatinization. Extrusion shear is high, and the feed is ultimately put through a die, forcing it into the desired shape and texture of the feed. On the other hand, expansion involves the feed being placed inside a high-temperature and steam environment, which ultimately expands and pelletizes the feed. Both processes are described as involving shear; however, shear operations are more familiar with the extrusion process due to the mechanical forces exerted on screws. This high shear improves the cooking, gelatinization, and shaping of the feed, effectively transforming the feed’s starch content and ensuring enhanced feed performance for animal nutrition purposes.

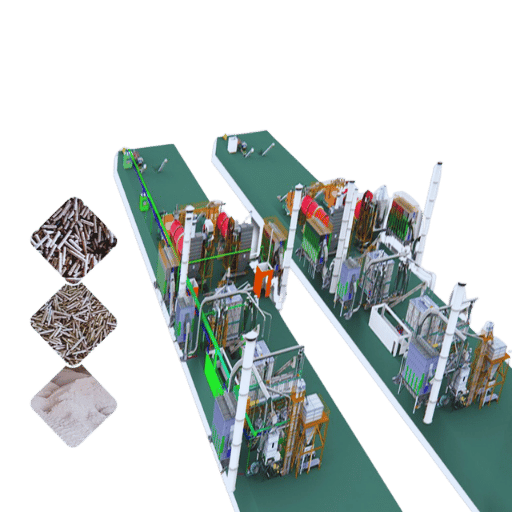

Understanding Pellet Production

Understanding Pellet Production

Why Choose Extrusion for Pellet Making?

Due to its varietal merits and better outcome, extrusion is the most suitable technique for producing pellets. The structure and texture of the feed can be well controlled during extrusion, which results in well-formed pellets. This involves cooking and gelatinization of the feed by use of high shear forces developed from the mechanical action of screws, such that higher nutritional values and easier digestion of the feed are achieved. As a result of the use of steam and high temperature, the feed quality is improved due to the breakdown of anti-nutritional factors. Furthermore, extrusion allows for greater freedom in ingredient selection, enabling many ingredients to be added to fulfill specific nutritional needs. Considering the efficiency, adaptability, and good quality of pellets produced, extrusion is the most suitable method for making pellets in the production of animal feeds.

Impact of Pellet Quality on Animal Feed Digestibility

The compression and consolidation of pellets promote proper appendage and strong feed absorption by the animals. The appeal of a dense and well-formed pellet reduces the complexity of feeding the animal. Furthermore, the combination of starch in proper amounts and other critical nutrients generally prevents unequal distribution and aids in appropriate feeding absorption. Consequently, well-made pellets provide more surface-area enhancing enzymatic action and the breakdown of nutrients in the gastrointestinal tract, thus ensuring maximum utilization of starch. Emphasis on these key elements ensures adequate absorption and, in due course, modified performance of the animals. Thus, further sophistication of the production techniques, including extrusion of pelleted feeds, is crucial to improve digestibility and proportionate rates of feed intake.

The Influence of Gelatinization in Pellet Manufacturing

To begin with, what is the role of gelatinization in the production of pellets? It must be acknowledged that gelatinization is an essential part of the manufacturing process. During gelatinization, the feed components containing starches are heated and moist, which causes the starches to change their molecular structure. This alteration leads to the enlargement and disintegration of starch molecules and particles that enhance nutrient and, eventually, energy content digestibility.

Advantages of Gelatinization in Pelleting:

  • Enhanced Nutrient Utilization, especially Starch Gelatinization, explains the mobility of feed components. More importantly, it explains how more nutrients are present in the animal body due to better feeding management practices outlined in feed processing, that is, heat and moisture treatment. This way, gelatinization reinforces gel formation and gel breakdown rates of starches, meaning more digestible starches are available, and more nutrients are accessed and ingested.
  • Higher Feed Utilization: The dosage and time for the fusion process are also important to ensure that the optimum amount of boiling water mixes with the powdered feed. With the aid of gelatinization, a well-compacted, structured pellet is formed that animals can effectively consume and easily digest. Gelatinization improves feed conversion efficiency and lowers feed costs by reducing feed wastage.
  • Uniform Nutrient Distribution: With Gelatinization, nutrients within the pellet are more evenly spread. Because of this uniformity, the animal’s preference to feed selectively is reduced, and cases of nutrient deficiencies or excesses are prevented. Each individual pellet is composed of an inverse mixture of all necessary nutrients, thus allowing the animal to have a balanced diet at each bite.

Increased Surface AreaGelatinization contributes to enlarging the surface area of feed particles. This enables partial starch transformation, increasing the contact points between the feed and the animal’s digestive enzymes. This increased surface area, in turn, results in more nutrients being broken down and absorbed, thus enhancing feed digestibility and animal productivity.

Feed manufacturers can treat nutritional deficiencies and improve digestibility in animal feed by applying gelatinization during the pellet manufacturing process. The degree of gelatinization of starches, controlled by extrusion and expansion methods, determines the quality of the resulting pellets required for normal animal growth, health, and optimum performance.

Frequently Asked Questions about Extruder and Expander

Frequently Asked Questions about Extruder and Expander

Can an Expander Replace an Extruder?

Expanders and extruders are very common in the feed industry but have different functions and purposes. While they might have some features in common, it is crucial to appreciate their respective strengths and weaknesses, especially the differences between the two methods of processing starch.

An extruder is a high-temperature and high-pressure machine that processes feedstuff into different forms, such as flakes and pellets, through mechanical shear and heat application. It permits a high degree of control over the extrusion process by enabling varying parameters such as temperature, pressure, and feed composition. Thermally processed ingredients such as starches and protein sources are easily processed with extruders. This improves the feed’s digestibility, increases the feed’s density, and improves nutrient utilization.

An expander, however, works on the opposite. Expanders operate at lower temperatures and pressures than extruders. Cell wall structures are broken down, and the digestibility of the feed is improved through the application of steam, heat, and mechanical shear provided in the expander processing. Although expanders are mainly used in the processing of oilseeds, they can find a purpose in the production of animal feeds, where they are often aimed at improving the feed’s texture and increasing digestion rate.

While expanders and extruders have some functions in common, they are not comparable in all operational aspects. The decision on whether to choose an expander or extruder is influenced by a number of factors including the particular feed ingredients, intended end product and other processing conditions. Hence it is necessary to seek advice from feed experts and assess the particular requirements of your setup to establish what equipment is most suited for your feed manufacturing process in your context.

Please understand that the information available here is industry-normative and based on common sense and expert consultation. If you need to make equipment procurement decisions in your feed production activities, it is prudent to approach specialists or seek thorough studies relevant to your situation.

What are the Anti-Nutritional Factors in Extrusion?

Extrusion is mixing feed, overcoming static or dynamic problems, adding liquids, heating, and forcing the material through a die to produce a final product. Anti-nutritional factors (ANFs), such as hampering an animal’s growth or health, are an issue that must be resolved beforehand. This includes:

  • Phytates Antinutrient Phytate is present mainly in oilseeds and grains, feed ingredients. Such a phytate may prevent animals from obtaining calcium, phosphorus, and zinc, key minerals.
  • Tannin is a major nutritional factor in legumes and tree leaves. It limits the animal’s protein absorption capacity and the amount digested.
  • Protease Inhibitors—Protease inhibitors exist in plant proteins such as Soybeans; this compound stops enzymes involved in protein digestion, making it difficult to consume.

One of the negative effects of ANF is limited growth or dire animal health. However, this can be neutralized by extrusion. Significant amounts of heat, pressure, and shear are used during the extrusion process to reduce nutritional values. This decrease leads to better animal absorption capacity, which is in their favor.

It is critical to remember that not all feed ingredients will contain the same anti-nutritional factors and that their influence may depend on various aspects, such as the quality of the ingredient, how it is processed, or the type of animal. To maximize the chances that extruding will reduce anti-nutritional factors, working closely with feed processing specialists and conducting a thorough ingredient investigation is necessary.

Best Practices for Operating Twin-Screw Extruders

To ensure the adequate performance and efficiency of the twin-screw extruders, the following guidelines must be observed:

  1. Appropriate Pre-Conditioning: Ensure that the lumped feed is conditioned correctly, including grinding, mixing, and preheating, before being extruded, to the required moisture content and uniformity.
  2. Maintaining Feed Rate: The feed rate into the extruder must be consistent throughout the mixing and processing cycles. It must also be monitored and controlled to achieve the desired extrusion results.
  3. Maintaining Proper Temperature: Throughout the extrusion process, the barrel and die temperatures must be kept within desired temperature ranges to enable efficient cooking and extrusion of the feed.
  4. Selection of Screw Configuration: Based on the characteristics of the feed and the processing parameters, appropriate screw configuration must be selected and designed such that there is adequate shear, mixing, and residence time for enhanced nutrient utilization.
  5. Optimization of Die Design and Gap Setting: Proper dies and gaps must be designed to obtain the desired shape and size of products. Minimizing variations in die gap will lead to minimum back pressure and enhancement of product quality.
  6. Monitoring and Maintenance: Ideally, the parameters of an extrusion process, such as temperature, pressure, and motor load, should be regularly monitored in order to track any variations or problems that could arise. Routine maintenance actions are also carried out, like cleaning of barrel and screw to enhance normal function without build-up.

In addition, the suggestions above allow the twin-screw extruder to function properly, which leads to increased performance and improves efficiency, quality, and nutrient utilization in feed production.

Frequently Asked Questions (FAQs)

Frequently Asked Questions (FAQs)

Q: What is the main difference between an extruder and an expander?

A: First, two main differences exist between an extruder and an expander regarding their function and use. One has to consider that an expander is akin to an extruder but has a lower shear property. Such machines typically feed materials that need low mechanical energy, such as aquatic feed. Secondly, extruders are used in diverse forms for high-shear applications to extrude oils and oilseeds.

Q: How does an extruder generate heat?

A: An extruder is mechanical in nature, and therefore, mechanical energy is heat absorbed. Picture this: As the extruder shaft forces the material through the extruder barrel, high friction and pressure build-up, thereby cooking and melting the material.

Q: Can expanders and extruders be used interchangeably?

A: They tend to perform the same function but are not always interchangeable, but the expander’s job greatly differs from that of an extruder. Expanders are characterized by low shear output, while extruders are for high shear output, and they perform a wide variety of functions, such as low-energy aquatic feed.

Q: What purpose does Solvent extraction fulfill after mechanical processing?

A: Once the oilseed materials are subjected to post-extrusion operations like expansion, oil is extracted through solvent extraction. The extrusion technique fosters the subsequent extraction process by enlarging and rupturing the cellular walls to enhance the material’s surface area.

Q: Why is the extrusion process a critical unit operation in the feed industry?

A: The extrusion process is an important step in feed processing. It enables the manufacture of a range of feed materials, including fish feeds, which have been further improved in terms of palatability and nutritional value. It also aids in the inactivation of anti-nutritional factors associated with raw materials.

Q: What are some notable uses of the extrusion and expansion technology?

A: Extrusion and expansion technology finds various notable uses in manufacturing pet foods, feeds for pelagic fish, and the oilseed industry. These processes enhance and modify the physical and nutritional attributes of the resultant product.

Q: What role does the temperature in the barrel play in the extrusion process?

A: The temperature in the extruder barrel is crucial to the extrusion process because it influences the cooking, the thickness, and the end product’s quality. Two extremes of temperature—high or low—often deteriorate the quality of the material or render it useless.

Q: What is the historical role of Anderson International Corp in the extrusion industry?

A: In extrusion technology, Anderson International Corp is significant in building the expander and elaborating innovations in extrusion and expansion technologies. These innovations contributed to further developing the mechanical treatment of raw materials such as oilseeds.

Q: What is the use of different types of extruders?

A: Integrating several types of extruders makes it possible to increase the performance level, process different materials, and manufacture various shapes and textures of products, which means that the production lines are flexible and efficient.

Reference Sources

1. Fused Filament Fabrication (FFF) and Extrusion:

  • Pretesh John et al.’s research outlines creating a MATLAB program for obtaining coordinate information concerning the tool path from the G code of parts produced by FFF (John et al., 2023). During the 3D printing process, an extruder is used, extruding the material in steps until the part is completed. The investigation concerns geometric and mechanical properties simulation, which is fundamental in FFF analysis, especially in extrusion.

2. Heat Transfer in Insulation Materials:

  • The work developed by Y. Tian et al. analyzes the heat transfer coefficient of wall external thermal insulation materials, including EPS and XPS boards (Tian et al., 2011, pp. 1427–1430). Although this has no direct bearing on extruders or expanders, the segment deals with extrudable materials. For instance, EPS, expanded polystyrene, pertains to an expansion process.

3. Real-Time Object Recognition:

  • Feng Lin et al.’s work on an improved floating debris detection algorithm based on the YOLO model (Lin et al. 2021) is not directly concerned with extrusion or expansion. However, it utilizes sophisticated image processing technologies that could be applicable in the context of monitoring and quality assurance in the case of manufacturing processes employing extruders or expanders.
