Thank you for visiting our guide on the distinctions between TPU (thermoplastic polyurethane) and PMMA (polymethyl methacrylate). In this article, we will delve into the technical aspects of these materials, exploring their structures, properties, and mechanical behaviors. This guide will give you an understanding of TPU and PMMA so that you can appreciate their essential applications, be it as a materials engineer, a polymer manufacturer, or even if you are just interested. Combining the understanding between these two materials and polymers’ science may sound interesting, along with the applicability of these two materials. The guide will assist in that understanding.
What is TPU?
Thermoplastic Polyurethane (TPU) is one of the elastomeric polymers integrated into block copolymer formulations to improve performance. It is known to have better mechanical properties such as high tensile strength, high level of flexibility, and abrasion resistance. A TPU is one type of thermoplastic, which means its characteristics make it capable of being remolded and melted many times without becoming irreversibly damaged. The polymer is in high demand in the automobile, footwear, electronics, and sportswear industries due to its high resilience, allowing it to endure high and low-temperature ranges. Thermoplastic polyurethanes are composed of soft and hard segments arranged to obtain rigidity and elasticity. These properties make it ideal for structures where stability and flexibility are needed, such as seals, protective devices, and some implements in the medical field.
Structure of TPU
Thermoplastic Polyurethane (TPU) is a high-performing polymer with diverse utility. TPU is made up of both soft and hard segments, giving it an elastic and rigid structure. This particular structure contributes to the durability and temperature gradient that TPUs possess. It is commonly used in the automotive, footwear, electronics, and sports industries. The durability and flexibility of TPU allow it to be used in various seals, protective wraps, and even in medical machinery. The very makes of the composition and characteristics of TPU enable the use of the polymer for applications where both strength and flexibility is paramount.
Types of TPU and Their Uses
Thermoplastic polyurethane, or TPU, is available in different kinds and has different applications. Below are some of the prominent types of TPU, along with their common use:
- Esters TPU: This TPU type is highly resistant to abrasions, oil, and chemicals and is, therefore, applicable to automobile parts, conveyor belts, and industrial seals.
- TPU ether: This ether-based TPU is not only elastic but flexible, and hence, it is widely used in the manufacture of wear-shoe sports, products requiring a long inflator, etc.
- Polyether ester TPU: This type of TPU combines the best of both worlds, ester-based and ether-based TPUs, and provides adequate strength, flexibility, and chemical resistance. It is ideal for use in automotive parts, shoes, and medical equipment, where the inclusion of high TPU would provide a better outcome.
- Glass fibre reinforced TPU: This TPU type contains added glass fibres and as such has greater strength and rigidity- it is therefore used for applications that require high mechanical strength such as automotive and electrical structural components.
- Flame-Retardant TPU: This thermoplastic is designed to pass high fire rating requirements. It is ideal in construction and modern settings, as it lowers the chances of fire expansion in electronic devices and cables.
These are only a couple of examples of the types of TPU available in the market. The proper type of TPU is chosen based on the application’s specific requirements, including aspects such as durability, flexibility, chemical resistance, and mechanical strength.
Mechanical Properties of TPU
The elastic materials used in the construction of devices are often regarded as a crucial factor influencing the performance of a device, as these materials can easily change their shape depending on the applied force. Therefore, it is important to intelligently select a material with optimal mechanical properties that allow it to perform well under load. An ideal candidate would be a thermoplastic such as Thermoplastic Polyurethane (TPU). TPU shows remarkable mechanical properties, making it great for many varied applications across multiple industries. Further in the article, we explore some core characteristics of TPU from a mechanical perspective that would allow an engineer or product designer to make more informed choices regarding this material.
Tensile Strength and Elongation at Break: One of the great features of TPU is its world-class tensile strength, which allows the material to absorb a considerable amount of stress before breaking. Additionally, this material does not have a low tensile strength, which would guide the application of TPU. Vivo a wide range of use cases such as automotive parts, footwear and even medical devices, TPU encompasses a LPDDR3 (Low Power Double Data Rate Synchronous Dynamic Random Access Memory) chip that carries a high tensile strength to a high elongation threshold allowing for versatility and durability.\n\nImpact Resistance: A major concern when considering material for protective equipment devices is impact resistance, which TPU shows varieties of. This is fundamental in the construction of devices and equipment of many applications where material failure is not acceptable due to loads that might be encountered; consequently, it shows potential for sports equipment, electronics and any other protective gear.
Thermoplastic Polyurethane (TPU) is a polymer material with a wide temperature range that exhibits many mechanical properties. Consequently, one exceptional property TPU possesses is Flexibility, which is a widely required trait in industries such as seal manufacturing or hose production. TPU can bend and stretch to various degrees and still remain intact even when worked under thousands of seals, making it ideal.
Another property of TPU that is worthy of attention is its Abrasion resistance. When material is improperly or carelessly used, friction and wear can’t be avoided; this is where TPU shines as well. TPU can withstand tons of friction and numerous rubs without showing any sign of damage. As a result, it becomes an ideal material for industries that require heavy-duty equipment such as conveyor belts and gaskets.
TPU can resist oil, solvents, and some chemicals, which in turn adds to its properties and improves its durability. This is a property that becomes a requirement for many industries, such as coating and sealants, to name a few. Understanding the workings of TPU is important to avoid disappointment as it can assist in preventing many problems and fulfill the specific requirements needed from the application. Especially when modifying the weight of TPU, by carefully contemplating factors like tensile strength, elongation, impact resistance, and abrasion, you can select the best-fitting material for the desired purpose.
Exploring Polymer Characteristics: PMMA vs. TPU

Properties of PMMA
Polymethyl methacrylate (PMMA) is a clear thermoplastic polymer with a high clarity optical property and a high light transmission. Due to its good weathering properties, it can be used in outdoor applications, particularly PMMA and PMMA-based blends. PMMA is characterized by low density and good impact strength and can replace glass in many applications. In addition, PMMA is resistant to many common chemicals. In particular, it has the ideal flow properties capable of being molded into many forms. Due to such properties, PMMA is used in applications of signboards, light covers, motor parts, and medical artifacts.
Remember that PMMA’s particular properties can change depending on how it has been produced or whether an additive or modifier is used.
Impact Strength of TPU vs. PMMA
I would like to mention that I have a particular interest in materials which in this case are thermoplastics, particularly thermoplastic polyurethane (TPU) and polymethyl methacrylate (PMMA). As such, would it be correct to say that as a structural foam, TPU would provide excellent impact strength, considering its elastomeric matrix gives the foam the ability to dissipate energy during an impact? Indeed, this does not appear to be the case for PMMA since it is well-known that PMMA or poly methyl methacrylate tends to fracture or break easily. This shows that when it comes to the two materials in discussion, Methyl Methacrylate is not ideal for applications with high tensile strength, especially when sudden impact is involved. This definitely increases the use of TPU in industries that rely on flexible parts, such as the automotive industry, for parts that can withstand impact more.
Effects of Blending PMMA with TPU
My work in materials engineering has allowed me to investigate the consequences of thermoplastic polyurethane and PMMA (polymethyl methacrylate) fusion. Merging these two polymers presents an interesting way to obtain the blended characteristics and the other properties of the new materials developed. The resulting PMMA/TPU blend can have better impact resistance than pure PMMA due to the TPU, which has an excellent impact strength. In most cases, PMMA melded to TPU improves the resilience of PMMA against shocks, vibrations, and blunt force impacts. This, in turn, makes the blend fit for use in areas that experience high impacts, like automotive parts or protective covers. For given particular use conditions, particularly taking account of what the TPU does, it is possible to reach what is considered to be an optimum blend ratio that gives the best compromise between toughness and other required features.
How Does Tensile Behavior Differ Between TPU and PMMA?
Tensile Strength Comparison
Coupling the tensile strength of Thermoplastic Polyurethane (TPU) and polymethyl methacrylate (PMMA) and their contribution in terms of mechanical performance should always be preceded with a definition of their distinct features. TPU is characterized by good impact strength, which, when added to PMMA, can improve the shear strength of the blend used. Such a blend provides an increased resistance to external factors such as sudden shocks, impacts, and vibrations, thus making it suitable for places where impact resistance proves to be useful, for example, automotive components or protective covers. It is also possible to achieve an appropriate combination of impact resistance properties with other desired properties by altering the blend amount of both TPU and PMMA for particular applications, optimizing the performance.
TPU tends to have a higher fitness value than PMMA in most cases, aided in part by its tensile TPUs’ content. Tedious polycarbonate chains and TPU’s molecular makeup assist in this core tensile attributes, resulting in the material being able to bear tension and deformation and withstand mesoubonosteal breakage. In contrast, PMMA fails under such stress levels because it is brittle and has a lower tensile strength.
Equally, the tensile strength of TPU and PMMA may vary by manufacturing grade and formulation. Manufacturers have technical data sheets that give insight into the specific products sold and specify their mechanical characteristics to enable engineers and designers to choose the best one for the specific performance requirements.
Being aware of both’s tensile strength as a factor should help engineers and designers determine which material meets each application’s requirements. This includes considering impact resistance, tensile strength, and other mechanical performance properties.
Influence of TPU Content on Tensile Behavior
Temperatures during the thermoplastic polyurethane (TPU) processing influence the resulting properties of different grades of the TPUs as well as their compositions. Other hard and soft segment ratios can be used to prepare TPUs, thus making them an adaptable material with varying mechanical properties. Two mechanical aspects, termed tensile strength and stretch-breaking, are usually directly proportional to the amount of TPU in the structure despite slight differences caused by material formulations.
The tensile strength of the TPU/PMMA blends rises with an increase in the TPU content because the elongation and tensile strength of the TPU are excellent and can resist a lot of stress. Therefore, when the TPU content in the material is increased, the tensile strength of the new compound rises, enhancing its ability to be pulled and stretched.
The specific composition of the blends in use, as well as their processing conditions, should also be taken into account when evaluating the tensile strength of TPU/PMMA materials. Every manufacturer will provide a specific TPU and PMMA product data-sheet. Structural designs can be made considering the projected performance outcomes since the prerequisites provided for these sheets are useful information for engineers and designers.
The dependence of tensile behavior on the content of TPU in TPU/PMMA blends demonstrates the need to know these materials‘ mechanical and structural properties. Considering parameters such as impact resistance, tensile strength, and overall performance, a material and its composition can be chosen for a given application.
Understanding Mechanical Properties: TPU and PMMA
Impact Resistance of TPU and PMMA
Considering the impact properties of TPU (Thermoplastic Polyurethane) and PMMA (Polymethyl Methacrylate) materials is crucial when assessing their serviceability in various applications. Regarding impact resistance, TPUs are renowned for their combination of toughness and elasticity, allowing them to bear considerable impact forces without breakage or permanent deformation of materials. Conversely, PMMA or acrylic as it is otherwise known, has relatively lower impact resistance as compared to TPU. It is more brittle and likely to break or shatter when a forced impact or stress is suddenly applied.
Several standard test methods, like the Izod or Charpy impact test, exist to objectively measure and evaluate the impact resistance or strength of TPU and PMMA material. These measure the fracture energy of the material as it breaks, which aids in determining the intermediate impact loads that the material can withstand comfortably. These values help determine the specific limits of the bearings as they admit for certain impact loads. Therefore, values corresponding to various grades and formulations of TPU and PMMA have been included in manufacturers’ data sheets as results of these tests have been published.
In applications where impact resistance is important, it becomes helpful to analyze the mechanical properties of the materials such as TPU and PMMA. Here, the specific impact strength, elongation at break, and the service conditions oriented towards the use of such materials have to be evaluated. Thus, knowing the effectiveness of polyurethane and polymethyl methacrylate materials for impact resistance, engineers and designers can make the right decisions in selecting the most appropriate tooling materials from their point of view.
Glass Transition Temperature Difference
The glass transition temperature (Tg) is, together with the other transitions, such as crystallization, another point that characterizes the behavior of polymers. In this case, TPU and PMMA differ significantly in this respect. The general characteristics of TLC and PMMA indicate that the former has a lower glass transition temperature (\[Tg\] \u2264 \[Tg\] \ White said) when both polymers are compared. The glass transition temperature of a TPU ranges between -30 \ and 50 Celsius.72 The Glass transition temperature range for poly methyl methacrylate, on the other hand, is 105 Celsius.
Simply put, the wide dispute in \[Tg\] of both TPU and PMMA but the same constant volume leads to the difference in their mechanical and effective features. This characteristic makes TPU suitable for impact resistance applications in low-temperature ranges because it is the aspect that makes TPU able to retain perfect elongation and elasticity mold at low-temperature ranges. This characteristic makes PMMA occupy a designated area that requires a high-temperature resistance since the high geometric transition temperature enables PMMA to demonstrate better geometric stability and rigidity on high-temperature ranges.
Engineers designing products by selecting materials fairly must consider heat distortion temperature. The correct answer to these questions above will lead engineers to the correct results in view of the performance and durability of the product.
The behavior of TPU in Various Conditions
Thermoplastic Polyurethane (TPU) is one of the most versatile materials owing to its striking behavior under different conditions. The lower glass transition temperature (Tg) of TPU gives it sufficient mobility to be flexible and elastic even at low temperatures. This particular trait enables TPU to have good mechanical properties and resistance to impact when low temperature is surrounding it, which is helpful for applications that require flexibility under negative temperatures. Moreover, TPU also maintains its responsiveness and durability in a number of high-strain rate applications, which makes it appropriate for applications dynamically distorted by flexing or stretching cycles. All these features made TPU a material of choice in automotive, shoe-making, and sports equipment, where constant replacement and strong performance over a variety of conditions are important parameters to be considered.
What Role Does Polymer Structure Play in TPU and PMMA?

Understanding the Structure of TPU
Thermoplastic Polyurethane (or TPU) is a material of choice for many engineers and designers. Producing block copolymers, TPU typically maintains a strong elasticity due to the reaction between diisocyanates and short-chain diols. These diisocyanates and short-chain diols consist of volumes of polyurethane, which enables TPU to remain durable throughout its use. TPU is unique in its design, laid out in a segmented copolymer construction that utilizes multiple volumes of soft and hard segments.
Many applications already utilize TPU, but there are obviously more applications that can benefit from using the material more extensively. TPU has a lower transition glass (Tg), which allows it to retain multiple mechanical properties in harsher environments. Many designs built with the aid of CAD lower the limit of what a mechanism can experience, pushing it to subzero temperature. Solving this issue will allow the material to maintain all its benefits.
Applications built for automotive engineering, footwear, and sporting equipment are always at the high end of the market. Time and mechanical degradation allow these applications to stretch and strain, but they don’t break. The polymers maintain a strong resilience throughout repeated use. Harsh usage is well suited for CAD designs built with the aid of PMMA blends.
Studying the molecular structure of Polyurethane, TPU for short, makes it easy for engineers and designers to utilize its specific characteristics in creating new and dependable products for multiple applications.
The PMMA Matrix and Its Implications
The structure and efficiency of Thermoplastic Polyurethane (TPU), under varied scenarios, highly depend on the Polymethyl Methacrylate (PMMA) matrix. Composites of TPU display high impact strength and good optical properties. These two qualities make PMMA a good matrix material for use with TPU. Further, this matrix can improve the mechanical characteristics of the commingled fibers, allowing for far greater end uses or applications.
The PMMA matrix gives structure and stability to TPU, particularly when larger TPU proportions are used. It works like an adhesive, keeping the TPU segments together and stopping any peeling. The PMMA matrix is strong and intact, contributing positively to the mechanical performance and dimensional stability of the TPU composites.
Additionally, a PMMA matrix can help a TPU resist moderate heat while allowing it to maintain its mechanical properties even after being subjected to external temperatures. This allows composites of TPU to maintain mechanical properties such as flexibility and impact resistance even when placed under extreme temperatures, which is required for larger TPU applications.
Apart from thermal and mechanical advantages, using a PMMA matrix is also beneficial for the softness and aesthetic perception of TPU composites. Being translucent and having good optical properties, vibrant colors and appealing visuals are possible. Therefore, TPU composites are increasingly being used in areas where appearance is essential, such as consumer electronics or automotive interiors.
Optimum utilization of the TPU and the PMMA matrix allows engineers and designers to work with a diverse material base to manufacture new and reliable products. They will be able to develop optimal solutions for hostile environments in terms of temperature and mechanical pressure, where elasticity, strength, and attractive looks are needed. The combination of TPU and the PMMA matrix allows for such solutions. This opens up a wide range of applications of TPU and PMMA in many industries, spurring the creation of new solutions for the changing market needs.
Frequently Asked Questions (FAQs)
Q: What characteristics do thermoplastic polyurethane (TPU) possess distinguish it from polymethyl methacrylate (TPU)?
A: The characteristics that differentiate thermoplastic polyurethane (TPU) from polymethyl methacrylate (PMMA) predominately exist in their chemical and some physical constructs. To start with, TPU is an elasticized thermoplastic polymer, whereas PMMA is considered transparent but solid. While TPU may possess great elastic and abrasion resistance, PMMA is appreciated for its optical and weather protection properties. The cases presented regarding these two discussed materials highlight the variations of usage that they have across industries.
Q: How do the mechanical properties of PMMA change while applying TPU when adding layers?
A: The mechanical properties of PMMA can be significantly affected by adding TPU to PMMA composition. In general, it is well known that an increase in the amount of thermoplastic elastomer improves the overall polymer blend in terms of its impact strength and flexibility. This blend is known to have greater low-temperature impact strength and increase in the Izod strength than unmodified PMMA. But, of course, these changes depend on the percentage of TPU applied and the formulation of the blend used.
Q: Can TPU be used as an impact modifier for PMMA?
A: Incorporating TPU into PMMA enhances not only the impact strength of the resulting blend, but also improves the toughness of the polymer. This is due to the TPU’s ability to absorb and dissipate energy from the impact, thereby providing the material with system durability. This makes the use of A-TPU-modified PMMA applicable in materials that necessitate high-impact strength and low performance of the polymer at low temperatures.
Q: How does the concentration of TPU affect the properties of TPU-PMMA blends?
A: The final properties of a blend are significantly determined by the concentration of TPU in a TPU-PMMA blend. With a higher content of TPU in the blend, the opposite applies, whereby the blend becomes more flexible and has a higher impact strength. However, this may come at the expense of some of PMMA’s inherent properties, such as optical clarity or rigidity. This concentration may be optimal, considering that it provides a desired combination of properties for the specific application under which it is to be used; hence, a lot of work has been done or is being done to establish the best blending ratios for different applications.
Q: Which processing techniques can be employed for TPU-PMMA blends?
A: Injection and extrusion can form TPU-PMMA blends. The thermoplastics can be molded with regular processing machines. The selection of the processing method varies with the required end product and the particular make-up of the mixture. Molding will be preferred if complex geometries are to be produced. Extrusion would be used when continuous sections or sheets are required.
Q: In what ways does TPU enhance the scratch resistance of PMMA?
A: The incorporation of TPU into PMMA can affect its scratch behavior. Although PMMA has a relatively high scratch resistance, the incorporation of TPU is likely to change this property. Depending on the concentration of TPU and the specific formulation, the blend’s Scratch resistance may be lower overall than neat PMMA. However, compromise usually results in an increase in impact and flexibility, which are sometimes required concurrently in some applications.
Q: Are TPU-PMMA blends glass clear enough to use in see-through applications?
A: Yes, TPU-PMMA blends are ideal for use in transparent applications, especially when transparent TPU grades are used. PMMA is widely known for its very high transparency, and by an appropriate selection of the type and the amount of TPU used in the blend, relatively high openness of the blend can be attained. However, there will be a decline in the optical clarity of the blend as the TPU content increases over and above a threshold level in pure PMMA. Definite transparency will depend on the blend’s specific formulation and state processing.
Q: What are the uses of TPU-PMMA blends?
A: This polymer (thermoplastic polyurethanes-polymethyl methacrylate) blend exhibits outstanding performance as a filler in several industries. It is used to manufacture internal auto parts, including trims and panels, that require resistance to impacts and good durability. These blends are also employed in several fields, including housings for consumer electronics, sports, and medical apparatuses. Furthermore, they could also be employed in applications requiring good clarity, toughness, and chemical resistance, such as coating or specially designed packaging.
Reference Sources
1. Influence of Different Chemistries and Concentrations of TPU on the Cell Morphigens in Nanocellular PMMA-TPU Polymer Blends
- Author: I. Calderón
- Publication Year: 2019
- Citation: Calderón CP2019
- Summary: This article explores the formulation of nanocellular polymers by passing PMMA blended with TPU through TPU as a nucleate agent. The research demonstrates how modifications in the TPU content and the hard segment ratio in TPU influence the cellular configuration of the resulting materials. Some of the valid arguments are:
- Warm regions of the PMMA/TPU blends in which the cell edges are situated contained larger cells, while the core had smaller ones close to the nanometer size
- Higher concentrations of TPU correspond with a higher nucleation density and smaller cell sizes due to improved dispersion of TPU domains.
- An effective temperature of foaming these materials without altering their structural integrity was determined to range within 90 ºC. This was also shown in this study.

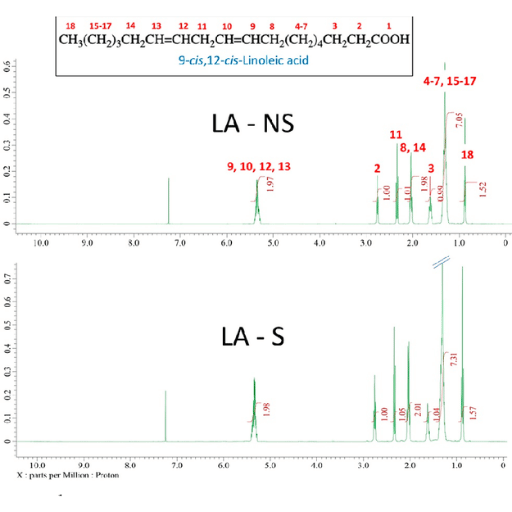

2. The Functional Properties of Linoleic Acid Enriched Low Modulus PMMA Bone Cement
- Authors: C Robo et al.
- Year of publication: 2021
- Citation: Robo et al., 2021
- Abstract: This paper deals with modifying the PMMA bone cement with linoleic acid to provide low-modulus PMMA alternatives. The prevalence of PMMA in medical applications, especially orthopedics, poses a significant concern. It observed that:
- The low modulus PMMA’s handling and mechanical properties were more appropriate for bone tissue with porosity associated with osteoporosis.
- Challenges associated with sterilization of the modified PMMA, as such could be perceived as, were assessed to this study and importantly no significant functional effects of sterilization were observed.
3. Use of a CCD camera-based non-contact method to perform strain measurement in a constitutive model for PMMA material
- Authors: X. Qian et al.
- Year of Publication: 2021
- Сitation: (Qian et al., 2021)
- Summary: The current article is concerned with the mechanical characteristics of PMMA polymer, especially concerning the working of the material in’ contactless’ strain measurement devices. It offers essential aspects of modeling the constitutive relationships for PMMA for engineering and materials science work. Important Point Findings are:
- The non-contact technique exhibited a rather good agreement with the results obtained by measuring strain more conventionally.
- This research presented a CPMMA nonlinear viscoelastic constitutive model which plays an important role in the application when PMMA is stressed.
Key Differences Between PMMA and TPU
Chemical Composition:Â
- PMMA is a tough polymer with a high UV transmittance and is amply clear, making it an excellent choice for applications where transparency and rigidity are other essential details.
- TPU is a soft elastomeric material that combines the properties of rubber and plastic, offering good elasticity, resistance to abrasion, and durability.
Mechanical Properties:
- TPU is comparatively less strong in stiffness and tensile strength than PMMA, which has made it the preferred choice for use in structural applications.
- Given its cushioning and impact resistance properties, TPU is always a better option in applications that require standard elasticity and resilience.
Applications:
- Due to its transparency qualities, PMMA is now widely employed in optical devices, medical devices, and as an alternative to glass.
- Given its properties, TPU is invariably employed in manufacturing footwear, automotive components and flexible tubing.
