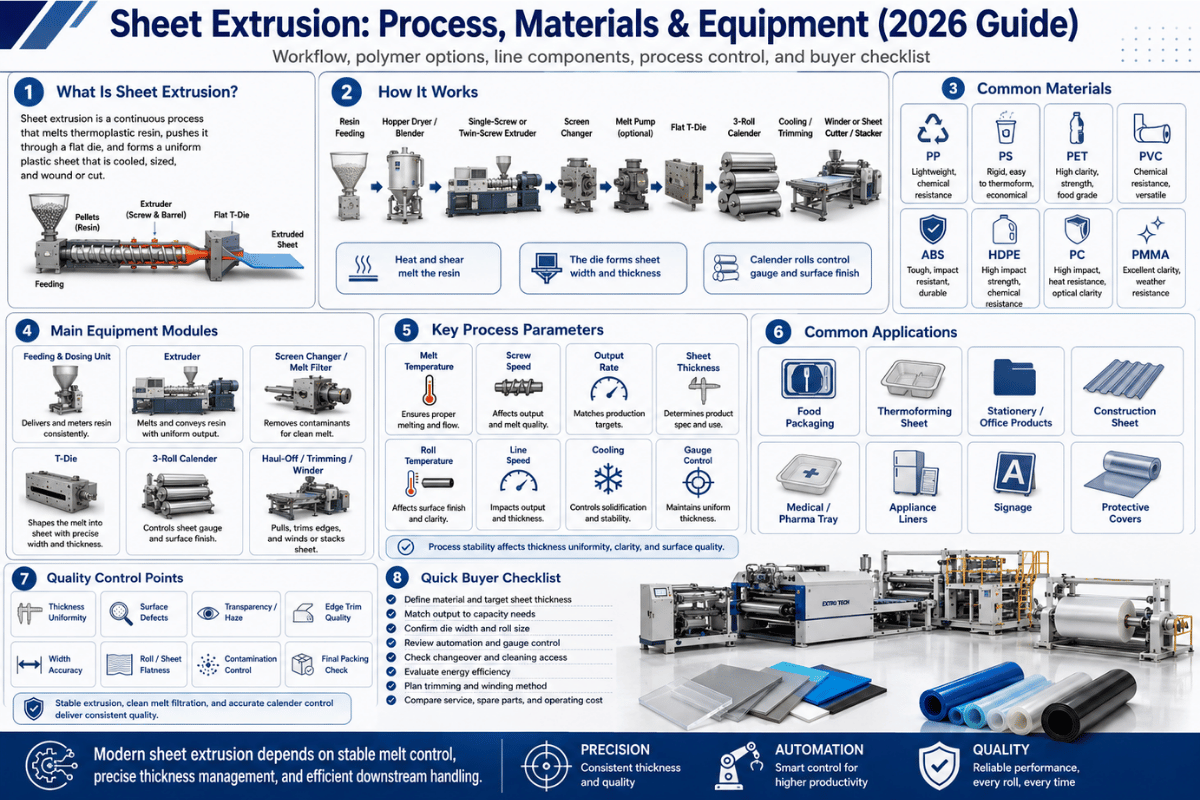

Sheet Extrusion: Process, Materials & Equipment (2026 Guide)

Sheet extrusion is the workhorse operation behind virtually all flat plastic panels, tray-style packaging, and rigid sheet that come out of modern plants. Whether you’re talking about a 0.5 mm PET food tray or a 12 mm polycarbonate skylight panel, the principle is similar: heat the resin, pressurize it into a flat die, cool it down with skilled rolls, and pull off a long, continuous sheet. A clean distinction lies in the resin chemistry, line layout, and level of dimensional accuracy required.

This document explains the process, materials, equipment, defects, and the 2026 outlook bringing a new perspective to plant purchasing decisions.

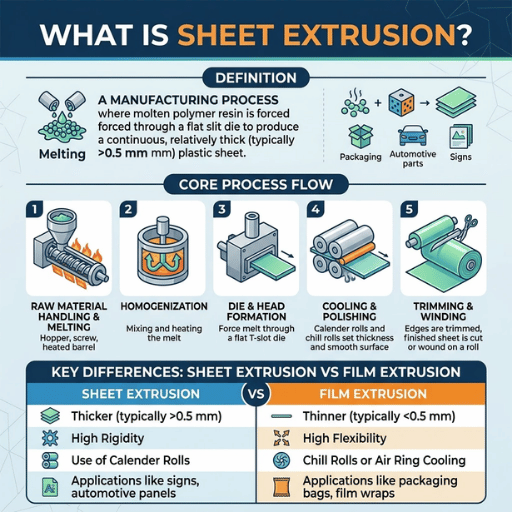

What Is Sheet Extrusion? Definition, Core Process, and How It Differs From Film Extrusion

Sheet extrusion is a dry processing technique used to continuously form thermoplastic sheet using consumable solid resin pellets. Resin is first melted and conveyed through a single or twin-screw extruder, then forced through a flat die to create a plastic sheet of specified width and thickness. Newly-formed sheet passes through a bank of cooled rolls to set the gauge and surface finish and then is slit, and cut into plates or wrapped onto a roll.

Resulting product appears simple. However, the process is not. Three variables – (1) melt temperature stability, (2) die flow uniformity, and (3) cooling roll geometry – determine if the sheet shipped is suitable for thermoforming a clamshell or must be marketed as a second-grade sheet.

The majority of quality problems discussed later in this guide can be traced to one or more of these three.

What Is the Major Difference Between Film and Sheet Extrusion?

Answered favorably by an ASTM standard. According to the ASTM D883 Standard Terminology Relating to Plastics, film is defined as “an elective term for sheeting having a nominal thickness not greater than 0.25 mm (0.010 in.).” All other sheeting would by the same industry standard be termed sheet. A curious point – “an elective term for sheeting”- places film as a subcategory of the broader term sheet.

In practice, the line equipment up to a change in line gauge. Thin gauge extrusion below 0.25 mm adopts cast or blown film process, with draw-down ratios and air water-chilled gas cooling. Flat sheet line over 0.25 mm adopts a polished three-roll stack to set the gauge against the cast-iron rolls., where the properties of rigidity, downstream thermoformed wrap and end-use classification (FDA, EU 10/2011) diverge is.

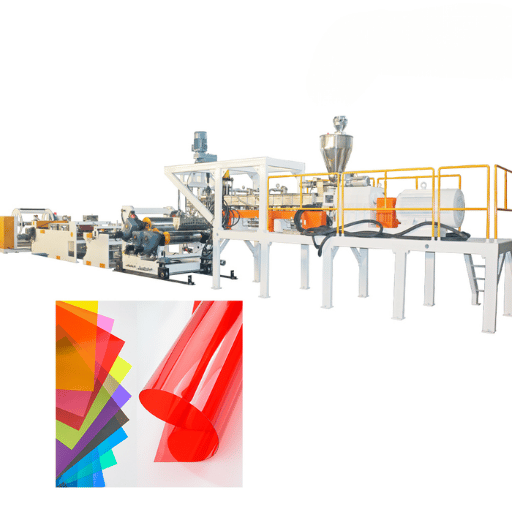

The 5-Step Sheet Extrusion Process Explained (Resin to Finished Sheet)

Almost all published process descriptions reduce to five steps. Names differ (+ or / indicate 1 or 2 steps combined): of, melting/from, conveying, cooling/calibration, arriving.

What Are the 5 Steps of the Sheet Extrusion Process?

1. Material feeding. Dried resin pellets, regrind, or recycled flake dump from a hopper into the feed throat of the extruder. Resin that is hygroscopic such as PET and PC must be dried prior to this; any residual moisture greater than about 50 ppm will cause hydrolytic degradation which no downstream filter can completely undo.
2. Melting and conveying. A rotating screw conveys the resin through a barrel usually constructed at an L/Dis ratio of 24:1 to 30:1 (see the Formolene polyethylene processing guide). External heaters set the zone temperature; shear action from the screw flights does the rest. By the time the polymer reaches the metering zone it exists as a single phase melt within the set processing window.
3. Pressure stabilization and shaping. A gear pump between the extruder and the die isolates die-side pressure fluctuations from screw-side surging. Molten resin then passes through a coat-hanger or T-die, where internal flow paths evenly distribute the material to the full width of the sheet. Parameters such as land length, lip convergence and lip-bolt setting determine the cross-direction profile.
4. Cooling and calibration. Molten plastic from the extruder enters the die. Here extrudate enters a three-roll stack. An initial chill roll receives the melt; the gap between that roll and the die lip determines initial thickness. Subsequent rolls create a smooth surface and bring the sheet through its solidification window. Dynisco’s Extrusion Processors Handbook notes that the die land width is usually about half the width of the final sheet, but slightly more for higher melt index resins.
5. Trimming and downstream processing. Edges are trimmed in order to remove the natural dimensional variation at the die deckle, then the sheet is either cut to length or unspooled on a turret winder. In-line thermoforming equipment can feed the warm sheet directly into a forming station; a second reheat step is thus eliminated.

Material Selection: PVC, PE, PP, PET, ABS, HDPE, and Polycarbonate

Material selection across the variety of materials available ultimately controls all subsequent parameters — barrel set points, screw geometry, roll surface textures, and maximum line speed at which clarity and impact properties begin to break down. Seven common plastic materials listed below encompass the majority of commercial plastics sheet extrusion. Temperature ranges listed below are either from the manufacturer line settings, or from a peer-reviewed study of the effect of screw speed on PP, HDPE and PET (MDPI Sci 2026).

Very seldom will a choice between two candidate resins hinge on the properties alone. One grade of the right modulus may carry a 30% premium compared to an alternative once the additional dryer energy and scrap cost are considered. A fair response is: try out the resin you will actually run a few feet of on the production line you will use, from the specified batch you will actually buy. Your data sheet provides a starting formula, not the final result.

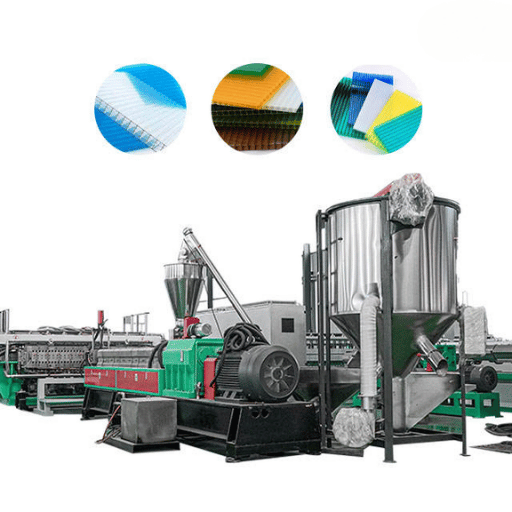

Sheet Extrusion Line Configuration: Components and Equipment

Modern extrusion systems for sheet production are built from seven sub-systems, all optimized to the resin and target gauge. Omitting any one is possible, but it almost always results in shifting the fault away from that omitted subsystem.

• •
  Single- or twin-screw extruder. The melting heart. Single-screw handles virgin resin; twin-screw is preferred for compounding, regrind, and high-filler grades. L/D 24:1 to 30:1 covers most sheet work.
• •
  Screen changer. Captures contamination before the gear pump. Continuous screen changers eliminate the production interruption of plate-style units — relevant when running PCR streams.
• ✔
  Gear pump (melt pump). Decouples die-side pressure from extruder output. A single highest-impact upgrade for thin-gauge sheet, and the easiest to retrofit.
• ✔
  Static mixer (optional). Homogenizes melt temperature and color before the die. Mandatory in masterbatch dosing or co-extrusion lines.
• ✔
  Sheet die. Coat-hanger geometry is the default; T-die and dual-flex dies are used for narrow-width or co-extrusion work. Lip-bolt resolution determines how finely you can correct CD profile.
• ✔
  Three-roll calibration stack. Down-stack, up-stack, J-stack, or vertical configurations exist; the best choice depends on the sheet temperature window and downstream layout. Rolls have a slight crown to compensate for deflection under load.
• ✔
  Haul-off, edge trim, and winder/cutter. Servo-driven haul-offs close the loop with the gauge sensor; a slow puller reading thick gauge speeds up automatically. Edge trim recovery (in-line grind-and-feed) reduces virgin resin demand.

Throughput by extruder size and screw speed. Lab and pilot lines run about 30kg/h; the usual PP/PET food packaging production line runs in the 200–800kg/h range; high-speed PET thermoforming sheet lines of 900–1,200kg/h are not uncommon for multi-extruder feed and high-torque drives. Selection of extrusion equipment to deliver new sheet program almost always begins with the volume target and partitions back through screw size, gear pump capacity, and die width.

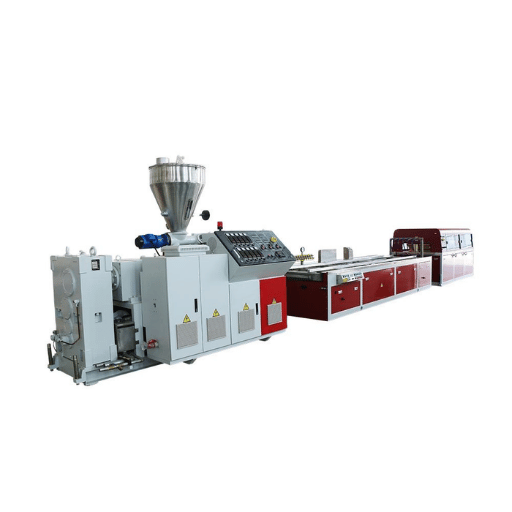

Critical Process Parameters: Temperature, Pressure, and Cooling Rate Control

Three closed loops decide whether a line ships premium, prime, or scrap end product: melt temperature stability, melt pressure stability, and cooling system control. Each has a known target range, and each is feasible with today’s commodity hardware.

• ✔
  Melt temperature: hold within ±2 °C of setpoint per zone. Even a 2–3 °C shift moves polymer viscosity enough to show in MD thickness. Multi-zone PID with independent air or water cooling is the standard answer.
• ✔
  Melt pressure: gear pump cuts surge to a fraction of bare-extruder values. The exact reduction depends on screw design and feed consistency, but the pump-fed sheet is what makes ±0.5% gauge profile possible.
• ✔
  Cooling system rate: roll surface temperature controls crystallinity. A practitioner discussing PP cooling on the r/plastic forum captured it cleanly: “Higher temperature means lower cooling rate and therefore lower crystallinity,” which directly affects modulus and surface gloss in semi-crystalline resins.

What Role Does Temperature Control Play in Sheet Extrusion?

Temperature acts as the master variable. It determines the melt viscosity (and hence melt pressure), controls cooling rate (and therefore crystallinity and warpage), and ensures stable dwell-time without degradation of heat-sensitive resins. Advanced lines operate multi-zone barrel control with 1 C resolution, implement deckle-zone die electric heaters which offset pressure loss across the die, and embed individually-controlled chill rolls so sheet enters and leaves the stack at a specific temperature profile rather than a random one.

Thickness control completes the loop. A non-contact gauge — beta-gauge for absolute mass measurement, X-ray or infra-red for relative measurement — traverses the sheet width, supplies a profile to the controller, and adjusts the lip-bolt actuators in real time. The SPE Extrusion Division gauge control reference recommends an averaged profile accurate to 0.5% or better, and good automatic gauge control (AGC) systems can achieve this with no operator intervention. Gauge gain is proportional: a 1% improvement in gauge uniformity on a 600 kg/h line translates to approximately 6 kg/h of resin you are no longer paying to ship.

Industry Applications: Packaging, Automotive, Construction, Medical

Extruded plastic sheets are then channeled into four end-markets that collectively shoulder most of the plastic flat-stock production. Sheet extrusion applications cluster heavily into the categories below.

Figure 1 under normal circumstances, this is what it really looks like when you step back. Outside of the macro picture, this enters the equation when dimensioning capacity. According to Grand View Research, the global market for extruded plastics will grow at 3.9% CAGR from 2024 to 2030, hitting USD 221.18 billion. Different end-market drivers will fuel unequal growth, with rigid food packaging forms leading the plastics demand on product volume growth from e-commerce and ready-meal pack formats.

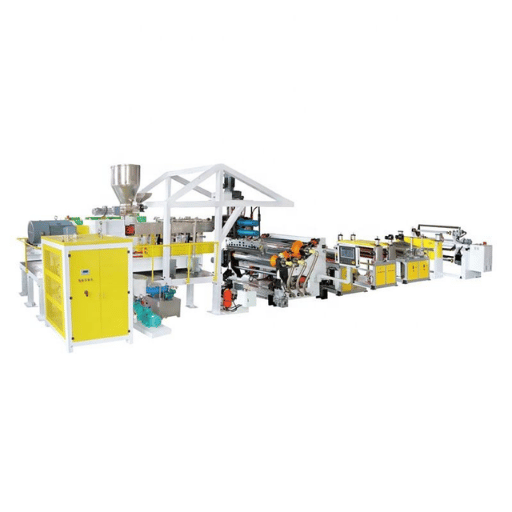

Sheet Extrusion vs. Calendering vs. Injection Molding: When to Choose Each

Three processes share overlap in some applications, and near-total separation in others. Practical advantages of sheet extrusion show up in specific volume and gauge bands rather than across the board. An accurate comparison is not A versus B, but whichever process is defeated by the other at a given combination of volume, gauge, and material.

Common Defects and Troubleshooting: Warp, Thickness Variation, Surface Issues

Defects categories in sheet extrusion tend to bunch around five recurring failure modes. Each has a dominant cause & a workable first-pass fix, before tearing into the line.

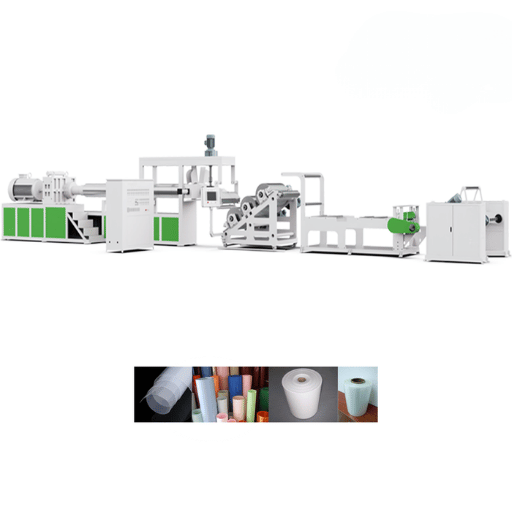

Co-Extrusion: Multi-Layer Sheets for Barrier and Premium Applications

Single-material sheet becomes a problem when an end-use asks for two incompatible properties simultaneously: optical clarity & oxygen barrier, or printable surface & food contact. Co-extrusion abuts incompatible layers, stacking from separate extruders through a feedblock/ multi-manifold die into a single laminated sheet.

Popular stack architectures are AB (two layers), ABA (sandwich with monometrical skin on each side), ABABA (five layer with a center barrier resin & symmetric tie layers). Food-packaging-grade lines routinely produce 5- & 7-layer stacks of PA, EVOH, PP, PE & tie resins; nine-layer coextrusions have been well documented in academia & scale far beyond the needs of most plants in practice.

“EVOH’s oxygen scavenging ability incurs a moisture-sensitivity penalty. Sandwiching it between non-hydrophonic PE or PP layers in a coextruded structure bushit the barrier. That hence is why EVOH is almost entirely sacrificed on the middle in food packaging sheet, never to be seen on the skin.”

Cost is a non-proportional function of layer count- feedblocks scale, dies do not. Moving from three-layer to 5 Layer might incur a die rebuild, builders live with layer count once there.

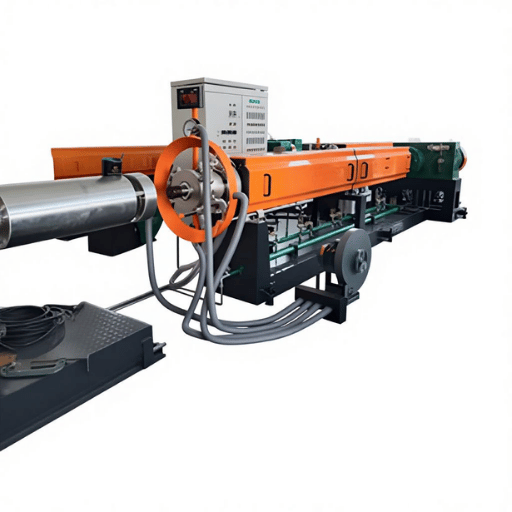

The Future of Sheet Extrusion: rPET, Bioplastics, and Industry 4.0 Monitoring

There are three forces shuffling what and how plants buy. No, none of three are speculative- each one affects quotes already made in 2026.

1. How far can food contact recycled PET go? The FDA recycled plastics in food packaging guidance guides stream processors through the No Objection Letter (LNO) procedure needed to approve one or another post-consumer recycled material; building on the polymer authorizations in 21 CFR Part 177. Realistically, 100% rPET sheet for food trays can happen now- run from food contact bottles or otherwise containing safe-outlined scrap, & maintain an LNO canister complete: failure modes have been quantified (level of contamination, &able to be washed out). We of course will see brand-owner specs demanding 50% rPET in 2026.

2. Bio-based and compostable resins become operational. PLA, PBAT, PHA and PVA are no longer R&DM; curiosity. Process windows run narrower than petrochemical equivalents and usually require profile tuning—lower barrel temps, gentle cooling, possibly a different screw design. Plants capable of converting petroleum and bio-based grades on one set of equipment will out-flex single-stream lines as customer demands change.

3. Industry 4.0 closes the loop end-to-end. Factory combines multi-zone PID control, gear pump pressure feedback, AGC scanning, and SCADA-level data logging generates a line that responds to events within drift bands without waiting for operator intervention. Condition monitoring—via motor current, gearbox vibration, and barrel heater duty cycle—is transitioning from supplier-specific feature lists to standard purchase specs. Industry market research group Mordor Intelligence estimates the overall plastic processing machinery market at USD 34.72 billion in 2026 with a 4.53% CAGR through 2031, with smart-line revenue growing faster than the headline number.

If you’re quoting a new line for a 2026-2027 delivery date, practical takeaways are simple: inquire of vendors how the line qualifies 100% rPET feedstock, what grades of bio-based resin they have tested, and what data they log. Answers indicate whether you are requesting a 2026 line or a converted 2018 line.
