Unveiling the World of Paper Mill Equipment for Efficient Pulp and Paper Making

The pulp and paper industry is pivotal in driving modern life, powering activities like publishing and providing packaging solutions. In this industrious sector, a sophisticated array of paper mill equipment is used to convert raw materials into high-quality paper products with great precision and efficiency. This article explores the intricacies of paper mill machinery and its productivity-increasing technologies, innovations, and processes. From professionals and business owners to the simply curious, this guide unveils the essential machinery that sustains one of the world’s most fundamental industries – the sheer volume of paper produced is astounding. This guide sheds critical insights concerning the mechanisms, their interrelation with merit, and the balance between production, efficiency, and sustainability.

What is the Role of Pulp in Paper Manufacturing?

Pulp serves as the primary raw material utilized in papermaking processes. It is made from cellulose fibers, obtained from timber, used papers, or plant materials. It is possible to produce different types of documents using pulp as it is a chief source of structural fibers that form the sheets. Pulp is obtained after cleaning, refining, and bleaching to achieve the desired quality, strength, and appearance results. Processing and composing these materials directly affect the final results regarding the paper’s texture, strength, and function. Hence, it is essential for the manufacturing process.

Understanding the Pulp Production Process

Paper pulp production entails several vital stages that involve acquiring raw materials like wood and recycled paper, transforming them into usable pulp for paper manufacturing. In the first stage, appropriate raw materials like wood or recycled paper go through either mechanical or chemical separation for fiber retrieval. Wood has to undergo mechanical grinding, while chemical methods utilize sodium hydroxide and other components to digest lignin and other elements from different types of pulp. It is then washed with other processes such as refinement and bleaching to improve its purity, and then whitening. A myriad of versatility characterizes the output, ready for transformation into different types of paper tailored through a series of adjustments to meet desired specifications for specific applications.

The Importance of Fiber in Pulp Quality

The quality of fibers will always influence the performance and characteristics of pulps in papermaking. Regarding pulp or paper production, the fibers’ length, diameter, and flexibility contribute significantly towards the resultant paper’s strength, smoothness, and formation. For instance, softwood fibers are longer and more durable than hardwood. Thus, they enhance tear resistance and tensile strength. On the contrary, hardwood fibers are shorter and smoother than softwood; therefore, they are preferred for enhancing the surface and improving printability.

Focused research has indicated that pulp production techniques and fiber dimensions can be manipulated to produce specialized end products. High-yield pulps complemented with biorefinery techniques focus on strengthening pulps and fibers while implementing eco-friendly measures. Evidence gathered from mill operations shows that an increase of 5% in fiber length variability reduces mechanical strength, supporting the argument for precise raw material selection and processing. Such meticulous fabrication guarantees successful production while assuring the end product meets the enhanced industrial and consumer standards.

How Wood Pulp is Converted into Paper Products

The production of paper goods starts with the deft conversion of wood pulp and requires careful refinement of raw materials in distinct steps. To begin, wood pulp is either mechanically treated or chemically treated to obtain a slurry of cellulose fibers and water, which is usually fetched from the pulp bales. This slurry is cleaned and refined to enhance the fiber strands’ strength and consistency and remove undesired substances. Then, the slurry is spread over a moving screen from where the excess water is drained, and fibers begin to undergo bonding. A sheet is formed, which, after pressing, removes more water and ensures uniform thickness. Afterward, the sheet residue undergoes drying and cutting, after which the necessary treatments are applied to obtain the desired paper quality. Achieving the desired results for any of these stages greatly relies on how much effort is channeled into controlling precision, especially regarding quality and efficiency.

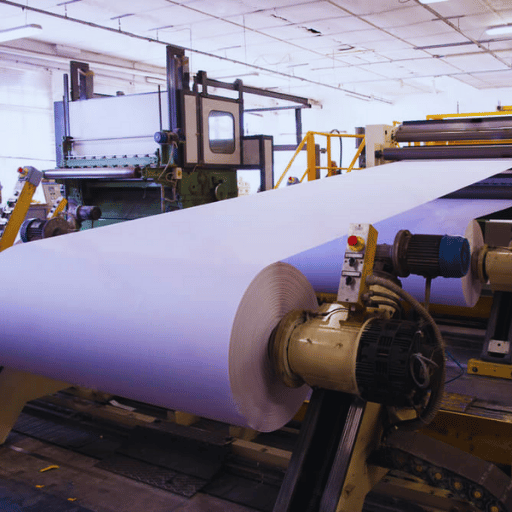

How Does Paper Mill Equipment Function?

Key Components of a Paper Machine

Process Stages in Paper Making

1. Pulp Preparation: Chemical or mechanical methods are used to obtain wood or recycled paper. This step prepares the fibers for formation.
2. Forming: During this phase, the pulp is mixed with water to dilute it, then spread on a moving wire screen to create a continuous sheet. Any excess water is removed, resulting in a wet fiber mat.
3. Pressing: The wet fiber mat is strengthened into a single sheet through pressing rollers, which removes any additional moisture.
4. Drying: The moisture content of the pressed sheet is reduced by heating cylinders.
5. Finishing: The dried sheet is treated with calendering, which improves the smoothness and adds strength, making it printable.
6. Reeling: Finally, the paper is transformed into large rolls, stored for shipping or advanced processing.

Role of Process Equipment in a Paper Mill

Process equipment is pivotal for maintaining optimal productivity, quality, and sustainability in a paper mill. Specific process equipment, like refiners, headboxes, presses, and dryers, is interdependent in streamlining the production cycle. Modern refiners, for example, focus on improving fibrillation of the fiber so that the bonding strength of cellulose fibers is maximized and the energy expenditure is minimized. Modern headboxes incorporate flow and consistency control for the pulp to maintain equilibrium, resulting in uniform sheets. Moreover, the state-of-the-art press sections equipped with shoe presses can increase dryness levels while lowering the mechanical strain on the sheet, saving energy in the subsequent drying phase.

Energy efficiency and environmental considerations are gaining importance within paper mills. The implementation of innovative steam recovery systems and high-efficiency drying cylinders serves to lower energy consumption. Some paper mills have adopted advanced monitoring systems to track equipment performance in real time, which reduces idle time, ensuring maintenance activities are performed promptly. These systems are estimated to reduce energy cost by 20% while increasing production by 15%, as industry data claims, showcasing the value of investing in modern equipment for process optimization.

What are the Different Types of Paper-Making Machinery?

Understanding the Fourdrinier Machine

The Fourdrinier is one of the most popular machines in the paper production industry. It works by transforming a pulp-water slurry into a continuous sheet of paper. The process begins with pouring the slurry onto a moving screen mesh belt. Water is filtered out through the mesh, resulting in the formation of a fiber matrix. This fiber mat undergoes pressing and drying in rollers, which further heats the paper to produce the white sheet of paper. Fourdrinier machines are highly regarded for their effectiveness and capability of generating a significant amount of good-quality paper with consistent thickness.

An Overview of Calendar and Dryer Sections

A paper machine’s calender and dryer sections are essential to shaping the properties of the paper product. The calendar section’s key function is to enhance surface qualities such as smoothness, gloss, and caliper uniformity by sending the dried paper through rollers at specific pressures and temperatures. Modern calendering systems often use soft-nip or supercalender designs, which help increase the paper’s printability and surface quality.

On the other hand, the dryer section performs the vital function of eliminating excess moisture rib after rough pressing. A series of steam-heated drying cylinders is arranged in series to make up this section. The paper web is guided accurately over these heated cylindrical dryers. Conduction of heat to the sheet makes it possible to achieve the desired moisture content of 2-6% for different paper grades. Tension control systems and felt rolls stabilize the paper to prevent the sheet from shrinking, tearing, or becoming damaged during the drying cycle. Efficient dryer systems help optimize energy, and the most recent advancements now include heat recovery systems and thermal efficiency improvements.

In conjunction, the calendar and dryer sections complete the final process of drying the paper to confirm that it acquires its desired physical parameters, such as textural strength, surface polish, and moisture equilibrium. These components are, therefore, essential in the production of good-quality paper.

Innovations in Corrugate Paper Manufacturing

Recent improvements in the manufacturing of corrugate paper align with the use of cotton and linen to achieve sustainability, efficiency, and product quality. Fiber-based raw materials and water-efficient paper processes have become commonplace due to lower environmental consequences. The precision and efficiency offered by automation and artificial intelligence (AI) are now used to reduce waste and improve production speeds. There is also the use of filler to conserve materials while maintaining the strength and durability of paper. These advancements respond to societal, environmental, and economic needs, establishing the new benchmarks in the corrugated paper industry.

How is Recycling Incorporated in the Paper-Making Process?

Utilizing Waste Paper as a Raw Material

Adopting recycling waste paper facilitates sustainable paper production by decreasing the consumption of virgin materials. The paper industry can save paper and reduce environmental harm by using collected paper. Approximately 65% of the total fiber used in global paper production is from recycled fibers. Waste paper is converted to usable chips via pulping and de-inking, which can then be blended with virgin pulp or utilized alone according to the end product specifications.

Innovative technology dealing with screening and cleaning helps eliminate contaminants such as plastics, inks, and adhesives during recycling. The use of recycled fibers lowers energy consumption significantly. It takes up to 40% less energy to produce paper with recycled fibers than wood pulp. In addition, recycling helps preserve water, decreases greenhouse gas emissions, and works toward minimizing the industrial environmental footprint, which is beneficial worldwide. All of these practices demonstrate the importance of waste paper recycling toward establishing a circular economy in the paper industry.

The Deinking and Bleach Process

The deinking and bleaching process involves the separation of inks and other adhesives from a sheet of recycled paper to produce a clear pulp that can be reused. Deinking is usually achieved by chemical and mechanical flotation methods, where air bubbles capture and lift the ink particles to the surface. The subsequent step is the bleaching, which increases the brightness and whiteness of the pulp, using environmentally friendly chemicals like hydrogen peroxide. These steps are essential in enabling the recycled paper to be of high quality and still meet the required standards of the environment.

Advantages of Recycled Paper in the Pulp and Paper Industry

Recycled paper has several critical advantages in the pulp and paper industry. Initially, it dramatically decreases the requirement for new wood fiber, aiding in conserving the forests and fostering sustainable resource use. In addition, the recycling procedure uses less energy and water than producing paper towels from raw materials, making it more efficient from an environmental perspective. Furthermore, it reduces the amount of paper waste in landfills, which assists in lowering greenhouse gas emissions from waste decay. Finally, using recycled paper complies with legal requirements and fulfills consumers’ expectations, improving the industry’s environmental responsibility and competitiveness.

What Challenges Exist in the Paper Mill Industry?

Addressing Contaminants in Pulp and Paper Production

Solving the problem of contaminants in pulp and paper production is particularly challenging due to the diverse range of materials and processes used. Contaminants such as plastics, adhesives, ink, and other non-cellulosic substances can lower the quality of the final paper product and cause operational inefficiencies in the manufacturing system. Also, stuck residues from coatings and adhesives (stickies) can deposit on machinery, increasing maintenance costs due to equipment downtime.

Integrated production systems, innovative technologies, and complete quality control methods have been applied to solve these problems in manufacturing paper towels. Early removal of contaminants is crucial, making advanced fine-screening equipment necessary. Also, enzyme-based treatments are more common in eliminating organic pollutants because they do so without introducing harmful chemicals, thus aligning with sustainability initiatives.

Data from industry reports shows that proper contaminant management increases pulp yield by 10-15% and reduces machine downtime by 20%. Also, as the American Forest & Paper Association reports, large paper mills could save millions of dollars in production losses with improved contaminant filtration methods. These improvements demonstrate the need to combine technical advances with strict production regulations to achieve environmental and production efficiency.

Maintaining Efficiency in Machinery and Equipment

Routine maintenance, which includes inspections, cleaning, and lubrication, should be done regularly to ensure efficiency for various machines and equipment. Along with basic maintenance, predictive maintenance techniques like vibration analysis and thermal imaging can also help determine future problems that can cause a machine to fail. Proper training minimizes operational mistakes, which improves overall efficiency in equipment lifespan. Research suggests the described practices significantly improve performance and reduce interruptions and repair costs.

The Impact of Raw Materials Quality on Paper Products

The quality of the raw materials directly influences the strength, texture, and consistency of paper products. Recycled fibers with low contaminant levels and well-processed wood pulp are examples of high-grade raw materials that result in superior end products crafted with uniform qualities. On the other hand, low-grade materials can result in numerous defects, including inconsistent thickness, lower tensile strength, and uneven absorption. Adhering to rigorously sourced and processed raw materials is crucial to maintaining dependability and industry benchmarks in paper manufacturing.

Frequently Asked Questions (FAQs)

Q: What are the main parts of a paper-making machine?

A: The major constituents of a paper-making machine are its headbox, forming section, press section, and dryer section. Each component is crucial in transforming a slurry of cellulose fibers into a robust sheet of paper.

Q: Describe the function of a pulper in a pulp and paper mill.

A: A pulper is a piece of papermaking machinery that disintegrates raw materials such as wood pulp fibers and uses them to make paper into a slurry. Separating cellulose fibers eliminates contaminants like ink and adhesive, which hinders papermaking.

Q: What is the importance of a refiner to the paper manufacturing process?

A: A special mechanical unit that treats the stock is referred to as a refiner and is very important for stock preparation. By improving the structure of the fibers, refiners treat the paper to increase the potential bonding and the general quality, which is vital for the integrated manufacturing system.

Q: Why is the headbox important in a paper-making machine?

A: The headbox is essential in the wet end of a paper-making machine because it provides the fiber slurry to the forming section with as little turbulence as possible. It is also necessary for maintaining consistency and critical for uniform flow and distribution in paper sheet manufacturing.

Q: What are the required safety measures for a Pulp and Paper Mill Equipment Operation?

A: Safety has always been challenging for operators handling paper machinery or equipment. Operators must comply with set standards, wear PPE (personal protective equipment), and keep up with scheduled refresher training sessions on chemical handling and safety procedures and operating equipment such as pulpers and digesters.

Q: What is the use of the centrifugal process in papermaking?

A: The centrifugal process removes unwanted particles from the paper stock by leveraging centrifugal force. This process is essential for quality control because it prevents unwanted particles from being incorporated into the paper.

Q: Discuss the role of additives in the papermaking process.

A: Additives in the papermaking process are intended to improve the overall quality of the paper product. Their role includes, but is not limited to, increasing their strength, brightness, and resistance to water and assisting in de-inking and flotation for recycled paper.

Q: How does the forming section help in the paper production process?

A: The forming section is the part of the process in which the dilute slurry begins to take shape as a sheet. Due to a combination of hydrodynamics and gravity at this stage of paper making, some water is removed, and the cellulose fibers can bond to form the paper sheet.

Q: What distinguishes pulping machinery treatment mechanically and chemically?

A: The chemical pulping method is more advanced, as it uses chemicals to remove lignin from the cellulose bonds, thus yielding better-quality paper with greater strength. On the contrary, mechanical pulping simply uses brute force to shred the fibers, which makes it cheaper, but the paper is weaker and less durable.

Q: What role does the press section play in the overall productivity of a paper-making machine?

A: The press section is responsible for removing excessive moisture content from the wet paper sheet. It has to increase the pressure through a series of rolls, which lessens the moisture content, making it easier to dry and, therefore, more energy efficient, while achieving the intended thickness and finish of the paper.
