The introduction of fiber laser machines has changed the realm of engraving for its precision, efficiency, and versatility, which traditional methods lack. Whether you are a hobby engraver who personalizes items or a professional looking for solutions to industrial-grade applications, being able to engrave with a fiber laser machine unlocks a world of possibilities. In this article, we examine the broad list of materials compatible with these sophisticated machines, analyzing each in terms of their distinct properties and engravability. By the end, you will understand how fiber laser technology interacts with different surfaces and will be able to confidently decide on the material for your next project.

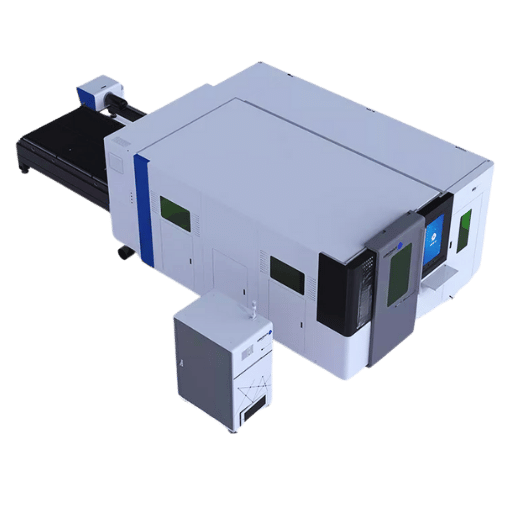

What is a fiber laser, and how does it work?
A fiber laser is a unique type of laser that employs an optical fiber doped with rare earth elements like ytterbium, erbium, or neodymium. The lasing process starts from a pump source, which is usually a laser diode. The diode injects energy into the fiber, and this energy excites the doped elements, resulting in light amplification in the fiber core. The end result is a laser beam with exceptional precision, stability, and efficiency. Fiber lasers are remarkably useful in industrial applications because of their capability to work on a range of materials with low maintenance and reduced operating costs. In addition, they have a reliable performance because of their robust design, which also gives them a long lifespan.
Understanding fiber laser technology
The workings of fiber laser technology encompass the sending of light via a fiber-optic cable that has been doped with either erbium or ytterbium. This construction allows the laser to emit a finely machined, powerful beam that is suitable for precision tasks like engraving, welding, and cutting. The direct amplification of light within the fiber assures performance dependability across diverse industrial applications, so the efficiency and stability of the fiber laser technology is derived from this feature. The practical efficiency with which a multitude of materials can be processed makes fiber lasers notable due to their compact configuration and low-maintenance needs.
How does the laser beam interact with materials?
A laser beam striking a material transfers energy through photons, which are absorbed at the material’s surface. Such absorption leads to rapid and localized temperature increases, which may cause physical or chemical changes based on the material’s properties and the parameters of the laser. Potential interactions include melting, vaporization, ablation, or even plasma formation. For example, when cutting or engraving metals, a focused laser beam raises the temperature of the surface to its melting or boiling point so that the metal can be removed with precision.
The interaction of laser and material is effective depending on the laser’s wavelength, power, and pulse duration. For high-precision work, ultrafast pulsed lasers –with pulse durations in the femtosecond range—are the clearest options since they create minimal heat-affected zones. Also, certain wavelengths, like 1,064 nm for fiber lasers, are efficiently absorbed by metals such as steel, aluminum, or copper, meaning the absorption characteristics enhance efficiency.
Recent developments have revealed that the material thickness and reflectivity have a profound effect on the interaction. For example, steel as thick as 10 mm can be cut with remarkable precision using high-power continuous wave (CW) lasers above 500 W. On the other hand, highly reflective materials like gold or silver require modifications such as anti-reflective coatings or precision beam delivery systems to maintain consistent outcomes. These innovations show the application of lasers in industry, from the micro-processing of fragile electronic components to heavy-duty fabrication work.
Comparing fiber laser with CO2 laser
In industrial applications, fiber lasers and CO2 lasers are the two primary technologies with distinct features that make each of them fit for particular functions. The wavelength range of fiber lasers is about 1 µm, which is perfect for cutting and engraving metals since the reflected surfaces, such as aluminum and copper, have good absorption at that wavelength. Furthermore, fiber lasers are known for their compact design, which incorporates the laser source into one unit, achieving a compact form, as well as high energy efficiency—often exceeding 30%. Other advantages include low maintenance due to the solid-state construction, which leads to a longer lifespan and higher reliability.
On the other hand, CO2 lasers operate at a far-infrared wavelength of approximately 10.6 µm, where they excel at processing non-metallic materials, such as wood, acrylic, plastics, and textiles. The challenge with CO2 lasers is dealing with highly reflective metals, which require additional modifications or auxiliary systems. CO2 lasers usually attain energy efficiencies between 10 – 20 percent, and due to the gas mixtures as well as intricate optical elements such as mirrors and lenses, more intensive maintenance is required.
In cutting speed and precision, fiber lasers usually outperform CO2 lasers with thin to mid-thickness metals, as the former take less time to process and produce cleaner cuts. For example, fiber lasers can cut stainless steel up to 3 mm thick 2-3 times faster than CO2 lasers. Meanwhile, CO2 lasers are more popular for thick non-metals, where they can achieve smooth and polished edges, taking advantage of their wider wavelength. In addition, fiber lasers are more economical due to their greater energy efficiency and the absence of consumable parts like gas mixtures. This lowers the operational costs and increases the benefits of using fiber lasers in large-scale production systems.
As for these two technologies, the choice ultimately depends upon the specific material and thickness along with the requirements of the application, defining the practical need to tailor the type of laser to the industrial process.
Which materials are suitable for fiber laser marking?
Marking metal materials with a fiber laser
Widely practiced today, fiber laser marking is renowned for its precision and ability to mark metal materials like stainless steel, aluminum, brass, copper, titanium, and alloys. Fiber lasers are capable of fulfilling the industrial requirements with their unparalleled precision by creating clear and defined markings using a focused, high-intensity laser beam without the need of additional materials.
In many industries, such as automotive and medical devices, stainless steel is a prime example of frequently used meta. Fiber laser marking is able to engrave serial numbers, logos, and barcodes alongside deep engravings. Fiber lasers are known to achieve a typical marking speed of over 7000 mm/s, which guarantees productivity even in highly demanding environments.
In high end techs, aluminum is very popular due to its use in electronics and aerospace; however marking fiber lasers make it more appealing as they can absorb the wavelength. Moreover, processes like anodized aluminum marking can create highly accurate and contrasting results, which are perfect for functional labeling or graphical designs.
Copper and brass metals have high conductivity and reflectivity and may be a challenge for some traditional systems. With fiber lasers possessing the right parameters, such as pulse modulation and beam power, marking is remarkably straightforward. Reflective metal marking has now also benefitted from MOPA (Master Oscillator Power Amplifier) technology, where greater control of pulse duration and finish quality is accomplished.
Fiber laser marking is suitable for marking applications in regulated industries because it supports compliance with traceability standards. Hence, it masterfully ensures long-lasting durability. Marking and engraving processes can be optimized efficiently for each specific material and application by adjusting the power, frequency, and marking speed, which allows manufacturers to meet their specific requirements. This versatility makes fiber laser technology preferred for marking metal materials across numerous industries.
Can you engrave wood with a fiber laser machine?
Although fiber laser machines can engrave wood, the results are quite different from CO2 lasers, which are better suited for organic materials like wood. Unlike fiber lasers, which engrave and mark metals, with the right modifications, some softer woods can be effectively engraved, though denser woods like hardwoods will yield better results.
Concerning a fiber laser, the engraver’s wavelength, power settings, and the speed at which it engraves are paramount. Since fiber lasers work at a 1064 nanometer wavelength, they may need to work with denser wood to achieve the engraving definition and clarity desired due to heightened energy levels being required. So, to avoid over-burning the appearance, losing detail, or muzzling the aesthetic grace of the inscription or design, it helps to have tight command of power and speed controls. It is also important to keep in mind that the higher intensity produced due to sharp focus and heat associated with fiber lasers will only further damage the engraving.
Research and practical analysis depict the best outcomes being achieved when using fiber laser machines with adjustable pulse frequencies. For example, lower frequencies enable deeper engraving, while higher frequencies allow for precision engraving. Businesses that infrequently employ a fiber laser for wood processing tend to concentrate on branding or intricate design engraving, especially for items constructed from composite materials such as wood and metal.
Exploring plastic and carbon fiber marking
Marking on polymer materials and carbon fiber demands an individualized level of care because the marks must cut deep into the materials. There are hurdles to overcome, especially with plastics that have different compositions and properties. For example, CO2 lasers offer distinct markings on polycarbonate and ABS plastics, however, softer plastics pose a challenge, requiring precision in power settings to avoid melting or damaging the surface. CO2 laser also marks clear, high-contrast markings to plastics. A recent study emphasized plastics that are more sensitive to heat, as their shorter wavelenghts do not produce as much thermal stress, prefer UV lasers as they create crisp and long lasting marks.
Likewise, carbon fiber marking has its drawbacks, primarily due to the materials’ compositeness. This task is commonly done with the aid of fiber lasers because they efficiently mark and engrave carbon fiber, yielding high resolution and contrast results while maintaining the integrity of the structure during the laser marking and engraving process. Evidence from industrial applications suggests that a pulse frequency of 25-50 kHz achieves these objectives best since discoloration or fraying of the fibers is kept to a minimum. Carbon fiber has extensive applications in the aerospace and automotive industries, which require the marked components to be permanently marked for traceability and compliance. Having complete control of the laser system and parameters allows achieving expert results without damaging the material.

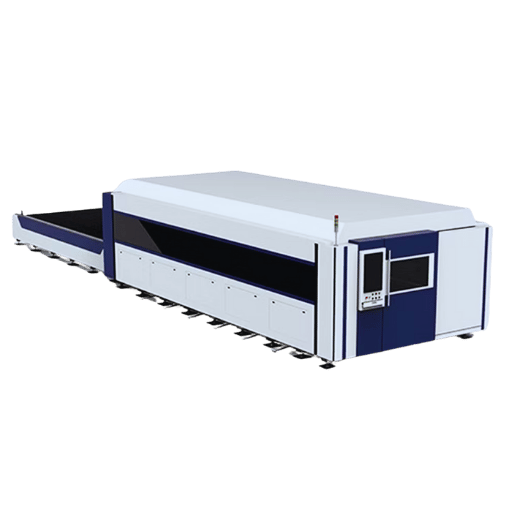

What are the best laser settings for different materials?
Adjusting laser power and marking speed
High-quality and precise engravings across various materials require careful optimization of laser power and marking speed. Depth, clarity, and the overall quality of the mark are achieved through the interplay of these two parameters. For fiber lasers, 40-60 watts of power coupled with moderate to slow speeds of 200-300 mm/s for the laser’s movements provides the necessary warmth for stainless steel engravings while preserving material integrity.
For plastics, lower power settings are essential to avoid warping or discoloration. From our experiments, power settings of 10-20 watts with laser marking speeds above 500 mm/s tend to provide the most legible and smooth results. Softer materials like wood are less forgiving and require more precise setting; power should be around 15-30 watts, while marking speed should be around 400-600 mm/s to prevent burning while achieving sharp patterns.
Precision tailoring of the parameters to the properties of the material helps the laser systems achieve the ability to repeat precision-grade markings without damaging the material beneath.
Optimizing laser parameters for precision
Clarification of details while laser marking is highly dependent on settings such as power, speed, frequency, focus, and pulse duration. Newer research studies emphasize the need to change laser pulse frequency to match the material’s thermal conductivity. Metals such as aluminum and stainless steel are best marked with frequencies of 20-80 kHz because those ranges allow the most energy to be used efficiently and give good control to reduce the heat-affected zone while keeping the internal structure intact.
Moreover, detail definition is highly influenced by the focus of the beam. Better clarity in lines and sharpness in patterns is achieved when the focused beam has a spot size that allows the required resolution to the desired parameter. Shorter focal length lenses in the range of 100-160 mm are suggested for more precise engravings as they outperform longer focal lenses in focus detailing.
Pulse duration adjustment is critical to avoid thermal warping in polymers. Pulses shorter than nanoseconds are less likely to cause melting or deformation than wider ranges due to having better control over energy delivered per pulse. For instance, marking high-powered dense polyethylene is easily achieved with nanosecond pulses at the power range of 10-15 watts to maintain detail without damage.
Another example of advanced practice is the use of assist gases—such as compressed air or nitrogen—during the laser marking and engraving process. These gases help improve the quality of the results. During the laser marking and engraving process, assist gases are used to steady heat, control vaporized particles, and improve visibility at the marking area, contributing to quality maintenance and prolonging the optical elements’ lifetime. The proper selection of assist gas depends on the material; for example, stainless steel marking uses nitrogen because of its non-oxidizing effect and sharp contrast-enhancing properties during marking.
Incorporating these techniques into laser parameter configuration allows manufacturers to increase the ease of marking for a large variety of materials and achieve higher delineation, greater contrast, and aesthetically pleasing markings, regardless of application or industry. With meticulous proactive monitoring and adjustment, precision laser marking systems maintain rigorous industrial standards.
How to achieve optimal marking and engraving results?
Understanding the marking process and techniques
In order to achieve the best possible results with laser marking and engraving, I first analyze the marking or engraving step by selecting an appropriate power level for the laser, speed of the engraving, and the frequency of the laser for the specific material and outcome chosen. Furthermore, I need to fine-tune the settings for the mounting system of the laser to ensure focus accuracy while the workpiece is statically retained. Material assist gas usage, along with the defined focal distance, play an important role in improving the outcome without damaging the material, and I apply them to achieve greater results. Enhanced monitoring or precision control of marking speed, power levels, or frequency while ensuring predefined benchmarks in terms of durability or resistance allows me to guarantee a cyclic contour through the required levels of precision and detail within each engraving cycle.
Choosing the right laser marking system
The choice of fiber laser markers, for instance, is dependent on the type of material, its production volume, and the precision of the work. For metals and other hard surfaces, a fiber laser is usually the best option because it is long-lasting and quick. On the other hand, CO2 lasers work best with softer materials like plastic, wood, or glass. Marking solutions should be assessed for their compatibility with the company’s existing workflows so that they address the throughput requirements and fit into the processes already in place. Look for systems that feature friendly interfaces to their software as well as useful technical services so that the work done is efficient and overall downtime is low.
Maintaining consistency across a variety of materials
To mark different materials with a laser identically, attention must be paid to parameters such as the laser’s wavelength, power level, and marking speed. For instance, fiber lasers operating at 1064 nm are excellent for metals, but softer alloys may need modifications in pulse frequency for optimal marking. CO2 lasers operate around 10,600 nm and perform best on organic materials such as wood or leather.
Recent developments in technology underscore the need for specific parameters for each material to avoid defects such as charring on plastics or inconsistent depth on metals. Data suggests that optimizing the spot size and energy density increases accuracy by 15% for variable-grade materials while undergoing laser engraving. The use of auto-focus systems and vision-integrated systems further increases the uniformity of marking. These systems ensure proper focusing and calibration relevant to the material surface, thereby accounting for texture or thickness changes.
In extensive production, quality consistency is maintained through frequent testing and calibration. New technology features real-time supervision of factors such as temperature and humidity that can affect material properties, adjusting monitoring infrastructure diffusion systems. With precision tools and rigorous tests, producers can guarantee constant markings on the materials being processed.

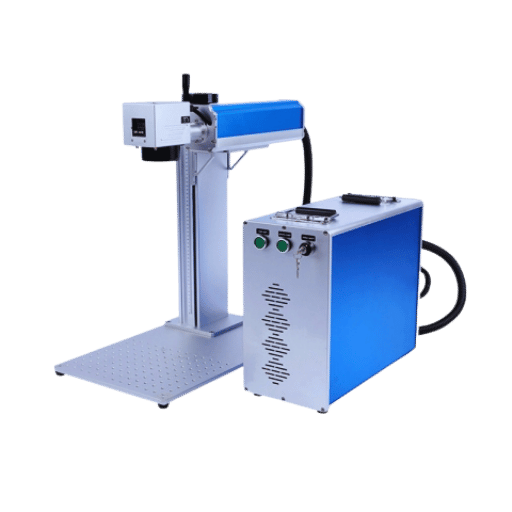

What are the advantages of using a fiber laser engraver?
Benefits of fiber laser technology over traditional methods
Laser marking and engraving done using fiber lasers have much greater efficiency than traditional methods and are practically renowned works throughout different sectors. One of the advantages of fiber lasers is their precision and engraving speed; fiber lasers have engraving rates of seven meters per second. This further maximizes productivity while simultaneously reducing costs associated with lengthy operational cycles.
The industrial-grade quality of markings made using fiber lasers is simply exquisite. Extreme marks produced by fiber lasers are subjected to harsh environments and have proven to never wear out, fade, or corrode. Because of this, they are perfect for applications that require long-term monitoring, especially in the aerospace, automotive, and medical industries.
Furthermore, fiber lasers remain unmatched when considering energy efficiency. Unlike traditional CO2 or solid lasers, fiber lasers use significantly less than or equal to 50% of electricity, fully optimizing energy usage. Because of this, electricity expenses are drastically lowered, and less harm is inflicted on the environment. Coupled with the minimal maintenance required because of the solid-state system, already makes fiber lasers the better option compared to older technologies that are lossy in gas and replacement parts.
Their flexibility is another merit. Fiber lasers can work with a variety of materials, such as metals, plastics, ceramics, and composites, with unparalleled accuracy. For instance, they can easily engrave complex patterns on tiny pieces of jewelry and electronics and, at the same time, mark larger industrial components with a fiber laser marker.
To sum up, progress in the technology of fiber lasers brought to light new features such as variable pulse settings and real-time monitoring capabilities. These allow greater customization and control, enabling manufacturers to adapt the engraving process for flawless quality. These advantages are reasons why fiber lasers are quickly becoming the norm in technology across multiple fields.
Cost-effectiveness and efficiency in marking solutions
The marking solutions using fiber laser technology are even more efficient and cost-effective compared to previously existing solutions. One of the most notable cost-cutting attributes is the reduced operational expense. Fiber lasers, for example, have a wall-plug system efficiency of up to thirty percent, which places them at the top of laser systems to electric efficiency ratio. Further, they do not need Co2 gas and part replacements, which amounts to significant savings on maintenance.
Due to having above one hundred thousand hours of service life, fiber lasers require very minimal servicing and will cut operational downtimes drastically. This, in combination with the other features, helps to enhance productivity. Their precise high-speed functionality enhances the overall output, making it more suitable for large-scale industrial applications. As an example, some industries have recorded a fifty percent decrease in the processing time used on marking tasks relative to older technologies, which significantly reduces production costs.
Lastly, the multifunctionality of fiber lasers enables companies to streamline their marking processes across a single system. A single fiber laser machine can mark various materials, such as metals, plastics, or ceramics, which eliminates the need for several specialized instruments, especially when using multifunctional laser tools. This flexibility, together with consistently high-quality results, is a primary reason why fiber laser systems are increasingly perceived as the economically and operationally most efficient marking solution available.
Frequently Asked Questions (FAQs)
Q: What is a fiber laser engraving machine, and how does it function?
A: A fiber laser engraving machine is a type of laser system used to mark and engrave different materials using fiber laser technology. It works by emitting laser light in a concentrated beam, which interacts with the surface of the material to make accurate and everlasting markings. The laser source in these machines is usually a fiber laser, excelling in efficiency and beam quality, both of which are critical during engraving and marking processes.
Q: Which materials can be engraved using a fiber laser marking machine?
A: Fiber laser marking machines can work with a wide variety of materials. Engraving and marking are possible on metals such as stainless steel, aluminum, copper, and brass. Moreover, these machines can be used for marking plastics, ceramics, and some coated materials. The adaptability of fiber laser engraving enables marking on flat and curved surfaces across various industries.
Q: Is it possible to laser engrave on stainless steel?
A: Certainly, stainless steel can be engraved using a laser engraving machine. Fiber laser engraving is specifically well-suited for marking and engraving stainless steel because the material responds well to laser energy. Processes like laser etching or laser annealing are utilized to permanently mark the material by forming high-contrast markings, which makes fiber laser marking machines perfect for stainless steel products used in the manufacturing, automotive, and medical device industries, among others, when a fiber laser marker is used.
Q: What are the main uses of fiber laser engraving machines?
A: Fiber laser engraving machines have numerous uses across various industries. A few examples are: 1. Tracing and identifying products 2. Marking serial numbers and barcodes 3. Branding products logos 4. Engraving gifts and jewelry 5. Marking industrial parts for quality control 6. Writing on nameplates and signs 7. Customization of other goods This versatile machine is capable of making markings on a wide range of materials in industrial and commercial settings.
Q: What is the difference between engraving with a fiber laser and other types of laser marking?
A: Fiber laser engraving comes with many advantages compared to other laser marking methods. On the other hand, fiber lasers offer greater efficiency, have a longer life span, and require less maintenance than CO2 lasers. Fiber lasers also outperform CO2 lasers in marking quality on metals. In comparison to traditional engraving methods, fiber laser engraving is non-contact, or more precise, faster, and less physically invasive, thus reducing the wear and tear on tools. Also, the level of detail that can be achieved with fiber laser marking technology is higher, including the size of the text, which can be made smaller, hence making it opt for a greater number of marking applications.
Q: What safety measures should be observed when using fiber laser engraving machines?
A: About the use of a fiber laser engraving machine, it is pertinent to observe the following safety precautions: 1. Put on the proper laser protective eyewear. 2. Maintain adequate ventilation for the removal of smoke and particulates. 3. Operate the laser system in closed mode. 4. Do not stare into the laser or its reflection. 5. Proper training must be had before operating the machine. 6. Treat the area around the laser head with caution, as fire can be started. 7. Adhere to the operating and controlling instructions prescribed by the manufacturer for the maintenance of the equipment. These procedures aid in mitigating risks associated with operating the laser system while at the same time guarding the personnel from the possible dangers of risks.
Q: Is it possible to do laser cutting with a fiber laser marking machine?
A: Fiber laser marking machines are mainly for engraving and marking, but on some models, light cutting can be done on thin materials. More heavy-duty cutting is usually done with laser cutting machines that may or may not use a fiber laser as their core technology. These machines tend to have higher power capabilities to cut through thicker materials. If both marking and cutting are required, it is advisable to consult with a manufacturer to provide a system tailored to those specific demands.
Reference Sources
1. Title: Marking surface contours on stainless steel 304 and examining it with fiber lasers
- Authors: M. Pandey, B. Doloi
- Publication Date: 2021-11-01
- Journal: Materials for Today: Proceedings
- Citation Token: (Pandey & Doloi, 2021)
Summary:Â
- The primary goal of this work is to analyze precisely how fiber lasers mark stainless steel 304. The key areas of concern that the authors focus on for their analysis include the power of the laser, frequency, and the rate at which the laser head is scanned.
Methodology:
- The experimental frameworks were developed to enable systematic modification of the laser parameters. The assessment of the markings lies in the judgment on the definition and retention of the marks that were made.
2. Title: Comparison of Marking Quality of Polymer and Organosilicon Films Based on Processing with a Nanosecond Fiber Laser
- Authors: E. Pryakhin, E. Troshina
- Publication Date: July 28, 2023
- Journal: Science Intensive Technologies in Mechanical Engineering
- Pep citation: Pryakhin and Troshina, 2023)
Summary:
- This paper evaluates organosilicon and polymer films based on their marking with a nanosecond fiber laser. It expounds the benefits of using organosilicon films in applications that involve high temperatures.
Methodology:
- The authors performed some tests relative to laser marking on different types of polymer films as well as organosilicon films. Quality checking was done according to accepted international standards, specialized in marking durability and temperature endurance.
3. Title: Inner White Engraving on Clear Plastic via 1.55 μm Nanosecond Pulse Fiber Laser
- Authors: T. Sakaguchi, M. Yoshida
- Publication Date: March 19, 2021
- Journal: Journal of Laser Applications
- Citation Token:Â (Sakaguchi & Yoshida, 2021, p. 120)
Summary:Â
- The work presented in this paper is concerned with the creation of white markings inside transparent plastics (polycarbonate and polyethylene terephthalate) by employing a fiber laser of the appropriate wavelength.
Methodology:Â
- The research conducted on solid plastics included heating them to specific temperatures followed by applying a nanosecond pulse fiber laser to produce voids that resulted in white engravings. The quality of results achieved was determined by the brightness and level of white internal engravings formed.
