Exploring the Paper Machine Dryer Section: Enhancing Drying Efficiency and Minimizing Energy Consumption

As an extensively used piece of factory equipment, a paper machine integrates various functions into one flow of operations. The majority of contemporary paper machines utilize a unique design and cut travel lines between processes. The dryer section of a paper machine has the specific function of removing moisture from the paper webs coming from the paper machines. The dryer section energy consumption remains extremely high as one of the most power-consuming processes in drying paper. The recent focus of engineers has been improving factory output by working actively on minimizing operational costs. Increased productivity, decreased overheads, environmentally friendly working functions, or simply remarkable output: whatever your business goal is, this article will provide instructions to fully utilize your drying section. Each described technique in this article combines several measures focusing on minimizing energy expenses while maximizing performance.

What is the Role of the Dryer Section in a Paper Machine?

The dryer part of a paper machine is essential in removing the excess water from the paper web after it has undergone the pressing stage. The moist paper is dried in a series of steam-heated cylinders to reach to desired moisture content. Effective operation of the dryer section is essential for achieving uniform paper quality and production efficiency, energy consumption, and progress in paper-making automation. It improves the paper’s strength and its dimensional stability, which are important in product specification requirements.

Understanding the Drying Process

In modern paper manufacturing, the application of new technologies has improved the drying process. One such advancement is the implementation of energy-efficient drying processes, for instance, high air temperature drying systems and improved steam control. These innovations not only conserve energy but also ensure the moisture content profile of the paper is even, which is important for quality. Moreover, the use of advanced monitoring systems and precision temperature-controlled controllers enables the temperature and drying rate control for the entire drying section to be automated. This results in better quality of paper while reducing environmental impact by conserving resources in the process.

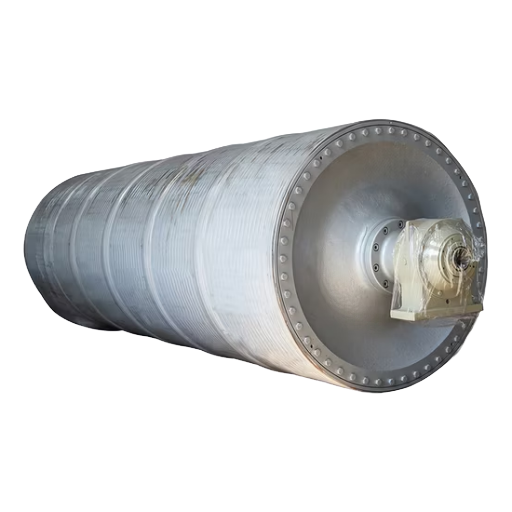

The Importance of the Dryer Cylinder

The dryer cylinder serves a focal role within a paper production process, given that it directly touches on the quality, productivity, and sustainability of the operation. As the primary mechanism for moisture removal, the dryer cylinder paper machine has to ensure the paper is dry enough to achieve uniform smoothness and uniformity in the final product. Recent searches reveal a rise in the topic of energy efficiency pertaining to the dryer cylinders, which indicates an increasing concern toward sustainable practices. Modern advancements that include steam and condensate systems and their combination with thermal energy recovery technologies have greatly enhanced the functional effectiveness of dryer cylinders. By addressing industry challenges such as high energy use, high operational cost, and negative impact on the environment, these innovations not only make the dryer cylinder indispensable but also a significant catalyst toward sustainable advancement in the paper industry.

Impact on Paper Quality

The latest improvements in dryer cylinder technology impact paper quality remarkably. Proper dryer cylinder functioning is essential for uniform moisture removal, which enhances continuity in the level of dryness of the sheets and refinement of paper characteristics. Improvement of modern controls and optimized placement of steam pressure enable precise thermal control that minimizes the differences in sheet moisture content, resulting in improvement of smoothness, density, and porosity of the paper.

As reported in the industry, with optimized paper drying technologies, paper defects have been reduced by 25%, thus fewer rejects and improved yield. Stringent requirements for modern printing and packaging technologies are addressed with enhanced moisture control that improves durability and printability of the paper. Also, these developments involve surface coatings on dryer cylinders that have been made to increase the efficiency of heat transfer, thus improving not only the drying performance but also the uniform surface quality of the paper. This highlights the importance of innovations in dryer cylinders to respond to market needs for high-quality papers.

How Does the Dryer Hood Air System Work?

Components of the Dryer Hood Air System

The components of the system are the hood enclosure, supply air system, exhaust air system, heat recovery system, gas burners, ducts, profiling dampers, and blowboxes.

Role in Moisture Profile Management

The Tight Dryer Air Hood System is indispensable in the regulation of moisture levels in industrial drying operations. Balanced supply and exhaust air controls guarantee the continuous removal of moisture for any drying load. The profiling dampers and individual blowboxes permit the supply of air into definite zones to control the moisture content. Furthermore, supplementary heat recovery systems improve energy consumption while effective humidity control is sustained. Google’s industrial drying technology insights suggest an increase in airflow as well as temperature automation capability due to sensor fusion and real-time monitoring has greatly enhanced systems’ responsiveness, delivering moisture profiling precision, thus product quality. Energy efficiency and operational productivity is improved as well.

Optimizing Ventilation and Exhaust Systems

The optimization of ventilation and exhaust systems includes their regular servicing, enhancement of system parts, systematic airflow calibration, dynamic control implementation, and the application of modeling software.

What Are the Benefits of Using a Yankee Dryer?

How Yankee Cylinders Enhance Drying Efficiency

Yankee cylinders enhance the efficiency of the drying process due to their good thermal conductivity alongside a high drying surface area, which facilitates moisture evaporation from the sheet. Their direct incorporation of thermal energy transfer combined with process management, makes distinction and uniform drying attainable is vital for streamlining operation and energy efficiency. This phenomenon enhances the production rate while minimizing energy consumption, which aligns with sustainability objectives.

Contribution to Paper Surface Quality

Advanced improvements for the dryer sections’ runnability are ensuring there are no unsupported draws, web stabilization, component upgrading, air systems optimization, and equipment maintenance.

Improving the Runnability of the Dryer Section

Improving the runnability of the dryer section involves: reducing unsupported draws, stabilizing the web, upgrading components, optimizing air systems, and maintaining equipment.

How Can We Achieve Maximum Drying Efficiency?

Strategies to Optimize Heat Recovery

Maximizing the efficiency of heat recovery in the dryer section demands an integration of different approaches and advanced technologies. The following are key actions to be undertaken:

1. Install Energy Recovery Systems

Use of heat recovery units (HRUs) or economizers qualifies under energy recovery systems that capture waste heat from discharged air to be utilized in pre-heating processes, such as incoming air. This not only minimizes energy waste but also increases thermal efficiency.

2. Optimize Hood Design

Effective dryer hoods equipped with properly placed grill-type dryers have an improved capture and recirculation system, which reduces losses of entrenched energy, so there is more efficient utilization, which provides advanced heat recovery of the dryer unit working with the hood unit, Thus, CFD is a useful tool in optimizing hood design.

3. Proper Maintenance of Air Filters

Poorly maintained duct systems and dirty filters result in low exhaust airflow, which harms the recovery efficiency, and therefore, scheduled maintenance assists in this matter.

4. Achieve Balance in Humidity Levels

Advanced control mechanisms designed with sophisticated sensors are capable of maintaining a constant humidity level in the exhaust air system. These devices enable prompt adjustments of the airflow being put in, offering compliance with the set rules of the heat required, ensuring an optimal recovery.

Innovations in Dryer Fabric Technology

Research and Innovations in Dryer Fabric Technology seeks to achieve enhancements in energy efficiency, fabric durability, and overall performance. Modern yarns incorporated in dryer fabrics, such as hydrolysis-resistant polymers, greatly improve longevity even in elevated temperatures with high relative humidities. Moreover, new weaving techniques and tailored permeability structures promote even greater drying speeds and reduced energy usage and costs. These developments not only lead to lower costs but also help sustain the environmental objectives.

Reducing Energy Consumption in Paper Manufacturing

Recent strategies in paper manufacturing focus heavily on minimizing energy expenses while maximizing productivity and efficiency. One of the most impactful measures includes the installation of energy-saving devices, like motors with variable frequency drives (VFDs) that control energy usage to match demand. In addition, modern systems for heat recovery expand the capabilities of plants to capture and reuse thermal energy released during the drying and pulping processes, thereby reducing overall energy consumption.

Adopting renewable energy, solar power, and biomass to fuel the sites seems to be on the rise. An example would be the application of solar thermal systems, which helps in conventional energy saving up to 30% in drying operations. Moreover, there is greater accuracy in waste beyond the operational load enabled via data analytics and machine learning, which helps in monitoring energy utilization patterns. These sharpened approaches are intended to meet multilateral operational goals of sustainability, lowering costs, and advancing global competitiveness in the paper production industry.

What Challenges Exist in the Operation of Paper Machine Dryers?

Maintaining Consistent Paper Web Tension

Ensuring uniform stress on the material requires closed-loop tension control systems, dancer rolls, proper alignment of rollers, synchronization of speeds, and uniform tension during operation, which is especially useful in managing the constant paper web tension.

Addressing Variability in Coating and Moisture

Tackling inconsistency with coatings and moisture concerns encompasses refining techniques, raw materials, and atmospheric/eco-friendly controls to guarantee repetitive performance and precision in application.

Ensuring Efficient Steam Utilization

Effective utilization of steam remains a persistent challenge in the operation of paper machine dryers, influencing direct energy consumption and production costs. The latest developments in automation and real-time diagnostics provide opportunities to enhance steam consumption. Automated smart sensors coupled with data analytics allow for steam pressure, temperature, and flow rate monitoring to be controlled in real time.

Based on recent research outcomes, and by analyzing industry trends and new technologies, improved energy efficiency can be attained by optimizing the recovery of condensates as well as by adopting more advanced heat recovery techniques. In addition, predictive maintenance made possible by computational modeling and AI algorithms ensures constant performance of steam systems, thus eliminating downtime. All these measures contribute to sustainability targets by reducing the energy intensity of processes and the carbon emissions associated with the operation of paper mills.

Frequently Asked Questions (FAQs)

Q: What is the function of the dryer section in a paper machine?

A: The dryer section of a paper machine plays an important role in moisture management concerning the water vapor within the paper sheet after pressing. It contributes to evaporating the paper’s moisture content to optimum levels such that the paper or board is adequately dried for further processing in the dryer section.

Q: In what ways can air systems for machine dryer hoods augment drying effectiveness?

A: Air systems for machine dryer hoods conceal dryers with a system that improves drying performance. Such air systems regulate the supplied air quantity, temperature, and moisture content, thus improving the removal of moisture via convection.

Q: What is cylinder drying, and what is its method of operation?

A: Cylinder drying is a method where a paper web travels around steam-heated cylinders. The paper sheet is dried by the heat from the steam-heated cylinders, which helps to evaporate moisture from the sheet. This enhances efficiency and enables optimal functioning of the paper machine.

Q: What are the methods to reduce energy consumption during the dry section of a paper machine?

A: Energy consumption in the drying section can be reduced through the implementation of heat recovery systems, the balance between the speed and grade of the machine, and the optimal functioning of the air systems of the hood dryer. These actions will lead to savings in energy consumption while providing the required conditions for drying.

Q: In the context of the dryer section, why is humidity control essential?

A: Humidity control is very critical in achieving a targeted rate of evaporation for drying processes and producing quality paper. Some level of humidity can retard the rate of evaporation which would reduce the efficiency of the machine and the quality of paper or board produced.

Q: What factors influence drying performance in a paper machine?

A: Drying performance is affected by several factors, such as the pace of the machine, the efficiency of the cylinder drying, the paper sheet properties, and the effectiveness of the paper dryer hood air systems. The efficient optimization of these factors provides efficient drying and quality in the paper produced.

Q: How does the dryer section affect machine efficiency?

A: The dryer section determines the drying rate and the energy expenditure, which affects machine efficiency. Effective and efficient drying processes decrease machine downtime, enhance throughput, stabilize performance consistency, and improve overall machine efficiency.

Q: What is the importance of a rebuild in the dryer section?

A: Incorporating new systems and optimizing current ones tends to improve energy consumption and drying efficiencies, which enhances the rebuild in this section. This improves the machine’s operation and reduces costs while enhancing the paper and board products.

Q: How does papermaking benefit from optimal drying conditions?

A: Ensuring optimal conditions allows quick attainment of the required dryness levels in the paper sheet, which minimizes energy expenditure and time taken to produce it. This leads to enhanced strength, high quality, and improved surface properties of the paper and board products, thus benefiting the papermaking process.

Reference Sources

1. Analysis Of Calculation Based On The Efficiency Of Steam Consumption On The Dryer Section Of A Paper Machine

• Authors: Abdillah Taqiyuddin , Ridwan Abdurrahman
• Publication Date: 2023-10-31
• Journal: Proksima

Key Findings:

• The research focused on analyzing the efficiency of steam consumption in the dryer section of a paper machine.
• Concerning grade W/FIPF35-70, the average steam consumption efficiency achieved was 94.51%, which was above the TAPPI benchmark of 86%.
• Some of the factors that affected the efficiency included the quality of raw materials, equipment settings, and the age of the machine parts.

Methodology:

• Actual steam consumption efficiency with TAPPI standards was calculated as a basis for comparison in the research (Taqiyuddin & Abdurrahman, 2023).

2. An Integrated Thermodynamic and Heat and Mass Transfer Theory for the Multicylinder Dryer Section of the Paper Machine

• Authors: A. Anjomshoaa, M. Salmanzadeh
• Publication Date: 2021-01-18
• Journal: Drying Technology

Key Findings:

• Developed a thermodynamic model of the dryer section that avoids the use of fine grid discretization techniques.
• The model provided calculations for the trends of paper and air temperatures, steam consumption, and the trends in the drying processes.
• The accuracy of the model was validated against experimental data from earlier studies.

Methodology:

• The Governing equations for the model were based on empirical formulas coupled with modified techniques for estimating heat and mass transfer coefficients (Anjomshoaa & Salmanzadeh, 2021, pp. 1307–1328).

3. The Paper Machine Dryer Section’s Waste Heat Recovery System

• Authors: N. Tanasić et al.
• Publication Date: 24 March 2021
• Journal: 2021 6th International Symposium on Environment-Friendly Energies and Applications (EFEA)

Key Findings:

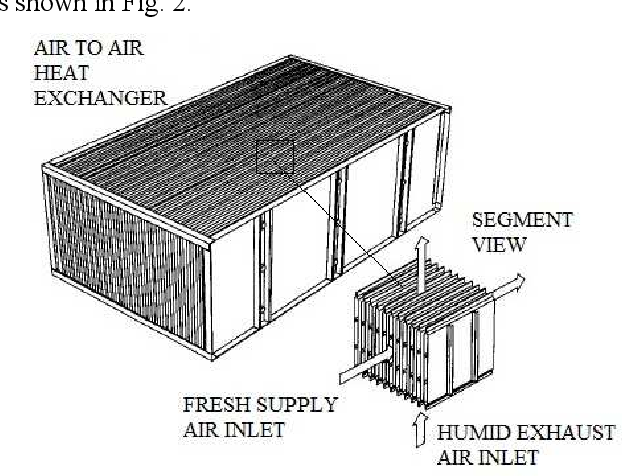

• Identified optimal parameters for an air-to-air plate heat exchanger.

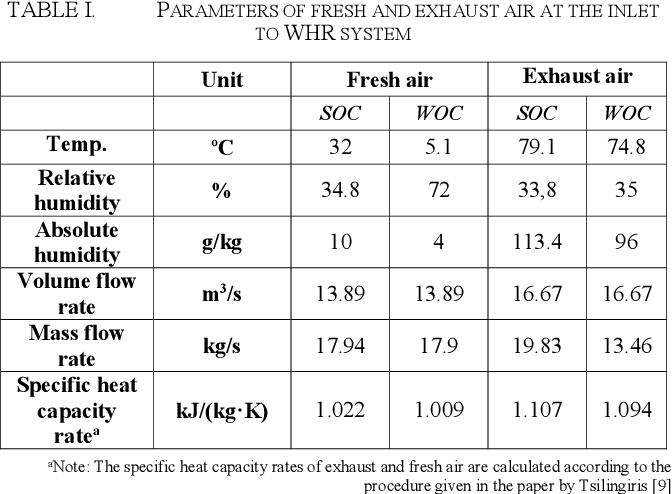

• Calculated total net savings of primary energy consumption through the optimized waste heat recovery system.

Methodology:

• Applied the effectiveness-NTU method alongside real operating conditions cost functions (Tanasić et al., 2021, pp. 1-6).

4. DRYING OF PAPER – A comprehensive scholarly resource of the criteria and paper grade-specific workflow in the dryer section of the paper machine.
