In the context of industry robotic welding, delivering value in both precision and productivity marks the evolution of competition. Expecting advanced robotic welding systems to outperform in all manners, including speed—automation spells efficiency. Robots not only outperform welders but eliminate human error, guaranteeing optimized fabrication through unmatched consistency. In this piece, we delve into how the adoption of advanced robotic technology can transform productivity and lower costs significantly while simultaneously improving quality and general operational efficiency. As a result, automated systems are best suited for entities struggling to deal with labor shortage crises. Read on to understand how your company will become a market leader following the implementation of robotic welding.

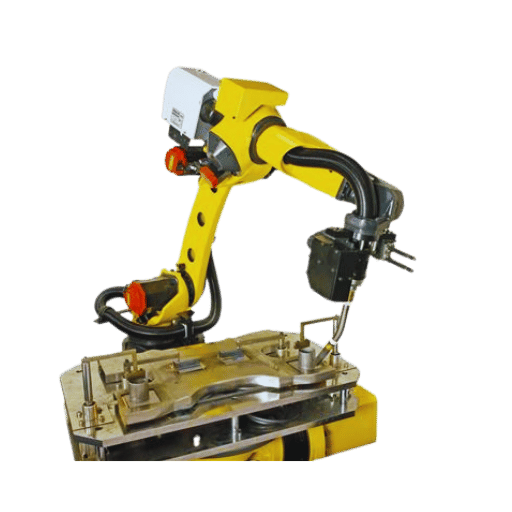

What is a Robotic Welding Machine?
A robotic welding machine is classified as an automated system because it performs specific welding operations accurately and consistently. It utilizes programmable welding robots, which automate the joining of metals through arc welding, spot welding, and other welding processes. These machines are widely used in industries where manufacturing processes are highly automated. Compared to traditional manual welding, robotic welding is less error-prone, more homogeneous, cost-effective, and quicker to execute. The robotic arm, welding power source, and control system are the three basic constituents of the robot which mutually contribute to the precision of the weld, repeatability of the robot’s movements, and processing of necessary data.
Understanding the Basics of Robotic Welding
Just like manual welding, Robotic welding is an automated welding mechanized process that employs programmable robots to execute welding operations with accuracy and uniformity. The process optimizes productivity in fabrication industries by decreasing the likelihood of human-caused mistakes, heightening repeatability, and preserving the quality of the welds. Frequent uses include assembling automobiles, fabricating aerospace vehicles, and manufacturing massive tools. The main advantages of robotic welding are better performance, reduced expenses, improved safety by less human exposure to dangerous situations, and greater efficiency.
Components of a Welding Robot
A welding robot consists of different components working together to perform accurate welding processes efficiently. Below is the entire components breakdown:
Robotic Arm
The robotic arm, also known as a manipulator, is the revolute robot’s base part. It enables a certain trajectory required to perform welding operations. Current robotic arms have been fitted with six or more movement axes which improves skill level and allows the robot to access difficult and precise areas.
Controller Unit
The controller is regarded as the ‘brain’ of the welding robot. It takes care of the robotic arm’s movements, speed, and even the pathway to be followed, as well as working with other peripheral devices. Modern controllers utilize complex algorithms to maintain consistent propulsion precision and smooth movements throughout the system, even within harsh conditions.
End Effector of Welding Torch
Welds are formed by the use of a welding torch and this tool is specially made for welding types such as TIG, MIG, and spot welding. Advanced welding torches now support features such as automated wire feeders, gas flow controllers, and coolant systems which help maintain efficiency and quality even during long periods of operation.
Power Supply
The power supply is essential for providing the energy needed for the welding process. It adjusts voltage and current, depending on the material and the amount of precision required, to optimize welding conditions. Advanced systems provide better weld consistency by offering digitally controlled power outputs.
Sensor Systems
Sensors allow the welding robot to respond to contextual influences in real-time. Vision sensors, laser trackers, and arc-sensing feedback add accuracy to the weld by adjusting for variations in materials and joint alignment. For instance, through-the-arc seam tracking technology is commonly used to maintain welding path alignment.
Teach Pendant
The teach pendant is a handheld device that enables programmers and operators to control and program the robot. Modern teach pendants come with user-friendly interfaces and touchscreens, making programming easier, shortening setup times, and enabling rapid onsite troubleshooting.
Safety Systems
Integrated safety features, including light curtains, fencing, and emergency stop systems, maintain required standards for operation while ensuring the safety of operators in the vicinity. Collaborative robots (cobots) incorporate advanced force and proximity sensors to work near humans safely without traditional safety barriers.
Base Unit
The fundamental component of a welding robot is the base which serves as the primary structural support. In addition, it contains the motor drivers and cabling. A properly designed base will anchor a robot during operation to reduce vibrations and improve the accuracy of the welds performed.
Technical Advancements and Trends
Recent technological developments in welding robots include the addition of AI and machine learning systems which optimize weld paths and enable the robots to better respond to novel materials. Other weld robots are now integrated with Industry 4.0 allowing interconnectivity with other robotic units for real-time data control and predictive maintenance crucial for fanuc’s arc welding robots. These developments seek to enhance efficiency while reducing downtime, underscoring the role of robotic welding in contemporary manufacturing.
How Robots Are Used in Welding
The introduction of intelligent technologies has made it necessary for welding robots to have great precision and adaptability. One of the main processes is robotic arc welding which has large-scale applications in the automotive and aerospace industries for welding tasks that require great consistency and uniformity like repetitive high-quality welds. According to industry estimates, robotic arc welding systems have an accuracy performance metric of within 0.04 millimeters which along the lines of automatic versus manual welding, yields substantial improvement in precision.
Laser welding is certainly one area where robots have a decided advantage for thin complex geometries or shapes. Robots fitted with laser welding machines can operate at speeds exceeding 200 inches per minute which can significantly boost productivity. Furthermore, the packaging and pipe manufacturing industries utilize spot welding robots because they can deliver professionally polished work with speed and accuracy that meets the high-demand production standards effortlessly.
Improvement in sensor system technologies like machine vision systems allows for greater weld process automation. For instance, adaptive welding robots can mount compensators to offset seam position and size discrepancies which can lead to stronger connections. Collaborative robotics (cobots) are significantly on the rise as they enable safe interaction with operators using complex welding robotics within smaller production spaces.
Moreover, the implementation of Industry 4.0 has enhanced the connectivity of robotic welding systems. Advanced analytics enables manufacturers to anticipate maintenance activities, track productivity, and minimize system idle time. A 2023 report by market analysts predicts that the worldwide market for robotic welding will value $10.3 billion by 2028, which represents an annual growth rate (CAGR) of 7.5%. These developments underscore the importance of robotics in modern manufacturing.
How Does Automation Improve Welding Efficiency?
Benefits Of Manual Welding
As the technology of welding, especially with robotics, is advancing rapidly, there are scenarios where manual welding is still ideal due to its precision, craftsmanship, and adaptability alongside advantages such as manual bestowing skill with unmatched flexibility into complex projects. This remains exceptionally beneficial in industries that work with complex structures such as aerospace, artistic fields, or detailed metalwork fabrication.
Welders can apply manual adjustments which enables them to operate in real-time depending on how the material responds as well as other environmental factors. This is very helpful for non-standard materials or weld joints that are difficult to access. In terms of business insights, manual welding continues to receive praise for having a cost-effective option for repair jobs or low-volume welding tasks as there is little return on investment when turning to advanced robotics.
Manual welding is and will remain important without dependable infrastructure or electricity as we do not require automation or maintenance systems. The manual without automation is still actively present in details customization and extreme depth quality sessions helping sustain industries, further proving the synergy between human skills and technology integration.
Role of Welding Automation in Productivity
Automated welding technology has elevated the standards of industrial manufacturing by further improving productivity, consistency, and operational efficacy. Automated welding processes like robotic welding arms and intelligent welding machines outperform their manual counterparts in speed and precision, particularly with tasks like welding versus automatic robotic welding. According to some industry report citations, automated welding processes can increase production rates by 40-60% depending on the application and complexity of the weld.
Consistent quality is perhaps the most important advantage provided by welding automation. Uniform weld sizes and penetration depths are ensured with little variability, defects are minimized, and the need for rework is reduced. Such a degree of reliability has spurred adoption in automotive, aerospace, and energy industries where precision specifications are critical. Studies show robotic arc welding can achieve defect rates as low as 0.5%, which is significantly lower than the error margins associated with manual operations.
Furthermore, welding automation enables round-the-clock operations, thereby increasing uptime and throughput, especially in arc welding applications. Combined with predictive maintenance technologies and real-time monitoring systems, these innovations minimize operational losses resulting from equipment breakdowns, improving efficiency. In addition, the application of sophisticated technologies such as machine learning and artificial intelligence allows automated welding processes to be responsive to changing production requirements without slackening productivity.
Lastly, automated welding practices were adopted as a reaction to the emerging skills gap in the welding workforce. By automating intricate and repetitive processes, companies can devote skilled welders to more complex tasks, improving operational efficiency and addressing labor shortages.
Types of Automation Solutions
Fixed Automation Â
Fixed automation refers to systems designed to repeat processes in high-volume production. Such systems are optimal for standardized processes like those found in automotive assembly lines, where uniformity and efficiency are paramount.
Programmable Automation Â
This type of automation is perhaps the most useful in batch production, specifically in the case of arc metal welding. It allows for different processes to be reprogrammed, providing a higher degree of flexibility for frequently modified tasks, as required in bespoke product manufacturing.
Robotic Automation Â
Robotic systems are often more adaptable than other forms of automation. They can carry out a myriad of tasks including welding, material handling, and inspection. They come fitted with a range of tools and control systems that allow them to meet different operational requirements.
Flexible Automation Â
Flexible systems allow rapid modification of production activities with minimal interruptions to operation. They are frequently employed in domains with high product variety tempered by low production volumes such as aerospace manufacturing.
What Are the Different Types of Robotic Welding Systems?
Overview of Arc Welding Robots
In the field of industrial automation, arc welding robots are indispensable, greatly improving the accuracy, reliability, and speed of operations in metal arc welding. These special-purpose robots are capable of welding a range of materials, including steel, aluminum, and various alloys, utilizing an electric arc to join them. The systems come with multi-axis arms and adaptive current controls, enabling them to achieve precise and consistent welds within complex geometrical parameters.
Furthermore, the integration of artificial intelligence (AI) and machine learning (ML) technologies has enhanced arc welding robots. For example, AI vision systems provide automated seam-guiding and defect-identification services which help in the reduction of errors in critical applications like automotive and shipbuilding. Industry reports suggest that robotic welding adoption has improved manufacturing efficiency by 30% while material consumption decreased by 25%, resulting in cost-effective sustainable practices.
From repetitive tasks to highly customized configurations, arc welding robots are a versatile solution for manufacturers. Less human interaction further enhances the safety of these systems, reducing operator risk by controlling exposure to dangerous welding environments. The versatility of modern industry demands efficiency alongside adaptability and safety, all of which make arc welding robots an invaluable asset.
Introduction to Cobot Welding
Cobot welding—or collaborative robot welding—marks an important evolution in manufacturing processes because it integrates robotics and human collaboration. Unlike traditional welding robots, cobots are intended to complement the worker within the same area. This integration permits manufacturers to improve productivity, decrease errors, and fill the gaps created due to the shortage of skilled welders.
Today’s modern-day cobots are outfitted with high-tech safety sensors, force-limiting controls, and simple programming, making them applicable for use in almost all industries. Industry reports suggest that the cobot market is likely to grow at a compound annual growth rate (CAGR) of about 38% from 2021 to 2028 due to rising automation needs across sectors. In addition, due to lower floor space occupancy and investment requirements in comparison to traditional industrial robots, these systems are more economical and ideal for automated robotic welding applications.
The flexibility for small to medium production runs is one of the greatest benefits of cobot welding. Manufacturers can easily adapt their processes to MIG, TIG, or spot welding since cobots can be easily reprogrammed to different welding tasks. OEMs can be equipped to meet complex geometries or variable production requirements. As well, the addition of features including path optimization, real-time monitoring, and automated quality control guarantee consistent welds with little wastage.
For manufacturers trying to optimize their processes, cobot welding systems are a time-saving solution. Research cites that these systems, with their unparalleled weld quality, can minimize cycle time by almost fifty percent. Furthermore, the ability to easily integrate these systems into existing production lines promotes better ROI in shorter timeframes, which is a win for most companies.
Cobot welding brings together human creativity and robotic accuracy and creates an operator-friendly environment while responding to the clamoring calls for greater productivity and quality output. This positions cobot welding as a foundational technology for the future of industrial welding.
Exploring Laser Welding and Spot Welding
Investigating Laser Welding Â
Like other welding techniques, laser welding is a joining process that makes use of a concentrated beam of light for melting and fusing materials. It is an advanced method used in various modern industries, such as automotive, electronics, and aerospace because of its high speed, precision, and efficiency in creating low-distortion and high-strength welds on thin and fragile materials. Modern laser welding systems can perform welding at speeds of up to 60 meters per minute, which is highly beneficial for mass production lines. Furthermore, the laser welding process exhibits an unparalleled level of adaptability when it comes to different materials as it is not restricted only to homogeneous pairs, unlike traditional welding. For example, advanced laser optics grade fiber lasers can minimize spatter, reduce heat-affected zones, and improve weld beauty because of their powerful beam control.
The automation of laser welding technology improves precision and efficiency. Seamless integration into robotic systems allows optimization of these systems further. Recent data suggests the incorporation of laser welding can result in a 30% reduced time for manufacturing while improving product performance because of the structural integrity added by the weld. With these properties, laser welding has emerged as a vital tool for modern manufacturing technologies.
Examining Spot Welding Â
In comparison to other methods of welding, spot welding is perhaps one of the most frequently used types of resistance welding due to its straightforwardness in applying to the joining of metal sheets. The process relies on the application of pressure with electrical current being passed through the electrodes resulting in localized melting and bonding at specific contact points. It is widely known that spot welding is used in the automotive industry, especially in the assembly of vehicle bodies which necessitates strong, lightweight joints.
Spot welding is particularly advantageous in terms of mass production because it is relatively inexpensive due to low material expenditure and high-speed cycle times. For example, spot welding utilized in automated systems can perform welding at rates as high as 1000 spots per minute. Even with all of these advantages, modern spot welding technologies have been developed to cope with problems such as electrode wear and overheating. Bolt reliability and longevity are achieved through the application of advanced cooling systems and adjustable pressure control in addition to existing technologies.
The stringent requirements for quality coupled with minimizing downtime and maximizing efficiency leads to innovations in design flexibility all made possible through the integration of advanced laser and spot welding technologies.
How to Choose the Right Welding Robot for Your Needs?
Factors to Consider for Welding Applications
When choosing a welding robot for your application, there are several core factors that, if optimized, could have significant value and impact operational efficiency. The following is an exhaustive list of these factors and approaches:
Welding Technique
Different types of robots specialize in different types of welding such as MIG, TIG, laser, or spot welding. For example, MIG welding robots are suitable for rugged applications, whereas precision jobs with stringent quality aesthetics would require TIG welding robots. Ensure the robot aligns with the welding procedure needed for your projects.
Welding Material and Thickness
Evaluate the type of material that is being used which can be steel, aluminum, specialty alloys, and its associated thickness as well. Robots meant for thicker sections tend to require bigger power outputs, while thinner sections mean more precision capability to prevent burn-through.
Production requirements for volume and speed
Assess the production volume you are trying to achieve. In the case of high-volume output, possibly necessitating faster cycle times, advanced levels of systemization might be mandatory. For example, certain robotic systems can perform more than 1000 spot welds per minute, resulting in substantial productivity gains.
Work Envelope and Range of Motion Â
The workspace area impacts the design of the robot. Select a robot that allows for movement and positioning without restrictions in the work envelope so that all welding points can be reached.
Payload Capacity Â
Confirm the robot has the required payload capacity to support the torch provided together will all necessary tools, such as wire feeders, sensors, or cameras.
Accuracy and Repeatability Â
Achieving accuracy is particularly important in sensitive fields like automotive and aerospace welding. The quality of welds throughout different parts must be consistent. In this light, only robots with repetition ratings of ±0.1mm or better should be chosen.
Ease of Integration Â
Consider how seamless the robot’s addition will be to the existing production line. Make sure the automation systems in place, the welding power source, and the software interfaces are compatible.
Customization and Flexibility Â
Flexible welding robots permit customization and enable manufacturers to seamlessly shift production to respond to different designs and evolving production needs.
Cost and ROI Â
Evaluate the cost of the robotic system in total with installation, operation, and maintenance against the return on investment (ROI). The overall cost of the proposed system should be reasonable based on its capability to boost productivity and reduce defects in the long run.
Maintenance and Support Â
Robotic welders must undergo regular maintenance to ensure optimal performance. Choose systems with simple maintenance procedures, good technical support, and easily accessible spare parts.
Considering these factors will enable the manufacturers to make reliable choices on which welding robot is the best fit for their operations, thus improving performance, enhancing productivity, and optimizing business processes.
Comparing Different Welding Robots
Each welding robot functions differently, and each of them has certain features that make them stand out. However, some core parameters need to be kept in mind, especially when comparing robots for a specific manufacturing requirement:
Speed and Productivity Â
Different robotic arms have different welding speeds, but most modern advanced robots can perform up to IPM of 300. Depending on the technique used, the speed might vary: for example, MIG or TIG techniques yield different speed results.
Precision and Accuracy Â
There is specialized software outfitted in modern welding robots that is capable of doing precision checking and verification systems. For a lot of contemporary robotic systems, the positional repeatability boasts, among other parameters, a positional repeatability of ±0.02 mm or better. This vertical repeatability along all axes planes ensures that modern robots do not have any error margins in precision fields like aerospace or automotive sectors.
Payload Capacity Â
Certain industries, especially those requiring thick metal sheets to be welded, benefit from robotic arms with higher payloads. Payload capacities, especially 100 kg and above, can significantly aid in the movement of tools and other materials.
Ease of Programming
As part of ease of programming, modern systems include user-friendly programming interfaces and offline programming capabilities. These systems allow operators to make optimization changes to welding programs while production is ongoing. Intuitive systems also help reduce the training time required for staff and operational downtime.
Energy Efficiency
Integrated energy-efficient technologies are employed in modern welding robots. Regenerative braking systems and power consumption modes are some features that can result in energy cost savings of up to 20–25%. There is also a reduction in operational costs while still meeting the sustainability challenge.
Industry Specific Applications
Every industry has specific robotic requirements such as articulated robots with six or more degrees of freedom are particularly proficient in joining intricate shapes like those available in exhaust systems fabrication. In contrast, SCARA robots are beneficial for fast simple welding processes in electronics and light assembly work.
Cost vs. Benefit Analysis
The right investment requires a thorough cost vs. benefit analysis. For many operations, the productivity increases and defect reductions along with labor savings make the return on investment in the welding robots, which range from $50,000 to $150,000 for mid-range models, achievable within two to three years.
Considering these aspects along with precise production criteria allows manufacturers to optimally choose a robotic welding system that meets their operational requirements, guaranteeing sustained productivity and cost savings.
Top Robot Brands in the Welding Industry
Fanuc’s arc welding robots are some of the most reliable and efficient robots that are used in different industrial applications.
Fanuc is one of the most versatile and dependable brands when it comes to robotic welding, offering both large and small-scale operations precision and adaptability.
ABB Â
With easy-to-use programming and advanced designs, ABB features robotic systems that focus on increasing welding accuracy and overall efficiency.
KUKA
Strategic for specialized complex welding operations, KUKA’s durable high-precision robotic solutions provide unmatched robotic accuracy and endurance.
Yaskawa Motoman Â
Automatic robotic welding and traditional methods are made easier with the wide range of welding robots provided by Yaskawa Motoman since they are known for their speed, flexibility, and effortless system integration.
Panasonic Â
Offering enhanced productivity and weld quality through robotic integrated welding solutions, Panasonic is an expert when it comes to combining robotics with welding.
What Is the Future of Robotic Welding?
Advancements in Welding Technology
Incorporation of Artificial Intelligence (AI)
AI-powered welding systems facilitate more intelligent, self-governing functions. These machine-learning systems are capable of monitoring welding processes, minimizing errors, adjusting to different conditions, and improving overall quality in real time. Industry studies show a 25% increase in weld accuracy in AI-utilizing systems when compared to traditional systems.
Quality Control Monitoring
With advanced sensors and cameras, the monitoring of welding processes can now take place in real time. These systems can recognize defects such as porosity and misalignment right away and take corrective measures in advance. Studies demonstrate that real-time quality control monitoring systems can reduce production downtime depletion by 30%.
Laser Welding
The use of laser welding technology permits precise, fast-speed welding of thin materials and delicate assemblies, making it superior to traditional methods. It is increasingly being adopted in the automotive and aerospace industries. Reports indicate that this technology leads to 40% faster production as compared to conventional methods that use arc welding.
Combined Welding Techniques
Hybrid welding solutions merge distinct welding techniques, for example, laser and arc welding, into one action. According to research, hybrid welding is known to improve productivity by 50% while maintaining exceptional quality.
Collaborative Robots (Cobots)Â
Cobots are now being integrated into welding operations to work with humans. These systems are easily programmed, flexible, and suitable for small-batch production. Market analysis foresees a 17% annual boost in the integration of welding cobots due to their adaptability and cost-efficiency.
Augmented and Virtual Reality (AR/VR) for Welding TrainingÂ
AR and VR tools are now being utilized to train welders by providing interactive, realistic simulations of actual welding environments. These technologies are expected to lower material costs, enhance trainee skill levels, reduce waste, and cut training expenses by up to 20% compared to conventional methods.
IoT-Enabled Welding SystemsÂ
The incorporation of the IoT into robotic welding enhances data accessibility, enabling remote monitoring and predictive maintenance capabilities. IoT-enabled systems are expected to reduce machine downtime by 15% while overall welding performance is optimized through detailed analytics.
Advanced Welding MaterialsÂ
Developments in materials such as high-strength alloys and self-healing metals are broadening possibilities in many fields. These materials enable greater endurance and lighter designs in construction and transportation industries where welding is extensively used.
Such developments emphasize further progress in welding technology and the possibility of improved productivity, cost savings, and better welding results throughout numerous sectors.
The Rise of Collaborative Robots
Collaborative robots – commonly referred to as cobots – are changing the dynamics of contemporary welding by working in synergy with human operators. With cutting-edge sensors and intelligent programming, cobots augment precision, alleviate human exertion, and boost productivity. They are especially useful in small unit productions and custom jobs due to their quick adaptability to new assignments. Additionally, cobots promote a reduction in workplace accidents by mechanizing mundane or dangerous jobs, thus improving workplace safety without compromising efficiency.
Impact on the Production Line
The use of self-healing materials and collaborative robots is changing production lines for arc welding specifically by increasing efficiency and scalability. Studies show that productivity can be increased by 30% with the help of collaborative robots because they are programmed to execute tasks with utmost precision, ensuring zero defects and high quality that most industries such as automotive, aerospace, or electronics require.
Moreover, the use of self-healing materials in welding also helps in cutting down maintenance and repair costs which is a big boost in terms of economic value. Self-healing alloys, for example, can increase the lifespan of components from 25% to even 50%. When these materials are coupled with automated welding systems, operational reliability and overall return on investment also increase while downtime is lowered.
Advancements in smart manufacturing also allow for machine learning and real-time decision-making. Welding sensors and monitoring systems gather key performance indicators that help in anticipating failure and allowing for streamlining of processes. A combination of all these elements enhances customization options for customers while ensuring rapid delivery times, improved safety, and better standards without sacrificing quality.
Frequently Asked Questions (FAQs)
Q: What are the primary benefits of using robotic welding systems in comparison to manual welding?
A: In comparison to manual welding, robotic welding systems are more productive, consistent, cost-effective, and safe, and they also provide complex welds with precision. Unlike Automated welding processes, which become fatigued over time, these systems can function continuously, increasing output while minimizing errors.
Q: What benefit does the robotic welding process have in terms of overall productivity?
A: Increased productivity is directly associated with enhanced mechanization of repetitive tasks—such as in a robotic welding process—and gaining speed while reducing downtime. Welders, once set on an unlimited schedule with no breaks, can increase efficiency, quality, and the speed of production. All of these are especially true in comparison to manual welders, highlighting the automatic welders’ superiority in productivity and operational efficiency.
Q: What types of robotic welding systems are capable of performing automated welding?
A: Robotic welding systems surpass expectations and encompass varying types, such as MIG (Metal Inert Gas) welding, TIG (Gas Tungsten Arc Welding), plasma, and even resistance welding. As these robotic welding solutions can be programmed flexibly, they are applicable across numerous industrial fields and diverse materials.
Q: In what ways do robotic welding stations enhance weld quality?
A: The weld quality is enhanced through robotic welding stations due to the consistent and accurate welds that are produced. A robotic welder is capable of executing repetitive welds with consistent parameters in speed, angle, and distance. When combined with sensors and control systems, the level of consistency achieved results in very high-quality welds with lower defects when compared to manual welding.
Q: What are the key parts of an elaborate robotic welding system?
A: An elaborate robotic welding system includes industrial robot arms, a power source for welding, a torch, sensors for tracking and quality control, a control system, s with safety welding equipment, and software for programming. A few systems also add vision systems for tracking the weld seam and capabilities for offline programming the processes for robotic welding, which serves to enhance efficiency.
Q: How do you program and teach a robot for welding applications?
A: Five techniques are involved in programming and teaching a robot for welding applications. Firstly, a welding path is defined by either teaching pendant programming or offline programming software. Secondly, specific points along the welding path are taught to the robot. Thirdly, the welding parameters, such as voltage, amperage, and travel speed, are set. Finally, the program is optimized to guarantee that the desired results are accomplished properly through various tests.
Q: Are there any robotics arc welding challenges in a manufacturing setup?
A: It comes with challenges such as the cost of investment, hiring skilled programmers and maintenance technicians, integrating with existing systems, worker opposition on the potential job loss, etc. Additionally, the welding tasks which may be complex or variable, will need advanced sensors and adaptive control systems for nonconsistent quality assurance.
Q: What benefits do welding robots bring when it comes to the health and safety of users
A: The use of welding robots makes the workplace a lot safer because it minimizes the exposure of people to dangerous areas of work. Robotic systems can execute functions in the most dangerous areas like high heat zones which are filled with welding fumes, UV rays, etc. Manual welding is far more dangerous than automatic robotic welding, therefore an injury risk reduction is also present. This enables humans to perform other safer and more strategic roles while the robots execute the more dangerous tasks like welding.
Reference Sources
1. Human-machine interactive Robotic Seam Tracking System for Multi-Pass MAG Welding using Vision Sensing
- Authors: Kunxi Xue et al.
- Published: February 26, 2020
Key Findings: Â
- This work describes a robotic seam tracking system that is intended for Multi-Pass Metal Active Gas (MAG) welding. The system applies vision sensing to improve the welding structure’s accuracy.
- The method proposed enables the robotic system to adapt to different welding conditions, maintaining the quality of welds performed.
Methodology: Â
- A vision sensor for seam feature detection is integrated into the robotic system to modify the welding parameters on-line. The authors performed their experiments to test the system’s efficacy in different welding situations (Xue et al., 2020).
2. Improvement of Resistance Spot Welding Quality Estimation Using FSVM and Vision System
- Authors: D. Younes et al.
- Published: August 18, 2020
Key Findings:Â
- A method to improve RSW quality estimation using vision systems fused with fuzzy support vector machines is discussed in this paper.
- This work demonstrates that the developed system can successfully classify the quality of the welds as well as identify many of the real-time anomalies, thereby increasing the dependability of robotic welding processes.
Methodology:Â
- The authors worked with the images of weld nuggets and developed FSVM for classification. The system was evaluated in a real-world manufacturing environment (Younes et al., 2020, p. 1380).
3. A Weld Feature Points Detection Method Based on Improved YOLO for Welding Robots in Strong Noise Environment
- Authors: Limei Song et al.
- Published: November 25, 2022
Key Findings:Â
- This work created Light-YOLO-Welding, a lightweight detector for weld feature point detection in noisy environments which enhances robotic welding system performance.
- This approach improves the reliability and effectiveness of weld detection, which is key in quality assurance for automated welding systems.
Methodology:Â
- The authors designed a system based on an improved YOLO algorithm and tested the system with different noise conditions to assess its robustness (Song et al., 2022, pp. 1801–1809).
