We are excited to share with you our complete overview of the 12mm twin screw extruder! Saga Instruments Pte Ltd will explain how sophisticated this equipment is in this blog post. We cater to both practicing specialists in the relevant industry and just those who want to know more about the article’s subject. The scope of this paper includes the operational characteristics, structural features, advantages of using, and criteria for selecting a 12mm twin screw extruder. Furthermore, we will share posts on maintenance and possible problems one could encounter while using this extruder. So let us begin this seemingly interesting topic of 12 mm twin screw extruder and see how best it could suit varied industrial applications in times to come.

Contents show

What’s a 12mm twin screw extruder?

What’s a 12mm twin screw extruder?

The extruder in a greater dimensional perspective

It is my pleasure to respond to your query about the relevance of twin screw extruders in the course of my professional career concerning twin screw extruders, particularly with 12 mm models. A 12mm twin screw extruder is a versatile and efficient machine employed for a variety of purposes in the manufacturing sector. It consists of two interlocking screws located along a barrel which work in tandem to maintain materials in a process and shape. The design of the extruder allows for greater accuracy in mixing, compounding, and melting of materials; therefore, an extruder is suitable for polymer compounding, food processing, pharmaceuticals, and more.

The 12mm is attributed to the diameter of the screws, which depicts the processing ability of the extruder, which can be optimized through the use of hexagons screws. This diameter is preferred, especially during small-scale production or for research and developmental activities. The overall compactness of the 12mm twin screw extruder also ensures benefits such as minimization of space, operational ease, and low energy requirements.

In this essay, attention will be paid to the factors affecting costs while offering specific features, functions, and advantages of the 12mm twin screw extruder. In the design of the extruder, provisions could be made for modular screw elements, sections of the barrel, and temperature control systems so as to increase the efficiency of the processing technology. Some of the merits associated with the use of twin screw extruders include improved mixing, good temperature control, excellent product quality, and high output level.

Owning to the selection of materials for the above parts of the machine, the price of a 12mm twin screw extruder is also influenced by the degree of complexity of the screw configuration, together with the entrance of the entire kit of modular systems. Different sets of materials and elements can be useful in performance, longevity and, cost.

I trust this has been a short and helpful guide to the application of the 12mm twin screw extruder. Should you have any additional questions or would like any clarification, please do not hesitate to ask.

Design features of the 12mm twin screw extruder.

When it comes to features on the 12mm twin screw extruder, I am perfectly able to provide an elaborate description of how it has been constructed for the tasks at hand. These extruders are built with strict adherence to engineering principles to offer quality services in diverse fields. Some of these design aspects include.

  1. Optimized Screw Configuration: Based on careful analysis, the twin screw configuration incorporated within the 12 mm twin screw extruder is bound to improve the mixing, compounding, and homogenization of materials. This significantly improves the ability to control processes within the extrusion and the quality of end products.
  2. Modular Barrel Design: The extruder employs a modular barrel design, enabling adjustment to suit different material requirements. To improve processing, operators can increase the section of barrels by replacing them whenever barrels get worn out, thus increasing productivity by minimizing the changeover time.
  3. Advanced Temperature Control: To improve the effectiveness of the 12mm twin screw extruder, enhanced temperature control has been integrated with the twin screw extruder, whereby there are enhanced heating and cooling zones across the barrel. This provides a way of maintaining the temperature of the material at all times, such as during extrusion, which is crucial in maintaining the integrity of the products and preventing them from overheating.

These factors, along with others, account for the 12mm twin screw extruder’s efficiency, reliability, and high versatility. If you wish to learn more about this subject, please contact me.

Reasons for choosing a twin screw extruder

The twin screw extruder has many advantages, which are outlined below:

  1. Temperature regulation: Twin screw extruders possess heating and cooling sections in precise areas along the barrel. This helps control the material temperature accurately throughout the process of extrusion. Such temperature control is absolutely essential for ensuring product consistency and for reducing heat-related deterioration of the product.
  2. High level of reliability: The overall construction of a 12mm twin screw extruder and features such as the design configuration of the screws, and the built-in material handling features make the extruders more reliable in terms of performance. Such extruders are constructed to work optimally under high temperature and pressure conditions, thus maximizing productivity and maintaining regular output.
  3. Flexibility: These twin screw extruders are very flexible machines that can combine and process various materials, which include polymers, plastics, and certain constituents of food. Since these machines are capable of processing various material types and their combinations, they also provide freedom in producing a variety of end products.

What is the operating mechanism of a twin-screw extruder?

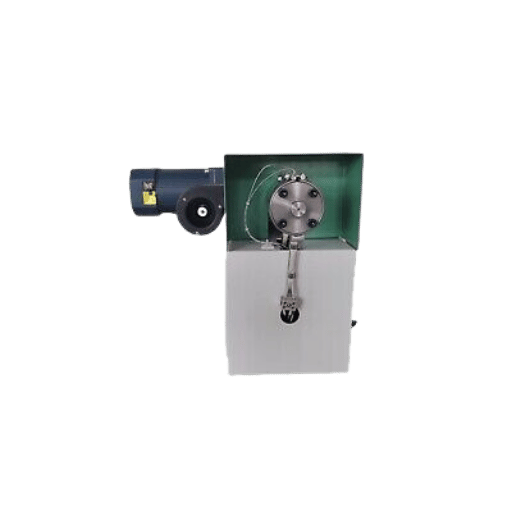

What is the operating mechanism of a twin-screw extruder?

Parts of a Screw Extruder

Many parts in a screw extruder activate one or more functions essential for performing the extrusion in a single tool:

  1. Screw: Within the extruder, the screw integrates and delivers the raw material to an intense heat and pressure area, where it is quickly converted into a molten state.
  2. Barrel: The material is pushed through this non-moving, tubular member. It provides the requisite heat and pressure to melt and mold the material.
  3. Drive: The various power/rotational components of screws such as the motor and gear reduction mechanism are the components that belong to a drive.
  4. Temperature-Controlled Systems: These systems provide the extruded materials with shear and heat at the right temperatures to facilitate optimal flow and material quality.
  5. Die: These openings or orifices give the final shape required to the extrudate.

These benchmarks of the assembly can be considered important for a complete grasp of the details that pertain to the operations of the screw extruder in diverse industrial applications.

I understand the extrusion process.

The extrusion process is in most industries a substantial and multipurpose technique. It requires raw material to be loaded into a screw extrusion device where it is heated, melted, and forced through a die to achieve a given shape. A barrel, a screw, heating and cooling systems, and a die are the screw extruder’s components and constitute essential parts for enhancing the accuracy and quality of the end extruded material.

When selecting a 12mm twin screw extruder, one of the key factors that need to be looked at is its high temperature and high pressure performance. This will help to ensure that when using the extruder, its application demands will be met. Furthermore, examining the number of screw profiles provides interoperability in processing various materials to meet different goals. Also, the control of the values of kinetic and electric components should be discussed as efficient operability and good machine construction features enhance the low maintenance cost.

Maintenance and troubleshooting can keep the extruder operating smoothly and efficiently. Diligent bone routines such as cleaning, lubrication, and inspection minimize machine downtime and extend the machine’s useful life. Technical troubleshooting methodologies and knowledge of routine problems also assist in managing problems that may develop during the machine’s use.

In this manner, balanced consideration of all the above issues as well as detailed knowledge of the extruder operation will allow you to properly select and work with a 12mm twin screw extruder and achieve high performance as well as productivity for a particular application.

Performance and Efficiency of Sequential Moisture Metering Screws

The performance and efficiency of a 12mm twin screw extruder can be affected by screw configurations. Orientation and positioning of the screw components affect the extruder’s mixing, melting, and conveying abilities which lead to consistency and quality of the extrudate output. The pitch, flight depth, and channel architecture of the screw also determine the residence time, shear rate, and pressure profile in the barrel of the extruder. The right selection and optimization of the screw configurations can improve output rates, increase mixing efficiency, improve energy efficiency, and decrease the adverse effects on the material quality. However, for adequate performance, there is a need to thoroughly assess and select the most appropriate screw configuration for a particular purpose.

This study seeks to determine what drives the cost of a 12mm twin screw extruder.

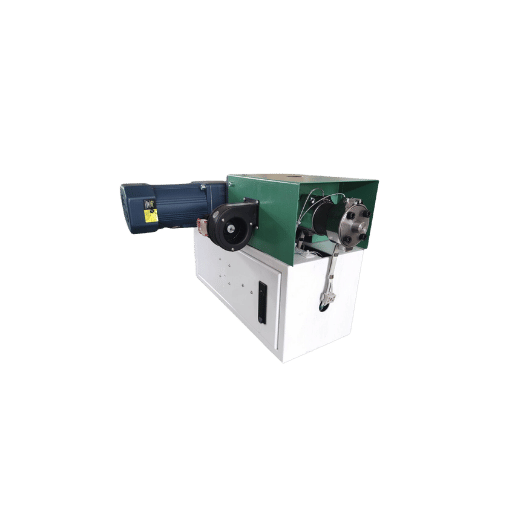

This study seeks to determine what drives the cost of a 12mm twin screw extruder.

Material and construction ponders.

Material and construction ponder these machine parts of a 12mm twin screw extruder which costs hundreds of dollars and varies in type. The type and amount of materials used for the machine components, such as barrel, screws, and gearbox, will influence the cost. Cost may also vary due to the use of high-quality materials such as hardened or corrosion-resistant steel alloys. Cost may also vary due to the complexity of machine parts, engineering, and tools. However, all these may come at a cost premium.

Role of screw components and materials

Another crucial aspect contributing to the dual screw extruder cost is the screw components and materials. Ingredients such as hardened steel alloys or corrosion-resistant alloys are ideal; hence, their inclusion will add cost. The complexity and precision of the machine parts, including their design, machining, and assembly, also impact the cost. However, their acquisition might add substantial costs.

Alternatives for complete systems for modular construction

The alternatives for complete systems for modular construction offer an effective solution for the particular extrusion requirements. If there is a need to use a 12mm twin screw extruder, the following points should be considered:

  1. Checking the capabilities of high temperature and high pressure: Confirm the maximum temperature and pressure the extruder can sustain for the required time.
  2. Looking at the breadth of applications of screw configurations: Be on the lookout for sass more specialized extruders with unique configurations for quite a few materials and processing applications.
  3. Considering touch screen and electronic components: Most contemporary extruders use intuitive touch screen interfaces and electrical components for control and supervision.

Maintenance and troubleshooting of a screw extruder, and in this case carbon steel, are important to maintain consistency of performance. Understand the typical screw component failures and reasons behind frequent operations of a test machine. At the same time, avoid any unnecessary delays order spare parts, and replace items from reputable vendors to enhance the ability to work.

How do you select the best 12 mm twin screw extruder for your needs?

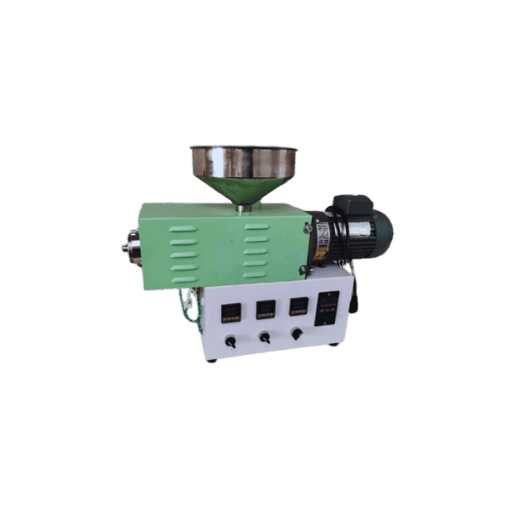

How do you select the best 12 mm twin screw extruder for your needs?

Determining maximum temperatures and pressures

When considering the 12 mm twin screw extruder for heavy applications, the determining of maximum temperatures and pressures employed is significant. Ask yourself these questions:

  • Is the extruder suitable for the heightened temperatures and pressures needed when processing specific filler materials?
  • Are there accurate controls for temperature and pressure such that these factors can be relied on for precision and repeatability?
  • Are the constructions of materials and parts suitable for high thermal and mechanical interactions in heavy-duty operations?
  • Is there enough apparatus in place to cool the device so that excessive temperatures due to long usage periods do not damage it?

These questions will help in assessing whether the 12 mm twin screw extruder of the specific model can be used in applications that involve high pressure and high temperature.

Flexibility of screw configurations in a 12 mm twin screw extruder.

Screw configurations are rigorously looked at when selecting a 12mm twin screw extruder. Tackle the questions posed below:

  • Will the extruder be able to accept various screw profiles and configurations required by the specific material processing needs?
  • Is there an easy screw elements interchangeability to adapt different formulations and product specifications?
  • Is it possible to process various materials, from powders to very thick materials, without losing efficiency and performance?
  • Is it possible to optimize the mixing, compounding, and reaction processes for a certain application?

The answers to these questions will guide you in understanding the specificity of the material processes for a particular 12 mm twin screw extruder that you intend to use and its versatility and adaptability.

Regarding touch screen and electronic components

Both the touch screen and electronics of a screw extruder should be appropriate for the processing of the material specific to your requirements. The preceding questions can be given straightforward answers, such as.

  • Yes, the design for the example allows different screw profiles and configurations to be used in practice for proper customization.
  • It must permit easy interchanging of screw elements suited to varied formulations and product specifications.
  • The range of materials that the extruder could manage with its productivity and efficiency includes powders and viscous materials, which shift the focus of emphasis more or less.
  • Such diversification is needed to successfully optimize mixtures, compositions, and reaction stages for different purposes.

By addressing the questions above, it is possible to find out if the 12mm twin screw extruder is as versatile as the other and allows for precise and efficient material processing.

Challenges faced in the maintenance and troubleshooting of a screw extruder

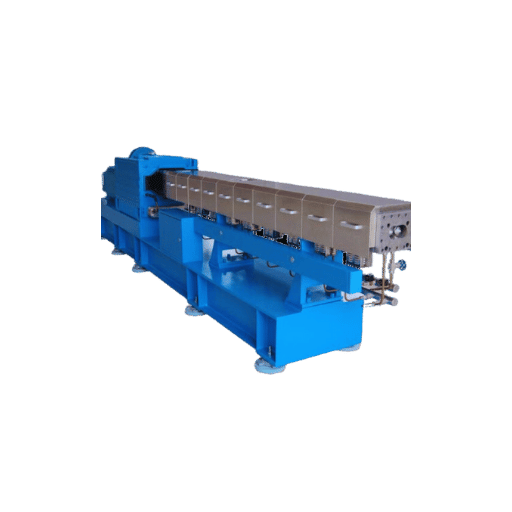

Challenges faced in the maintenance and troubleshooting of a screw extruder

Common Types of Problems Associated with Screw Components

Some challenges are possible with the screw components. These problem areas and solutions are summarized below:

  1. Form of wear: The lifetime of screw elements can be a little less than expected due to the heat and friction that occurs during extrusion. Under such circumstances, these elements will be barely effective in processing the materials. Thus, it is necessary to check and replace worn-out screw elements from time to time.
  2. Blockages: Blockages in screw channels typically occur due to the build-up of deposits or foreign bodies in the extruder and impair the flow of material and the axial extrusion of the material. Sealed joints and regular cleaning of the extruder can circumvent them. However, it is also true that these prospects are not fully discouraging when good filters are implemented.
  3. Oxygen study: Coronation may be studied depending on the processed materials. Screw elements may, from time to time, be attacked by aggressive substances causing a slow deterioration of the screw elements. Solutions for such problems include the selection of correct screw elements for the material type and utilizing coatings that are resistant to corrosion.

Focusing on these frequent problems will help bring about the proper functioning and durability of your screw extruder, reducing the time lost and increasing plants’ productivity. Such actions as routine maintenance, surveillance, and proper treatment of these defects are essential for the equipment’s reliability and reproducibility in material processing in the extrusion system.

Significance of regular test machine operation

The significance of regular test machine operations cannot be overstated in improving the efficiency and the dependability of your screw extruder. By regularly performing test machine operations, you can:

  1. Detect Issues Of Performance: Testing is greatly useful since it is likely to enable one to identify and solve any performance issues before it is too late. This includes diagnosing material flow problems, overheating issues, and excessive wear to be resolved early in time.
  2. Referral Process Parameters Settings: Regular testing will allow the process parameters like temperature, screw speed, and feed rate to be calibrated. By testing these parameters on the output and quality of the extruded material, these parameters can be set to achieve the peak efficiency and quality of the operational output.
  3. Assessment Of Machine Improvements: For instance, if you have been carrying out upgrades or changes to one of your screw extruders, regular testing highlights the gains made from such changes. It enables one to see how such changes affected the extruding process and what changes, if any, are still required.

All in all, it would be prudent to undertake regular changes on test machine operations to prepare for any future external or internal processes, increase the applicable process parameters and finally assess the effectiveness of any machine enhancements.

Sourcing spare parts and replacements

spare parts Specific spare parts of screw extruders here refer to the upper block, barrel, and screw, which are used for specialist machinery, including plastic injection and other dry powder mechanized machines. As mentioned above, the Alloy aluminum valve is a spare part made available by the websites at competitive rates as the manufacturer customized this specific alloy valve, which is made available to those who need it. Most of the websites that are present online claim to stock the valve most of the time. The websites, and some others, are also claiming to have a variety of spare parts for a screw extruder, specific parts that are associated with it – what do these websites usually include on their list? Replacement parts are mandatory for any screw extruder – bearings, screws, and other types of parts. Most industrial plants buy the spare parts in bulk, thus decreasing the average purchase price or stockpiling such parts in case of future breakage. Dominantly all of the plants that possess a screw extruder also fabricate a few of them or construct them on their own. Whenever such a possibility exists, machine parts are made to order provided precise and rather specific assortments are marketed. Most such orders are secured through the Internet. Additional research has also shown that most of these companies do have spare parts and equipment that can be used effectively on screw extruders.

Frequently Asked Questions (FAQs)

Frequently Asked Questions (FAQs)

Q: What is a 12mm twin screw extruder and how does it work?

A: A 12mm twin screw extruder is a highly advanced industrial equipment designed for mixing, compounding, or extruding substances, including those that are aluminum alloy-based. The design incorporates two screws that intermesh & rotate within a barrel leading to efficient mixing & processing. What is meant by the phrase 12mm? The measurement refers to the screw diameter, therefore, making it ideal for use in research or mini-production plants.

Q: What materials are used in the construction of Saga Instruments’ 12mm twin screw extruder?

A:  From the construction materials point of view, it should be noted that Saga Instruments 12mm twin screw extruder incorporates high-quality materials. The barrel and screws usually are the biggest wear parts used in such devices and are made of stainless steel or tool steel of some specialized alloy. In the case of cobalt-cemented tungsten carbide or carbide-reinforced ceramics inserts, the element becomes higher in resistant strength.

Q: What are the advantages of using twin-screw over single-screw extruders?

A: Twin-screw extruders are lower in price because they have welding capabilities; one of the most appealing features of twin-screw extruders when compared to single-screw extruders is due to better mixing mechanisms, better heat transfer, lower residence times, and greater versatility of materials processed. The 12mm twin-screw configuration, however, ensures optimum screw configuration configuration for better control of the extrusion process.

Q: Is it capable of high pressure applications?

A: Yes. Saga Instruments’ 12mm twin screw extruder was built for high-pressure applications. Because of heavy-duty elements and high-precision screw shafts, the equipment can maintain the pressures that are typical in the extrusion processes. Furthermore, the installation of special seals and flanges allows for high-pressure applications to be safe.

Q: What industries are suitable for using a 12mm twin screw extruder?

A: The 12mm twin-screw extruder from Saga Instruments is multipurpose. It can be applied in different spheres, such as plastics, pharmaceuticals, the food industry, or laboratories. It is noted to be particularly efficient in areas like the development of novel materials, limited production of special compounds, and polymer and material science research activities.

Q: To what extent is the 12mm twin screw extruder from Saga Instruments customizable?

A: There is a large scope of customizing options for the 12mm twin screw extruder manufactured by Saga Instruments. The machine allows for optimum flexibility of screw configurations, with screw elements and barrel sections being interchangeable. This will allow users to adapt the extruder to particular applications, materials, and processing requirements. Custom options may include various materials used in screw components, metal surfaces, feeding, and downstream equipment.

Q: What assistance and service does Saga Instruments render for its 12mm twin screw extruder?

A: The 12mm twin screw extruder manufactured by Saga Instruments is maintained and serviced regularly as per their company policy. This involves installing the components, training the operators, troubleshooting problems, and following up with the scheduled maintenance of the extruder’s aluminum alloy parts. There is also an assurance of spare parts and wear parts for the machine handle, such as composite industrial-grade tungsten carbide.

Q: What characteristics make the 12mm twin screw extruder a good choice for scale-up, compared to larger extruders?

A: Larger production plants tend to use bigger extruders as they support more output. However, the 12mm twin screw extruder remains efficient for low production and research operations, especially when fillers are employed. Its small size guarantees faster material substitution, decreased material depreciation, and lower power costs. With such a twin screw design, rapid dispersions of substances are assured, plus the great quality of the output, which assists in the production of small-scale rubble formulations or even for specialized compounds.

Reference Sources

  1. “Hydrodynamics and mixing performance in a continuous miniature conical counter-rotating twin-screw extruder” by Sicheng Xin et al. (2022-03-21):
    • Key Findings: This study focuses on the mixing performance of a small twin-screw extruder with a conical counter-rotating twin-screw configuration, which is addressed experimentally as well as through computational fluid dynamics (CFD) simulation. The investigation is concentrated on the influence of various screw speed and feed rate on the hydrodynamics and mixing performance.
    • Methodology: The study uses experimental techniques and CFD simulation to evaluate the residence time distribution (RTD) and mixing efficiency. The finite element method (FEM) and mesh superposition technique (MST) are employed for hydrodynamic simulations.
  2. “Machine learning assisted optimization of blending process of polyphenylene sulfide with elastomer using high-speed twin screw extruder” by Shingo Takada et al. (2021-12-01):
    • Key Findings: This research applies machine learning to optimize the blending process of polyphenylene sulfide with elastomer in a high-speed twin-screw extruder, enhancing the performance of the 12 mm system. The study highlights the potential of machine learning in improving the efficiency and quality of the blending process, especially when using high precision equipment.
    • Methodology: The study utilizes machine learning algorithms to optimize the blending parameters, demonstrating the integration of advanced computational techniques in the extrusion process.
  3. “Optimization of 3D printing parameters of twin-screw extruder for high concentration nanocellulose” by Jaehwan Kim et al. (2021-03-22):
    • Key Findings: This paper presents an experimental study on optimizing 3D printing parameters for high concentration nanocellulose using a twin-screw extruder. The study identifies optimal parameters for achieving high accuracy and quality in 3D printed structures.
    • Methodology: The research involves experimental optimization of processing parameters such as screw speed, feed rate, and printing speed, using a twin-screw extruder for 3D printing applications.
