The advent of laser technology has made it easier to accomplish complex tasks thanks to precision, accuracy, and the non-invasive qualities embedded within the technology. Laser cleaning systems and surgical lasers for ablation are among the most advanced designs, changing surface treatment methods and material removal. This article will discuss the sophisticated systems, how they operate, their benefits, and the numerous industries they serve. This guide will shed light on the multiple possibilities laser solutions provide, fulfilling diverse purposes ranging from improving industrial operation efficiency to adopting eco-friendly technologies for the clean and material processing industry.

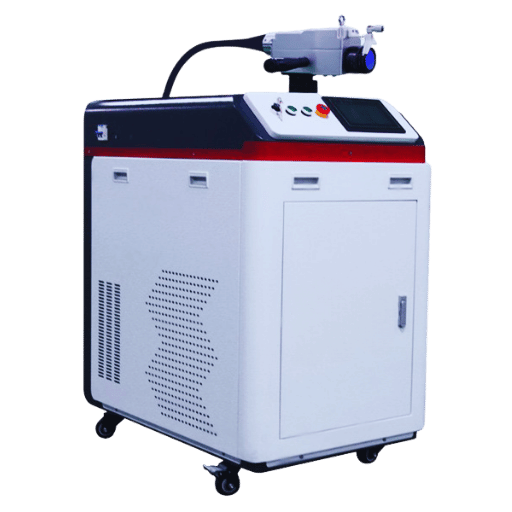

What are Laser Cleaning Machines, and How Do They Work?
Laser cleaning machines use laser technology to remove unwanted materials, including rust, paint, and other residues, from any surface. They operate by emitting powerful laser beams that focus on the unwanted material, breaking or vaporizing it without harming the surface underneath. This makes the process highly precise and efficient, thus making it useful in manufacturing, aerospace, and conservation industries. Pieces of equipment are used for industrial purposes due to their precision, efficiency, and cleanliness, achieved without chemicals or waste production, making laser cleaning safer and more eco-friendly than traditional methods.
Understanding Laser Technology in Cleaning
Laser cleaning employs focused light energy to eliminate contaminants like rust, paint, and residues from a surface. This method applies laser technology to practical uses and is also helpful for industrial, artistic, and scientific purposes. The laser’s energy interacts with the surface layer without damaging the substrate. Because of its ability to restrict damage to surrounding regions, it is very effective in precision cleaning applications. Its common uses include maintaining industrial equipment, restoring cultural artifacts, and preparing surfaces for manufacturing. It is non-abrasive (does not wear contact surfaces) and requires fewer harsh chemicals, producing additional waste. This type of cleaning is highly regarded for its effectiveness and environmental benefits.
The Role of Laser Beam in Surface Cleaning
The focused energy that penetrates the material surface using lasers helps eliminate contaminants without physically harming the surface being cleaned. The process is based on the emission of high-power light pulses that disintegrate the covering objects on the surface of the material. Further, it is one of the most effective cleaning methods since it requires no chemical solvents and creates little waste.
How Laser Cleaning Systems Target Contaminants
Laser cleaning systems direct laser pulses to the target’s surface to eliminate contaminants. Every pulse interacts with the unwanted material: rust, paint, or residues, and those materials are heated in a matter of nanoseconds; they either disintegrate or evaporate. Even the energy administered during this process is rigorous and controlled, guaranteeing that only the contaminants are dealt with and the base material remains unscathed. This principle has no regard for the shape of the contaminant, which ensures its effective elimination while at the same time respecting delicate surfaces.

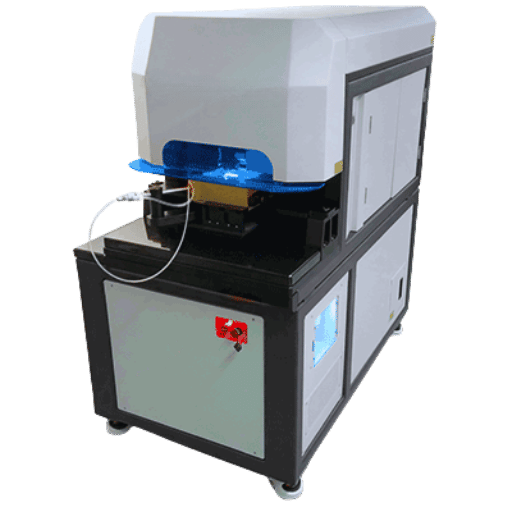

Exploring Industrial Applications of Laser Ablation Technology
Key Industrial Laser Applications
- Surface Cleaning: Laser ablation is used to remove rust, paint, grease, and other contaminants from the surface of metals, plastics, and composites due to its accuracy and lack of damage to the underlying material.
- Material Processing: Laser ablation is used by various industries for cutting, welding, drilling, and surface texturing, achieving high levels of accuracy and uniformity in every aspect of manufacturing.
- Semiconductor Industry: It is essential in micromachining and patterning for semiconductor processes due to its capability of creating intricate designs without damaging the material.
- Medical Device Manufacturing: Medical device machining is done through laser ablation, ensuring precision and rigid compliance with industry standards.
- Aerospace and Automotive: Laser ablation is used to remove coatings and clean components, as well as perform precision machining, which enhances the efficiency and durability of the products.
The Impact of Laser Ablation in Automotive Industries
Laser Ablation has opened new avenues in different sectors, including automotive, as it is a highly accurate, efficient, and non-intrusive approach to various applications like laser cutting. It is extensively used to remove paints and coatings to achieve clean surfaces without undermining the materials beneath. Additionally, this technology improves production processes such as the high-precision machining of components, improving the overall working and reliability of parts. Additionally, cleaning and preparing surfaces to be bonded contribute to the strength and durability of protective coatings, which fulfills the industry’s demands for quality and reliability. Laser ablation is a crucial innovation in modern automobile production thanks to its cleanliness and precision.
Benefits of Laser Processing Over Traditional Methods
In contrast to traditional methods, laser processing offers many significant advantages. Firstly, it cuts and designs materials with unparalleled accuracy, eliminating excessive material wastage. Since laser processing does not contact the material’s surface, tool wear is mitigated, ensuring consistent quality. Thirdly, it possesses unmatched versatility and can work with an extensive range of materials, including polymers, metals, and ceramics, making it ideal for laser ablation. Finally, laser processing enhances productivity as it is faster and more energy efficient, supporting sustainable manufacturing practices. All these benefits make laser processing lasers the preferred choice for industries that demand efficiency and precision.

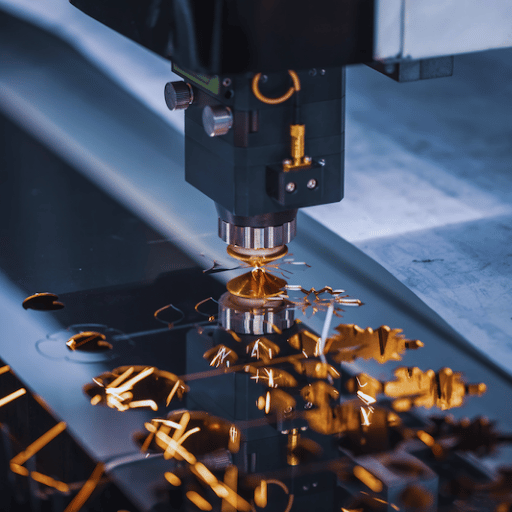

How Laser Ablation Protects the Substrate?
The Science Behind the Ablation Process
Laser ablation describes a process in which material, to a substrate, is meticulously removed layer by layer using a laser while causing minimal damage to the underlying material. It all starts when the substrate is exposed to a high-intensity laser beam at the surface. The submerged portion of a solid object, referred to as a substrate, is around the surface of which a concentrated energy is directed. Due to the energy from the laser beam, the temperature of the substrate is increased, which then causes the surface layer, or rather re-face, to evaporate or sublime.
The efficiency of laser ablation depends on two critical factors. The first is that the wavelength of the laser needs to fit the absorption properties of its material. Metals, for example, tend to need higher absorption at shorter wavelengths. Ceramics and polymers, on the other hand, might do better at longer wavelengths. The second factor is the pulse duration of the laser. For fine details, femtosecond and picosecond lasers are usually used because they limit heat transfer and damage from heat.
Recent developments have enhanced the precision and control associated with laser ablation technology. Material Science suggests that devices known as ultrashort pulse lasers, capable of a few microns of spatial resolution, are suitable for microelectronics, fabrication of biomedical devices, and surface texturing, among other fields. In addition, the process greatly reduces residual stress and guarantees a clear, uncontaminated substrate vital for sensitive materials.
The adoption of laser ablation in manufacturing industries has increased due to its advantages in processing delicate and intricate geometries. The high degree of control over the deposition region enables detailed work without damaging the surrounding material. This advantage makes laser ablation ideal for thin-film removal, precision engraving, and semiconductor fabrication tasks. Combining physics and engineering with material science enables the development of efficient and sustainable manufacturing technologies like those discussed above.
Maintaining Surface Preparation without Damaging the Substrate
Achieving surface preparation without affecting the underlying substrates with precision tools and techniques tailored for minimal interference. Preservation of the substrate while removing residues is often achieved through non-erosive techniques such as laser cleaning, chemical etching, or laser ablation. Adjusting the process parameters, including the application intensity and duration, will ensure that only the intended layers are affected. Continuous observation and regulation are necessary throughout the process to ensure the desired results are reached without undermining the substrate’s quality.
What is the Ablation Threshold, and Why is it Important?
The ablation threshold is the energy density or power value at which material removal becomes effective, typically during laser ablation or plasma etching. This value depends spatially on the substrate’s optical, thermal, and other physical features. Metals, for example, have higher ablation thresholds than polymers or ceramics because of their density and thermal conductivity. For example, removing rust from a metal is more difficult than removing it from a polymer.
Strategic measuring of the ablation threshold becomes crucial in precision industries, including semiconductor fabrication, micromachining, and biomedical device manufacturing. When operating above the threshold, the material can be removed without including melting the region around it. Femtosecond laser systems are often utilized for this purpose because they deliver energy in the form of small pulses, which minimizes thermal diffusion into the areas that are not targeted.
Recent advancements highlight some of the finest tuning that can be done during ablation, such as changing pulse duration, wavelength, and fluence, which can break the boundary of achieving sub-micron precision. Crossing this boundary would greatly benefit nanotechnology and mass-producing medical implants. Proper calibration of the material’s specific ablation threshold can increase efficiency and decrease wastage, thus fostering savings and environmental sustainability.

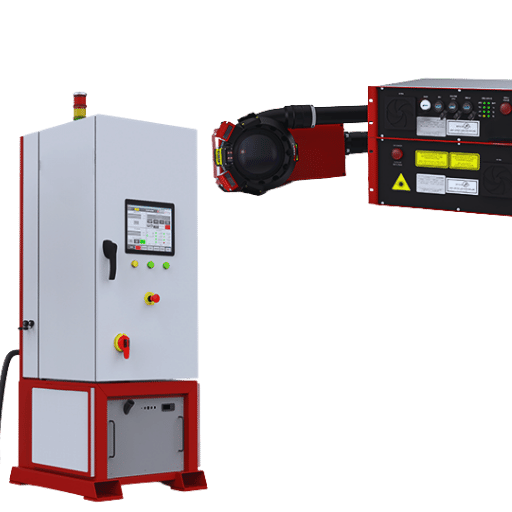

Why Choose Laser Cleaning for Environmentally Friendly Solutions?
Environmental Impact of Laser Cleaning Technology
Laser cleaning is a modern and environmentally friendly cleaning approach compared to traditional cleaning techniques. Unlike chemical solvents or abrasive techniques, laser cleaning does not generate waste or toxic substances. This method of cleaning uses a laser beam to concentrate energies, thus eliminating the need for water or chemicals. Furthermore, the secondary waste generated from such a process is dust or residue, which can be contained or filtered. Compared to other industries, laser cleaning is precise and optimizes the use of resources, thereby aiding in the sustainable development of compliant industries.
Comparing Traditional and Environmentally Safe Cleaning Methods
Customary cleaning techniques use chemical solvents, abrasive equipment, or water, which can be detrimental to the ecosystem and harmful to one’s health. This may result in the emission of poisonous gases, overconsumption of water, and secondary pollutants.
Green cleaning methods, like laser cleaning, focus on sustainability by removing harmful substances and water or reducing their use. These methods create a cleaner environment’s cleaner and can be done with less harm to health and the environment. This boosts the reliability of green alternatives, which actively contradicts modern laws.
Real-World Laser Cleaning Applications Without Harmful Effects
Numerous real-world applications benefit from the environmentally friendly and precise results laser cleaning offers. Its use is prominent in aerospace, automotive, and cultural heritage sectors. A good example of its application is cleaning rust, paint, and other dirty materials from metal parts without physically touching the underlying material. Moreover, laser cleaning is used to preserve historical artifacts and fine art because it cleans sensitive surfaces without damaging them. Thus, these applications demonstrate the effectiveness of laser cleaning while considering environmental and safety regulations.

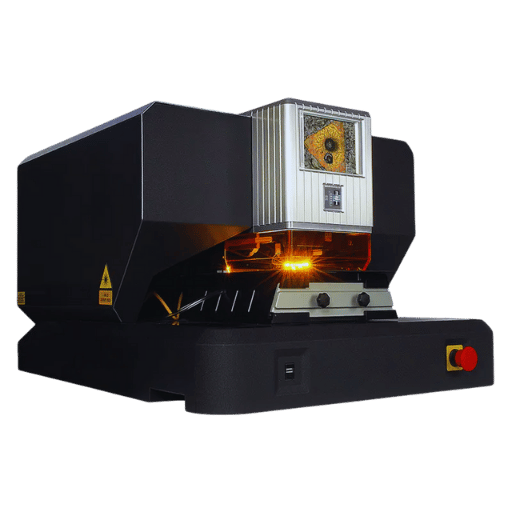

Understanding the Mechanics of Laser Ablation Applications
How Does Laser Ablation Work in Paint Removal?
The paint removal process by laser ablation involves the application of a focused laser beam to the paint surface. The energy emitted from the laser is captured by the paint, resulting in its rapid heating and subsequent breakdown into smaller particles through sublimation. These particles undergo removal through vacuums or filtration systems that guarantee a clean surface. This technique removes the paint layers without causing any damage to the underlying material, making it precise and meticulous. Instead of traditional paint removal methods using chemical solvents and abrasive tools, this technique is efficient, environmentally friendly, and sustainable, although temporarily, it may be dubbed laser cleaning.
The Role of Pulsed Laser Beam in the Ablation Process
Ablation is assisted by applying pulsed laser beams, which provide energy for decaying bursts. This pulsing guarantees that the energy is not too high to vaporize the targeted material while simultaneously breaking it down. The Tunable duration, amount, and intensity of the pulses provide efficiency, making it suitable for sensitive tasks like laser cutting, paint removal, or surface cleaning. With this approach, there is less risk of injury and unnecessary destruction and it guarantees better results.
How Laser Power Influences Laser Ablation
The laser power directly correlates to the energy delivered to a material during ablation, which affects the efficiency and accuracy of the process. For example, an increase in laser power increases the material removal rate, which can lead to the desired effect being achieved faster, but often at the cost of losing precision if adequate measures are not implemented. On the contrary, higher accuracy can be achieved with lower laser power since the material impact can be meticulously controlled, which is great for delicate applications. Adjusting laser power concerning the material to be ablated, the type of material, and the job requirements is crucial in achieving the desired results while avoiding causing damage.
Frequently Asked Questions (FAQs)
Q: What is laser cleaning, and how does it work?
A: Laser cleaning employs laser light to remove waste, such as rust and other coatings, from a given surface. It works by selectively ablating or vaporizing the unwanted material without damaging the underlying material, effectively cleaning surfaces and lowering risk.
Q: How does laser ablation differ from traditional cleaning methods?
A: Unlike traditional cleaning methods, which may involve chemicals or abrasives, laser ablation and cleaning use focused laser light to remove coatings and rust using thermal and photochemical energy. This method is also known for its noninvasive cleaning, which preserves the exposed surface areas.
Q: Can laser ablation be used on all types of surfaces?
A: An advantage of laser ablation is its application to a broad range of surfaces like metals, plastics, and composites. The only restriction is the type of surface one is dealing with and the configuration of the laser system used. Adopting the correct laser cleaning solutions for each material type is equally important.
Q: What are the advantages of using a fiber laser for industrial laser cleaning?
A: Like many technologies, fiber lasers offer advantages related to precision and efficiency. These lasers are low maintenance for industrial laser cleaning, have high energy output, and are highly precise in small focus areas, which is ideal for detailed cleaning.
Q: Is it possible to remove coatings without damaging the underlying material?
A: Indeed, the accuracy with which lasers can be controlled allows for precise coating removal while leaving the underlying material intact. Adaptations can be made so that only the unwanted layer is destroyed while the material underneath will not be damaged.
Q: How safe is the process of laser cleaning?
A: If done correctly, laser cleaning is a secure technique for removing contaminants; it is safe and effective. Like any other procedure, there are guidelines to be followed, like wearing protective goggles and adequate ventilation to filter out the waste materials. If these materials are inhaled, they may pose a risk for a short period.
Q: What factors affect the effectiveness of laser cleaning systems?
A: Effectiveness is determined by the type of laser pulse used, whether a continuous wave or femtosecond laser, the characteristics of the surface being cleaned, and the thickness of the coating or rust.
Q: Do laser systems have limitations in the cleaning processes?
A: Indeed. Although laser systems are multifunctional, their use can be limited to the materials that can be efficiently cleaned and the dimensions of the surface area. More cleaning work in industrial settings might best utilize a combination of laser and cleaning techniques alongside traditional handheld tools.
Q: How does adaptation in systems affect cleaning services done with lasers?
A: Modification permits changing components within the laser systems, allowing for more specificity in the cleaned materials. Industrial cleaning processes are streamlined by changing the laser’s wavelength, pulse duration, and energy to remove esoteric unwanted materials.
Q: What role does the underlying material play in the effectiveness of laser ablation?
A: The described phenomena directly impact how energy from the laser is absorbed and how well the surface can stand up to the laser exposure, particularly in the case of laser ablation. For instance, highly adhesive materials may demand specific laser parameters to efficiently ablate surface coatings without inflicting damage.
Reference Sources
1. Study of The Multimechanism Laser Cleaning Dynamics For Rough Fused Silica Surfaces With Organic Contaminants, A Computational Simulation And Atomic Examination: Contaminant Disengagement on Silica Substrates Using a Laser
- Authors: Tingting Wang et al.
- Journal: Langmuir
- Publication Date: October 9, 2023
- Citation: (Wang et al., 2023)
- Summary:
- This work uses molecular dynamics techniques to solve the problem of organic contamination of optical elements of high-energy laser systems. It is focused on the interaction between laser-fused silica and contaminants, considering the effect of surface roughness on fragment liberation.
- Key Findings:
- Organic contaminants are incorporated into optical elements due to exposure to radiation from a laser.
- With increasing laser flux, the contaminants break down into smaller molecular clusters.
- The ablation process has two steps: The thermal expansion phase and the Thermal ablation phase.
- Removing rougher surfaces is easier due to enhanced thermal expansion and vaporization of contaminants like steam and tropospheric distortions, which leave behind the debris of vaporous expansion.
- Methodology:
- The principles of laser cleaning simulation guided investigations on rough surfaces, and surface dynamics with contaminant adhesion were adopted by employing laser ablation.
2. Using Stencil-Assisted Laser Ablation for Steps Reduction in the Polymer Membrane Suspended Microstructures Fabrication on a PCB’s
- Authors: Simon Binder et al.
- Journal: Journal of Microelectromechanical Systems
- Publication Date: August 1, 2023
- Citation: (Binder et al., 2023, pp. 302-304)
- Summary:
- This work describes the new technique for fabricating polymer membrane microstructures through laser ablation, which automates processes in many steps.
- Key Findings:
- Increased method efficiency does not decrease the rate of successful suspended microstructure fabrication.
- Outdated fabrication steps incorporate hard masks, and etching procedures are modified to sequential laser ablation.
- Methodology:
- The study was based on implementing and testing the new process and comparing it against the older methods in terms of time and resources consumed versus efficiency.
3. The Impact of Ultrasonic Cleaning on Secondary Electron Yield, Surface Morphology and Surface
- Author(s): J Wang and others
- Journal: Materials Innovation
- Publication Year: 2023
- Citation: (Wang et al., 2020)
- Summary:
- This study determines the impact of ultrasonic cleaning on the properties of aluminum alloy laser treatment, paying special attention to SEY and surface parameters.
- Key Findings:
- SEY increases with subsequent stages of ultrasonic cleaning of laser-treated aluminum alloys.
- The surface topography and chemistry significantly affect secondary electron yield.
- Methodology:
- This research was conducted through SEY measurements, surface analysis activities, and assessment of geometric features before and after cleaning.
