Mastering the Art of How to bend sheet metal with Ease

Bending sheet metal is a fundamental skill for many industries, such as construction, automotive, DIY projects, and art. Mastering this skill not only enhances an individual’s craftsmanship but also allows for the creation of custom designs efficiently. Regardless of whether a person is a professional or a beginner exploring metalworking, understanding the tools and techniques of bending a sheet metal will improve the quality of their work. This guide will walk you through a set of essential strategies and insights that will enable you to revive the process and achieve results consistently, effortlessly, and confidently.

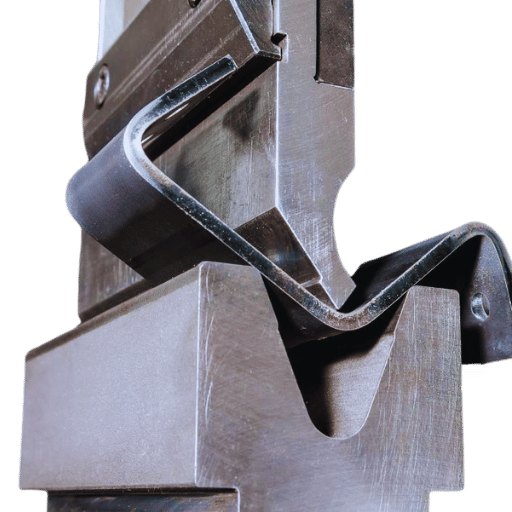

What is the best way to bend sheet metal?

The optimal method for bending sheet metal relies on the available tools and the level of precision needed. For maximum effectiveness, a metal brake is used. It provides the operator with both speedy work and high-quality results. On smaller-scope jobs where a metal brake is not available, smaller vices and mallets can be used. While this method does require more work manually, it is more practical for smaller scope jobs. Always double-check that the sheet metal is fixed tightly before any bending is done to mitigate unwanted damages. Also, make sure to complete the desired angle slowly to lessen the chances of over-bending. In the end, closely consider what tool will yield the best results based on the material thickness and detail of the intended bend.

Understanding material thickness and way to bend

While bending materials, thickness is crucial as it determines the method and tools needed. Thin materials, usually under 1/16 inch (1.6 mm), are often pliable enough to be bent with rudimentary tools like a vice and mallet. For thicker materials exceeding (more than) 1/8 inch (3.2 mm), a metal brake and hydraulic press are recommended to ensure precision without rupturing the material. Keep the bending radius proportional to the thickness—thicker materials sustain structural integrity with larger radii and tend to crack if tighter bends are applied. By following these recommendations, clean, accurate bends are made while maintaining the strength of the material.

How do you mark your bend lines accurately?

As with any other component, marking bend lines requires accuracy and tool precision. First, obtain the best measurement with a caliper or steel ruler and look for the placement of the bend. Carefully etch the line using a scribe or fine permanent marker so that it stays visible throughout the bending. In highly professional environments, enhanced precision is extremely crucial, so laser-guided marking tools are best. These tools employ laser beams to straighten and project sharp lines on the surface of the material, thereby ensuring that there are no errors.

There are also other bend factors which account for material stretch, compression (in the case of stretching), consider bend allowance and bend deduction. Bend charts and bend tables can provide crucial information needed for these calculations based on the materials’ type and thickness. Engineers tend to lean towards formulas such K-Factor for finding the neutral axis and calculating the amount of material that is bound to deform. Keeping in mind all of these parameters ensures accuracy and consistency in the accuracy of the structure.

Choosing the right metal brake for simple bending

When choosing a metal brake for basic bending operations, a range of aspects must be evaluated to make sure the tool can accommodate the type of material, thickness, and level of quality desired for the bend. Here is an outline list of guiding considerations as well as supporting information:

Material Type

Various materials have different grades of tensile strength and malleability, such as aluminum, steel, stainless steel, and copper. It is important to note that the metal brake used can perform on the specific material without breakdown or undue wear. For example:

• Aluminum (typical tensile strength ~70-300 MPa) is less force-demanding than steel.
• Stainless steel (~480-620 MPa tensile strength) demands greater brake capacity.

Material Thickness

Metal brakes have a thickness limit that ranges between gauges or millimeters. Going beyond the stated limits could lead to improper angles, excessive strain on the tools, or tool breakdowns. For example:

• Light-duty brakes are limited to 1.6mm (16 gauge) steel.
• Heavy-duty brakes undertake materials starting from 2.5mm (12 gauge) and thicker.

Bend Length

• The size of the brake is determined by the length of the bend to be performed.
• Small shops use 24-inch (600mm) or 36-inch (900 mm) brakes for bends over short lengths.
• Most industrial applications require at least an 8-foot (2.4 m) reach for the brakes.

Bend Angle Precision

• User-friendly and less complicated bends could require less precision, but for repeatability and accuracy in production, it is critical to pick brakes with angle adjustment controls, clear markings, and set tolerances as demanding as ±0.5°.

Brake Type

Pick the right type of brake depending on your needs for bending.

• Manual Brakes – Most suitable for low-volume production and working with thin materials. Box-and-pan brakes, for example, can be used to form complex shapes.
• Hydraulic Brakes– Best for medium to heavy-duty bending where powered assistance and greater force is required.
• CNC Press Brakes– Used in production environments for intricate designs that require repetitive complex cutting with high-precision machines.

Considerations for the budget

• Manual brakes can cost anywhere between $500 and $5,000, depending on their size and features.
• Hydraulic brakes usually cost around $10,000 to $100,000.
• CNC press brakes start at $50,000, though more advanced models can go over $300,000.

These pieces of data serve as a guide however the individual users from shifts need to analyze this information if they wish to ensure that selected metal brake system upholds operational efficiency alongside precision and safety.

How to bend stainless steel at Home?

Essential diy metalworking tools

The right tools can aid in preventing any issues along the way of bending stainless steel at home. Some tools essential for DIY metalworking include:

1. Bench Vise – Provides an immovable hold of the object which makes it easy to bend the metal piece.
2. Rubber Mallet or Hammer – It enables one to mold the aluminum with no surface damage to the steel.
3. Angle Grinder – Quite handy when it comes to cutting or polishing edges before the object can be bent.
4. Heat Source (e.g. Propane Torch) – Used to heat up the stainless steel in an attempt to make it bendable.
5. Steel Bending Brake – Has features that enable one to achieve the degree of precision and accuracy even for small home projects.

In an attempt to achieve precision and quality in bending stainless steel, these tools can be quite handy. It is also important to exercise safety measures like protective gloves and glasses, while working with metal.

Techniques for using heat when bending

Heating is essential for bending stainless steel, especially when dealing with thicker or more difficult materials. The heat will relieve a metal’s internal stress, thus it becomes easier to bend without cracking. Here are some ways to apply heat effectively, along with other important tips:

Preheat the Steel Evenly

• Heat the stainless steel within the bending zone uniformly to bring it to the desired pliability. Depending on the size and thickness of the material, you can use either propane torches, oxy-acetylene torches, or induction heaters. The desirable temperature is around 1400°F-1700°F, Depending on the size and thickness of the material you are using the temperature can always differ. Remember that stainless steel doesn’t change colors as it gets heated – unlike other metals, therefore, utilizing a temperature gauge or infrared thermometer will be vital.

Avoid Overheating

• Oxidation resulting from overheating will weaken the stainless steel’s protective layer of chromium oxide, thus affecting its overall ability to resist corrosion. Therefore, moderation must be maintained while heating to preserve the product. Ideally, heat should be focused on the bend area, but never let the temperature reach above 2000 °F, with 2,000°F being the most optimal as excessive heat will damage its structure.

Gradual cooling for structural stability

• Ultet reinstept Xxryl The metalleneous constituent should undergo a slow cooling process post completing the bend. Uncontrolled rapid cooling, like an instantaneous plunge into water, can lead to thermal shock, creating stress fractures the structures deems unfavorable. In most situations, air cooling is favored as it maintains the steel’s impact toughness without rendering it brittle.

Localized heating for precision bends

• For a smaller bend or more elaborate designs, use a localized heating approach to concentrate heat on a particular region or area of the part. This technique aids in making the part pliable with little impact on the surrounding portions of the material which further mitigates unwanted deformation beyond the desired bend region.

Safety precautions during heating

• There are set safety regulations to be followed when dealing with an open flame or equipment that produces high temperatures. To reduce the chances of burns or exposure to radiant heat, it requires the use of gloves that don’t conduct heat, a welding mask and fire resistant clothes.

By combining precise techniques with the right tools like heating devices, stainless steel can be bent with no worries of losing impact strength or precision.

Step-by-step transcript for home bending

Prepare the Work Area

• To avoid risks, clean and ventilate the workspace while ensuring it has no flammable items. Use a sturdy work surface that can withstand high temperatures while supporting the material that is to be bent. Proper lighting is also important for the work area.

Gather the Required Tools and Materials

Before starting the bending procedure, all required tools and materials should be acquired. The items necessary for this procedure include the following:

• A heat source like a propane torch or heat gun.
• Protective hand gloves, safety goggles or glasses, and fireproof clothing.
• If available, a bending jig or template. Measure the sleeve with tap, claw, or calipers.
• Permanent marking pen or chalk.
• Clamping tools such as vises or screws to hold the material in position.
• The steel bars or pipe or sheet are to be bent.

Measure and Mark the Bending Area

• To ensure the marking process is as accurate as possible, use a precise measuring tool to identify the intended bending area, as well as its intended angle. For guiding purposes, mark the area using a clear and a marking tool which can withstand high temperatures. Correct marking guarantees the result is close to what is wanted.

Secure the Material

• Position the stainless steel into the required place by using a vice or clamps. The required area is the middle portion of the bending region so that it is visible. The outside portions must still be supported to eliminate movement or bending of the material, but the inside area is what enables vertical support.

Distribute Heat Evenly

• Make use of a propane torch or a heat gun to uniformly and gently heat the marked services of the bend. Pay attention to keep the motion consistent to not allow any overheating in certain areas. If possible for stainless steel, heat it to around 1,500°F (815°C) which is its malleable range. If you possess an infrared thermometer, employ it to check the temperature periodically.

Bend the Material

• With the proper temperature of the material reached, you can start applying pressure on the bending area with the aid of a bending jig, pipe bender, or manually with the right tools. Try to not hurry the work to avoid cracks and other forms of distress. While doing this, check the angle from time to time to confirm if it is correct.

Cool and Study the Bend

• With the bending done, set the measuring tool aside and let the material cool naturally to room temperature. Do not attempt to quench with water as it can create stress fractures on the stainless steel. Conduct a systematic check on the bend after it has cooled for uniformity, accuracy, and any form of structural weakness. Measure the result to see if it satisfies the specifications.

Final Adjustments and Finishing

• Minor adjustments are allowed so long as they are not too forceful in nature when the bend is completed. To give it a fine-looking appearance, use polish or sand on the surface of the bend where the discoloration or some imperfections need to be removed. Confirm the measurements to ensure the design is currently matched by the bend.

If you adhere to safety measures and the steps mentioned above, bending stainless steel at home can be done professionally and precisely.

What are the Right Tools to Use for bending metal?

How a vise and clamp can help bend metal

A vise and clamp are indispensable in bending a piece of metal due to their stability and accuracy functions. The clamp aids in holding additional and intermediate parts or in maintaining a steady squeeze where required, while the vise immobilizes the metal piece to be bent. These tools work in unison to provide even force application, thus minimizing the chances of inaccuracies or unwanted warping. They facilitate the formation of sharp and accurate angles in smaller or thinner pieces of metals. To achieve the best possible results, the adequate position of the vise and clamp ensures that they are tightly adjusted and placed correctly before any pressure is applied to the piece of metal.

The role of a torch in metal bending

Progressive Torch Technology has greatly enhanced the workability of metals by allowing controlled locally concentrated thermal input. This thermal input is static-using a blowtorch on the metal to heat it makes metal bending easier. Controlled use of blowtorches allows heating metals to a point where their physical structure softens. This can be done without compromising the metal’s strength, which is crucial when softening thermal structures like turbines and steam machines.

Sustaining temperature while blowing hot air on the working medium weakens the resulting product’s structure. Scorching the workpiece will invariably lead to structural wear and tear or fatigue cracks. Precision work requires adjustment to high-precision flame nozzles for finer detailing and flame control on stunners. These methods are readily mounted onto CNC lathes sharpening heads. Metal sculpts with strict targets like gears could be incorporated into retrofits of used equipment with novel works through custom-controlled robotics. This revolutionized fabrication construction or automotive repair, which is shaped with precise, ideal funnel shape shapes.

Using a mallet for the desired bend

Employing a mallet to gain the desired degrees of bend will require manipulating force to achieve the needed shape and material without destruction. In this case, a mallet type should be selected to fit the material, such as a rubber mallet for softer metals to avoid surface markings. The material support should be stationary to avoid slipping during the firm, even blows directed at the bend area in order to form the material into a molded shape. Heightened accuracy and safety for the worker are obtained if the work surface is stable and the material is held in a fixed position.

How Does Heat Affect the bending of steel?

The science of applying heat to the easier-to-bend metal

The processes involved in steel fabrication are physically demanding due to the material’s substantial resistive strength. However, the application of heat greatly eases the shaping of steel during bending and increases the material’s ability to undergo strain by reducing its yield strength. Once the crystalline structure of steel is heated, the atoms that lock into place start to vibrate and move more intensely adding energy dislocation, thus making the steel more malleable. This is important for high density and thick steel which would otherwise need too much force to manipulate.

With the aim of maximizing efficiency through lower physical exertion, steel is heated to its ‘recryystallization’ temperatures of around 1,200°F to 1,500°F (650°C to 815°C); which varies with the alloy used. At these particular temperatures, steel is less resistant to deformation and does not crack easily which allows the material to be worked on. Another key prerequisite alongside uniform body temperature distribution is equal heat distribution throughout the form to prevent distortion or uneven expansion.

There is evidence stating that the tensile strength of steel decreases by almost 50% at the temperatures of about 1,200°F. A weakening of structural integrity to this level is useful for controlled bending of steel; especially in industrial settings where fabrication needs to be consistent. Commonly used heat sources are oxy-acetylene torches and induction heaters which offer precision and high efficacy in energ transfer.

Moreover, steps like controlled cooling or annealing performed after the steel has been bent often have great significance in preserving the quality of the steel’s structure. These steps mitigate the possibility of distorting the geometry while ensuring the steel maintains its expected mechanical properties. Effective application of heating during the bending process can greatly improve bending efficiency, minimize material damage, decrease tool damage, and overall, enhance productivity.

How can the steel be effectively heated without damage?

To heat steel without damaging it, managing the temperature and the method of heating it is of primary importance. These can be tracked with the help of tools like temperature sensors or pyrometers, which make sure the steel is heated to the safe limit of the grade of steel being processed. Heats need to be evenly spread to avoid melting particular spots, which can cause the steel to become warped or have uneven mechanical properties. Induction heating, as well as gas torches, can be controlled and have greater precision when it comes to deploying energy, which gives them an advantage over other heating methods. Along with these, the gradual increase of temperature and cooling also help prevent the risk of thermal shock, which can hurt the integrity of the steel. Always follow guidelines set out for the specific steel being used to ensure the best possible results.

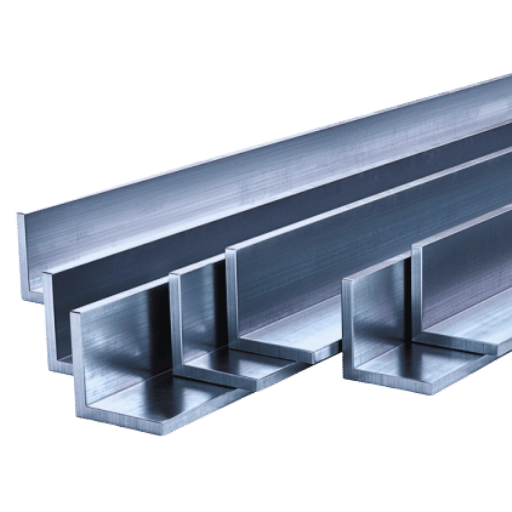

What is the Role of a brake in sheet metal bending?

Understanding the bend angle and radius

The two foremost factors in the sheet metal bending process are the bend angle and radius as they affect the geometry and the strength of the component. The angle of a particular bend is defined as the angle opened between the two legs of the bent sheet, while the radius is the cross section of the inner curve of the sheet that is turned, usually defined by the tooling or die in use during the process.

A widely used rule is that the radius must be equal to or larger than the minimum set radius of the material. For example, aluminum has a minimum bend radius which is larger in comparison to steel because aluminum has less ductility. On the other side, even stronger steels have even more pronounced limitations with regards to flexibility which means that larger bend radii have a potential for fracture.

Modern technology has introduced the use of precision dies on press brakes that control the bend radius and angle with high accuracy. The geometry of the die opening and punch affects the final product specifications greatly. For instance, die with wider openings produces less and gentler angled bend radius. These parameters are controlled during the operation of CNC press brakes which measure and avoid design tolerance violations.

Material thickness is one of the factors that require a proportional increase in bend radius; larger sheets necessitate higher bend radii to reduce stress concentration. Additionally, spring back or the part of the material that tries to return to its original shape after bending, has to be compensated for in the calculation if the required angle is to be achieved. Springback correction usually means that the part will have to be over-bent, in congruence with the amount of elasticity of the material in question.

Understanding the relationships between material properties, bending methods, and tools enables manufacturers to better control the angle and radius of the bends to achieve optimal working conditions and durability of the manufactured product.

Setting up your metal brake for precision

Kleppen oder Duennen beschneiden

• Start with a full assessment to make sure all elements of the press brake are operational, followed by calibration as per the instructions provided by the manufacturer’s guidelines to check while adjusting if it meets needed precision criteria.

Acquisition of a Tool

• An appropriate tool will be picked out based on the type of the material, its thickness and the wished bend radius. Ensure all tools are clean, undamaged and fixed in their correct positions.

Set Backgauges with Great Care

• Set backgauges either manually or by programming them which will set them to the required dimensetic values for changes in the angle of bends. Precision is also important with each bend having the same measurement.

Adjust Setting with a Bend Modifier

• Adjust taper tonnage and speed of the bending operation with the thickness and elasticity of the material that is working on. These controls tend to set the machine into dangerous situations of being overloaded or inaccurate because of spring back.

Test Bend

• A singular bend test will take place and it will be conducted on a sample that has the same material. These test should ensure that the required standards are maintaining the bend angle and radius. Changes will be made for finer adjustments as needed.

Fine-tuning your bend allowance for accuracy

To modify your bend allowance, start by computing it using standard formulas or reference charts based on material type, thickness, and bend radius. The computed values should be verified by performing an actual test bend and measuring the internal bend radius, final dimensions, and other relevant parameters. Compare the outcomes against the predictions and calibrate the allowance as needed. Modifications must be documented meticulously to enhance accuracy for subsequent projects. This approach provides accurate bending results while reducing waste.

Frequently Asked Questions (FAQs)

Q: What are the basic tools needed to bend sheet metal?

A: To bend sheet metal, you’ll need a few essential tools. These include a protractor for measuring angles, form blocks, a hammer and a vise, and pliers. If you want to accomplish more complex bends, you should consider trying a sheet metal brake. Regardless of the scope of work, having these tools on hand will help manage metalworking projects more smoothly.

Q: How do I bend steel without heating it?

A: If you want to bend steel without heating it, the most feasible approach is clamping the steel in a vise. Use a heavy-duty hammer to carefully bend the metal along the desired bend angle if the sheet is thinner. For thicker sheets, other specialized equipment, like a brake, may become necessary.

Q: When is it necessary to heat the steel for bending?

A: You only need to heat steel when it is thick or hard, as those materials are difficult to bend cold. Heating increases suppleness, making it easier to bend and alter the shape when done cold. One must exercise particular caution because too much heat can make the material very brittle. The methods of bending do involve skills as to how exactly one goes about heating steel to make the desired results attainable without losing the quality desired of the material.

Q: What is the K-factor, and why is it important in sheet metal bending?

A: The K-factor, where K is the k-factor, is a distinct feature that goes with sheet metal bending, which is one of the many subprocesses in a larger assembly or manufacturing. It defines the location of the neutral axis in the bend, and it is used on other calculations related to the calculations given that permit and define careful metallic component bends and yields. The K-factor defines, in principle, several aspects so that desired metallic angles and edges can be created without too large errors.

Q: What is the best way to achieve perfect bends in a sheet of metal?

A: To achieve perfect bends in sheet metal, follow these tips: Precise angles require the right tools, such as a sheet metal brake. Always mark the bend line appropriately, ensuring precision before attempting with the real piece; practice on scrap pieces. For some intricate designs, form blocks may be the solution. As a final note, always use a protractor to check your angles and remember: patience and practice yield perfection and mastery in the delicate world of bending techniques.

Q: Is it possible to bend sheet metal that has been cut using a water jet?

A: Absolutely. There’s no restriction with regard to bending sheet metal utilizing a water jet. In fact, unlike other cutting methods that alter the material along the edges due to heat, water jet cutting is preferable for parts that require bending later on. That said, bear in mind that the material properties along the cut edges are affected by the cutting process, so it is advisable to test and bend a sample piece before making the actual cut.

Q: How do you tell if a piece of sheet metal is thin enough to bend by hand?

A: As to whether a piece of sheet metal can be bent by hand, take into account its material and thickness. For most types of metals, the sheets 16 gauge (0.0598 inches) or thinner can generally be bent by hand. Softer metals, such as aluminum, can bend by hand, even if they are a bit thicker. If, with little effort, you can flex the sheet, then it probably is thin enough for hand bending. Thicker or harder materials will require the use of a brake for bending tools or the application of heat to the metal.

Q: What are the applicable safety measures for bending sheet metal?

A: Safety first when bending sheet metal. Always put on heavy-duty gloves to protect your hands from sharp edges. When it comes to metal shavings, safety glasses will provide adequate protection to your eyes. For those using heat, appropriate heat-resistant garments should be put on. Make sure the work area is neat and stable. The spring-back effect while bending should be noted, the metal has the potential to move suddenly. If you’re under 16 years old, it is best to always have adult supervision around. All safety precautions are vital for every metalworking project.
