The process of welding has become crucial in many industries, from construction to car manufacturing where accuracy and strength are critical. No matter if you’re an experienced welder or one with a developing skill, welding as an art must be accompanied by the knowledge of skills involved and relevant tools and processes that guarantee quality work. This guide will provide you with key information on the most important welding processes, the equipment that simplifies the work, and tips to achieve perfect welds. By the end of this article, you should be equipped with all the information you need to improve your techniques and understand how to pick the ideal instruments for any welding project. Get ready to take your skills to the next level and move closer to your goal of becoming a master welder.
What Are The Different Weld Techniques for Beginners?
The basics of hand welding
For a novice in welding, hand welding methods are basic fundamental techniques to start with. One may learn Stick Welding or Shielded Metal Arc Welding (SMAW) and TIG welding or Tungsten Inert Gas Welding.
- Stick Welding (SMAW): Here, an electric arc is established between a consumable electrode having flux and the metal. Stick welding is a cheaper form of welding, versatile, and can be done in the outdoors or on thicker materials.
- TIG Welding: In this process, a non-consumable tungsten electrode is used to produce welds. These types of welds are done in a very precise manner and so, tungsten electrodes provide greater control. This technique is perfect when dealing with thinner metals requiring clean detailing.
Both of these techniques are efficient starting points for beginners as they provide good balance between ease of use and advanced skills in welding that students will require in the future.
How to pick the best welding machine
In the process of selecting the best welding machine, key factors to look into are as follows:
- Thickness and Type of Material: It is helpful to identify the materials you will be welding most often. MIG or stick welders are the best for thicker metals whereas TIG welders are perfect for thinner and more delicate materials.
- Power Supply: Evaluate the power supply at your workshop. For home, and light industrial purposes, machines that run on 110-120V would suffice. However, heavier tasks need at least 220-240V machines.
- Welding Method: Select a weld based on the method you intend to use most frequently. MIG welding is the easiest and most accommodating form of welding, TIG offers a more precise form of welding, and stick welding is great for outdoors or rough conditions.
- Duty Cycle: Consider the machine’s duty cycle (the amount of working time before a break is required to cool down). A machine that has a high duty cycle is preferable if there are longer periods or frequent welding needed.
- Portability: Lightweight and compact machines elevate ease of transport without loss in performance. If mobility is a necessity, such machines should be prioritized.
Selecting the right welding machine increases its efficiency in accomplishing projects. By adapting the machine features to your specific needs and usage requirements, you can ensure satisfactory results on your welding projects.
Searching Several Varieties of Welding Procedures:
While investigating the different types of welding processes, my priority is to master the techniques that are most appropriate to the project materials and requirements. For example, I may use MIG welding because it is quick and simple, especially when working with thicker metals. At the same time, when precision is highly demanded as well as the thinner and more delicate materials, I perform TIG welding. When doing outdoor or structural jobs, I often think of Stick welding and its many different applications as well as its ability to work well on rusty and uneven surfaces. All these methods have their specific uses and I make my choice accordingly to the objectives of the job I need to accomplish.

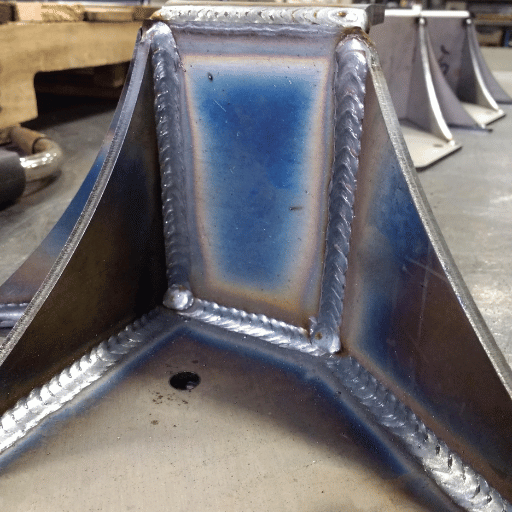

Efficient Ways to Operate a TIG Torch
The foundation of tig welding techniques
With TIG welding (Tungsten Inert Gas welding), one must take note of the tungsten electrode, which is not consumable. The electrode creates a delicate and precise weld by producing an arc with the workpiece, using a shielding gas (usually argon) to protect the weld pool from external contamination. For effective welds, it is necessary that the hand is steady, torch angle – between 10-25 degrees from vertical – is well-controlled, and the workpiece is not moved to higher or lower speeds. Furthermore, the right distance between the tip of the electrode and the workpiece has to be maintained. Contact or getting too close to the workpiece contaminates the tungsten, which greatly deteriorates the weld quality.
Setting Up Your TIG Torch
Setting up a TIG torch accurately is critical for obtaining a quality weld. Begin with selecting the tungsten electrode. The electrode depends on the material being welded, especially if a variety of welding methods are employed. For instance, steel is best welded with a 2% thoriated tungsten, while aluminum is better welded with a 2% lanthanated tungsten because of the more stable arc it holds with AC. When grinding the tungsten, use a sharp tip for DC welding or a rounded tip for AC welding. This permits a firm arc as well as an easy rotation.
After this, insert the gas lens or nozzle so that it fits correctly, selecting a nozzle that will provide enough shielding gas coverage without being too small. Nozzle sizes from 4-8 are sufficient. Next, connect the torch hose to the argon gas and set the regulator for a gas flow of around 15 CFH to 20 CFH depending on the weld area as well as the joint type. Ensure the gas lens or nozzle is fitted correctly, with the appropriate sized opening for adequate shielding gas coverage wedged securely. Finally, replace the collet and collet body to match the tungsten diameter securely into the torch body. These components are important to avoid gas leaking from the torch body.
Before commencing the welding process, ensure that all connections, including the power cable, control switch, gas flow, and torch adjustments, are checked and correctly set. Following these steps are important to maximize performance efficiency and mitigate possible weld issues that arise due to faulty setups.
Solutions to Common Welding Issues
While conducting welding work, I frequently see defects due to porosity, cracking, and fusion issues. The most effective solution to address porosity is thorough cleaning of the workpiece prior to the welding process and modification of the shielding gas flow to prevent contamination during welding. Cracking can be fixed by adjusting preheating or post heating temperatures depending on the material used, as well as matching filler material to crack width. Fusion problems can be resolved by making sure that the proper travel speed and angle are maintained while also ensuring that adequate input heat is available to achieve sufficient bonding. These processes have personally worked for me with minimal common weld defects.
Troubleshooting Issues Arising from MIG Welding
Recognizing Common Errors in MIG Welding Procedures
Porosity is a common issue in MIG welding caused mainly by lack of coverage from shielding gas, or contamination from the workpiece. Cleaning the surface and making sure the shielding gas flow rate is correct can quite easily eliminate this defect. Another common error is travel speed which, if too fast, can cause undercutting, and if too slow, can cause insufficient penetration. It is essential to control the speed and technique to ensure the weld bead is uniform. Furthermore, excessive spatter or poor quality welds can be caused by improper voltage or wire feed settings. The correct balance is needed between these variables and the material thickness and welding requirements. Timely recognition and correction of these errors can significantly boost productivity and quality of the welds.

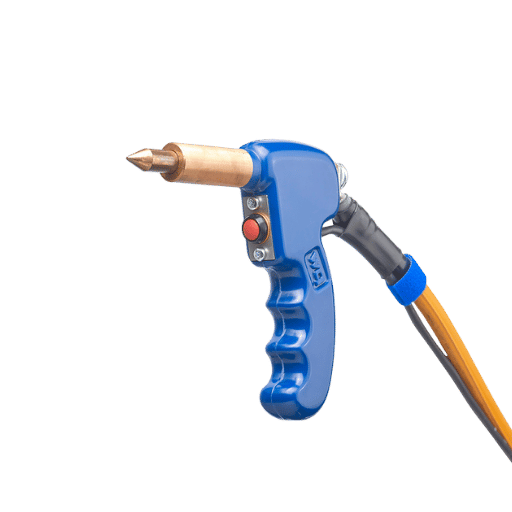

Fixing Problems Troubleshooting the MIG Torch
When attempting to resolve problems with the MIG torch, you should at first check the consumables such as the contact tip, gas nozzle, and liner for any signs of wear or damage. Replace these parts to keep the unit in a working condition. The MIG torch should be unclogged on a regular basis to remove clogs due to spatter and other debris. The cables and their connectors should be checked visually for looseness or damage since such problems can directly impact the electrical circuit.
Check the gas flow rate for the shielding gas; incorrect usage of gas could lead to porosity and poor weld quality. The tension on the wire drive rollers needs to be verified for correct tension to prevent issues like bird-nesting that affect the welding gun. For the welding material and wire diameter, correct components need to be used to avoid excessive wear from misalignment, slipping, or operational failure. Following these components along side general service and manufacturer guidelines will ensure there are no issues with the MIG torch and will provide consistent service.
Improved Results With GMAW.
Gas Metal Arc Welding (GMAW), better known as MIG welding, is a process that is utilized in many industries due to its effectiveness, flexibility, as well as high speed of deposition. It is recommended to choose proper shielding gas for the welded material to receive the desired results. You would commonly use pure CO2 or a CO2 and argon mixture for carbon steel while aluminum welding needs pure argon.
Also, choosing the appropriate parameters for the wire feed speed and voltage settings is important for achieving good quality welds. Consistent travel speeds combined with the correct torch angles will help avoid defects like undercutting or over-spattering. The use of modern technology, for example, synergic GMAW systems, improves the consistency of the welds and reduces the time needed for setting up the equipment by automatically linking the wire feed speed with the voltage, which saves time for the welder.
The quality of the welds produced can be improved with the use of advanced consumables such as low spatter wires or specialized fillers. Also, focusing on appropriate joint preps or surface cleanliness along with consistent performance of the arc stabilizer are critical in maintaining high productivity and precision when welding with GMAW, especially while utilizing solid wires.
What is the Role of Gas in Welding?
Gas Classification in Welding
Gases used in welding processes can be divided into shielding gases and fuel gases, depending on their respective roles:
- Shielding Gases. Processes such as Gas Metal Arc Welding (GMAW) or welding with Gas Tungsten Arc Welds (GTAW) require shielding gases such as argon, helium, carbon dioxide, or any combinations thereof. They enhance the quality of the weld joint by eliminating atmospheric contamination through oxidation and porosity. The gases also protect the weld pool from atmospheric contamination which improves oxidation.
- Fuel Gases. Acetylene, propane, and Hydrogen are commonly used as fuel in oxy-fuel welding or cutting. Fuel gases produce the heat that is required during welding while being mixed with oxygen to create a high-temperature flame that can be used for precise operations.
For efficient and qualitative results in welding, the kind of gas that will be used is dependent on the base material, weld technique, and properties of the weld.
How Gas Affects The Weld Pool
The welding pool’s properties are profoundly affected by the kind and mixture of gas used. When working on sheet metal, shielding gases such as argon and helium not only help to stabilize the arc which improves the cleanliness and smoothness of the weld, but they also protect the weld pool from contamination from atmospheric gases like oxygen and nitrogen. This reduces the likelihood of defects such as oxidation and porosity. However, the use of reactive gases such as carbon dioxide enhances productivity due to deeper penetration, although it may react in greater spatter. The type of gas determines the appearance of the weld bead, penetration depth, and the overall strength of the structure; thus, gas selection is essential for successful welding.

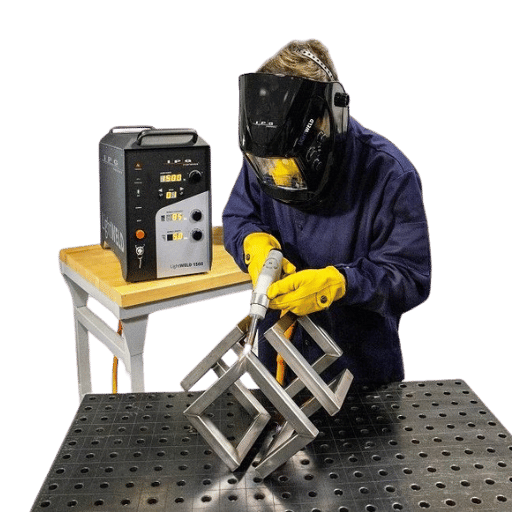

Looking Into the IGBT and Inverter Technologies For Welding
What is an IGBT and why is it important?
Insulated Gate Bipolar Transistor (IGBT) integrates the combined benefits of a bipolar junction transistor and a MOSFET, offering the best of both worlds. It has the ability to well manage with high current, in addition to having great energy efficiency. In welding machines such as inverter-based welders, these parts are crucial because of the increased performance they provide in terms of switching rate, energy efficiency, and power loss. Compact and lightweight welding machines with IGBT technology are now possible without losing power or precision. This component is essential in today’s welding operations because it provides consistent arc stability and control over various welding parameters.
Advantages of Using an Inverter in a Hand Held Welder
Inverter technology is a great improvement over the equipment welders used to use that were transformer based. There is a plethora of Inverter technology handheld welders, but the most important features sets them apart from traditional ones is their energy efficiency. For instance, they increase performance ng while drawing less power from the gird. Another benefit mandatorily associated with this is the lowering of operating costs.
In terms of the benefits of inverters, its most distinguishing feature is that is allows control over all welding parameters such as current, arc voltage, and arc characteristics. For the weld itself, such precision is particularly useful when quality welds must be achieved while working with thin and delicate metals under difficult conditions. Moreover, inverter based welders are very portable as they are compact and lightweight, which makes them highly suitable for field work in difficult locations.
Another important benefit is the welder’s ability to perform TIG, MIG, and stick welding, which enhances the versatility of a single device. Also, inverters are robust in respect of varying input power, which makes them usable in places where power supply is not stable. Also these devices incorporate advanced thermal protection systems making them safe to operate in harsh environments.
In conclusion, the use of inverter technology in handheld welders improves efficiency and precision of the welding process, making the technique indispensable to a modern welder.
Differences Between Arc Welders and Modern Technologies
While arc welders are reliable and have been used for many years, in modern times they are less efficient, precise, and versatile in comparison to newer arc welders which use transformer technology. One of the drawbacks is that these type of welders consume a lot of energy and have little control over the welding parameters, which is not favorable for applications that have delicate welding and precision heating requirements. Other drawbacks these welders have include: greater size and reduced mobility which makes them unfavorable for use in remote locations.
Modern inverter based welders are technologically superior and have better functionality. The use of transformer technology is able to more efficiently convert power which minimizes energy consumption while greatly improving control over vital welding parameters such as current and voltage. Being able to control these factors allows easier control for welding thin materials or welding in more difficult environments. In addition, using these modern welders is made even easier with their added user friendly digital customization interfaces.
Unlike conventional arc welder models, inverter welders are set apart because of their portability and flexibility in using various welding techniques like TIG, MIG, and stick welding. Additionally, inverter welders are ideal for circumstances with fluctuating or unreliable electrical supplies, which makes them more modern and versatile for professional welders. These advancements are continuously closing gaps in performance and user friendliness, which highlights the ease of newer welding technologies compared to older systems that rely on arc welding.
Frequently Asked Questions (FAQs)
Q: What is arc welding and how does it work?
A: Arc welding is the primary technique where an electric arc is used to melt the base materials, and joint or fuse them together. It creates a linkage between electric welding circuit with dc welding electrode and workpiece. Both the base and filler metals in the joint region are melted and mixed together due to the great liquid heat of the arc. An arc welder needs to use a high current and has to supervise the length of the arc. Because of this supervision it is possible to gain desired outcomes.
Q: What are the different types of welding techniques?
A: There are a number of various welding methods such as: 1. Metal Inert Gas welding (MIG welding) 2. Tungsten Inert Gas welding (TIG welding) 3. Stick Welding or Metals Arc welding 4. Flux Cored Arc Welding 5. Submerged Arc Welding 6. Plasma Arc Welding 7. Laser Welding Each welding technology has its strong points and different fields of application.
Q: How essential is it to clamp correctly when welding?
A: Clamping is very important in welding since it holds the workpieces in the necessary position and movement during welding cannot take place. Effective clamping devices maintain a proper spacing between the components, which minimizes distortion and promotes a healthy, uniform weld. Different materials and joint designs require different types of clamps for optimum performance of the end product.
Q: What safety measures should a welder maintain?
A: Safety measures for welders include: 1. Wearing a welding helmet, gloves, and proper welding clothes that protect from firer 2. Using an exhaust fan to avoid breathing harmful fumes 3. Using appropriate face and eye protection in case of arc radiation 4. Keeping the workspace tidy and devoid of combustible materials 5. Following proper electric shock preventative measures by grounding 6. Obeying every product description and safety instruction relative to the welding equipment being used.
Q: What is a good method to select a welding electrode?
A: A user-friendly guide to weld electrodes first requires evaluating: 1. The base metal make up such as mild steel, stainless steel, or aluminum 2. Desired strength and other features of the weld 3. Weld position relative to the surface, i.e., flat, vertical, or overhead 4. Type of weld procedure used such as stick or MIG welding. 5. Adopted thickness of the welded material Use electrode charts or lean toward the manufacturer’s advice for the most appropriate electrode suitable for the intended purpose.
Q: What is the difference between MIG and TIG welding?
A: Both MIG and TIG are methods of arc welding, but they are quite different. These differences include: 1. MIG uses a consumable wire electrode, while TIG uses a non-consumable tungsten electrode. 2. MIG is easier and faster to learn, but TIG offers better control. 3. MIG is often used on thick materials, while TIG is better for thin materials and non-ferrous metals. 4. With MIG welding, there is an electrode that is heated with the welding torch and a protective gas is supplied to the weld, for TIG welding an inert gas like argon is utilized. 5. Compared to MIG welding, some TIG welding processes do not require the use of filler metal while other processes always require filler metal for welding.
Q: How can I improve my welding technique?
A: To enhance your welding skill: 1. Adequately train on a routine basis with different other positions of welding. 2. Research and execute suitable techniques for joint preparation. 3. Develop the skill of understanding welding symbols and diagrams. 4. Change different welding settings such as amperage, voltage, and travel speed, and see how it impacts the overall welding technique. 5. Get advice from experienced welders or instructors. 6. Look for and follow recommended step by step tutorial videos from you tube. 7. Engage in other welding courses in order to gain more knowledge. 8. Read R & D publications for useful information on new and better technological processes, and changes in welding methods and practices.
Q: What are some welding imperfections and what steps can be taken to avoid them?
A: Some typical welding inaccuracies are: 1. The presence of foreign substances or porosity. This happens when gas is trapped within the weld. Avoid using dirty substances and incorrect shielding gas. 2. Not enough fusion. This occurs when the weld is unable to bond with the base metal. See that there is enough preparation on the joint and enough heat is given. 3. Undercutting. This occurs when the border of the weld causes the base metal to melt. Regulate your travel speed and the length of the arc. 4. Breaking – Cracking – Cracking can literally make the weld break apart. Choose the correct filler metal and manage newly added metals and their rates of cooling. 5. Decreased about of penetrating. This is due to a lack of heat or unreasonable joint formation. Change working setting like the amperage or voltage and check if there is enough joint prep.
Q: Is it possible to weld different metals or alloys together?
A: Yes, welding different metals or alloys together is possible, but it can be difficult because of the differences in their melting points, their rates of thermal expansion, and their chemical make-up. Certain techniques and filler materials may need to be used to ensure a proper bond. The difficulty of joining various metals with welds differ, and some combinations are more easily weldable than others. It is important to understand the exact materials you want to weld together and speak with qualified welders to find the most efficient method.
Q: What is the purpose of shielding gas in welding?
A: Weld cleaning gas has an important function in most welding processes, especially in MIG and TIG welding. Its main purposes include: 1. Keeping the weld section from being contaminated by the surrounding atmosphere 2. Maintaining the stability of the arc 3. Directing how the weld bead flows and its penetration 4. Changing the mechanical properties of the completed weld Common gases that are used for shielding include argon, helium, carbon dioxide, or a combination of the said gases. The selection of these gases will depend on the type of welding to be done, the base metal, and the characteristics of the weld to be produced.
