Welcome to our comprehensive guide on the fascinating world of graft compounding extruders! In this article, we will take you on a dynamic journey through the intricacies of graft compounding, focusing on the essential role of twin screw extruders in this process. Whether you’re a seasoned professional or new to the field, this guide will equip you with the knowledge to understand the extrusion process, explore the advantages of twin screw extruders, delve into the importance of pelletizing, discover real-world applications, and gain insights into the essential components of a compounding extruder.

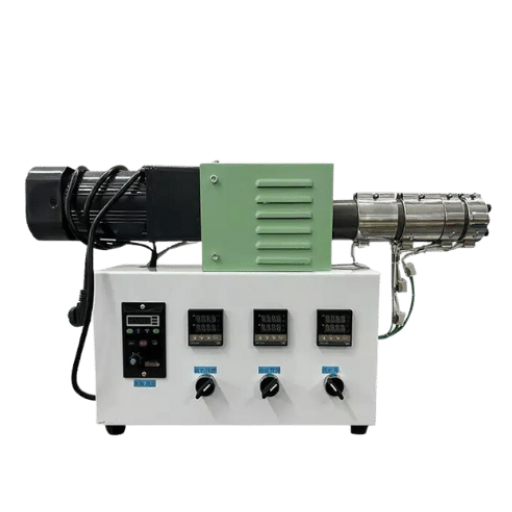

What is a Graft Compounding Extruder and How Does It Work?

A graft compounding extruder is a specialized machine used in polymer processing to produce advanced materials with enhanced properties. It combines two or more polymers together, allowing for the creation of unique polymer blends tailored for specific applications.
The graft compounding extruder operates by melting and mixing polymer materials within its barrel using a screw mechanism. The polymer pellets, additives, and other components are fed into the extruder, where they are subjected to heat and mechanical action. As the materials progress along the barrel, they undergo melting, dispersion, and homogenization, resulting in a uniform blend.
The extruder’s twin screws, designed with varying elements such as kneading blocks, mixing zones, and shear-enhancing elements, play a crucial role in facilitating efficient polymer mixing. The rotation and design of the screws promote intensive shearing and distributive mixing, ensuring thorough dispersion of additives and achieving the desired material properties.
Graft compounding extruders offer numerous benefits in polymer processing, including improved control over material properties, enhanced compatibility between polymers, increased processing efficiency, and the ability to incorporate additives and reinforcements. These extruders find applications across various industries, from automotive and electronics to packaging and medical, enabling the development of advanced materials that meet specific performance requirements.(Recommended: Reactive Extruder)
Understanding the Extrusion Process
The extrusion process is a versatile technique used in polymer processing to create various shapes and forms. It involves the melting and shaping of raw polymer materials through a specially designed machine called an extruder. Here are the key aspects to understand about the extrusion process:
Process Overview: The extrusion process begins by feeding raw polymer materials into the extruder’s hopper. These materials are then conveyed into a heated barrel where they undergo a melting and mixing process. The molten polymer is then forced through a die to obtain the desired shape or profile.
Types of Extruders: There are different types of extruders, including single screw and twin screw extruders. Single screw extruders are commonly used for simple applications, while twin screw extruders offer enhanced mixing capabilities and are suitable for more complex processes.
Applications: The extrusion process finds applications in various industries, including plastic manufacturing, food processing, pharmaceuticals, and construction. It is used to produce a wide range of products such as pipes, films, profiles, and sheets.
By understanding the extrusion process, its different types of extruders, and its diverse applications, we can appreciate the significance of this technique in the production of advanced materials and polymer processing.
The Role of Twin Screw Extruders in Graft Compounding
Twin screw extruders play a crucial role in graft compounding, offering unique advantages and capabilities that make them the preferred choice for this process. They excel in blending and dispersing additives, leading to improved grafting efficiency and enhanced product quality. By utilizing intermeshing screws, twin screw extruders provide a longer residence time, ensuring thorough blending of components and achieving uniform distribution within the polymer matrix. This results in enhanced compatibility, improved mechanical properties, and increased performance of the final product. The precise control and flexibility offered by twin screw extruders make them instrumental in graft compounding applications across a range of industries, including plastic manufacturing, food processing, pharmaceuticals, and construction. Their versatility and efficiency make them indispensable tools in the production of advanced materials and the processing of polymers.
Key Differences Between Single Screw and Twin Screw Extruders
When comparing single screw and twin screw extruders, several key differences emerge that impact their performance and suitability for different applications. Here are the primary differentiating factors:
Design and Configuration: Single screw extruders have a simple design with a single rotating screw that conveys the material along the barrel. In contrast, twin screw extruders feature two intermeshing screws that work in tandem to convey and mix the material. This dual-screw configuration enables better mixing and compounding capabilities.
Mixing Efficiency: Twin screw extruders excel in mixing efficiency due to their enhanced self-wiping and conveying action. The intermeshing screws create a longer residence time, resulting in improved mixing, better dispersion of additives, and enhanced grafting efficiency. Single screw extruders, on the other hand, have limited mixing capabilities compared to twin screw extruders.
Processing Flexibility: Twin screw extruders offer greater versatility and flexibility in processing different materials and formulations. They can handle a wide range of viscosities, produce a higher degree of compounding, and provide better temperature control along the extruder barrel. Single screw extruders are generally suitable for processing simpler materials and applications with lower mixing requirements.
It is important to consider these differences when selecting an extruder for grafting compounding applications. Twin screw extruders’ superior mixing capabilities, flexibility, and precise control make them the preferred choice for achieving optimal grafting efficiency and uniform distribution within the polymer matrix.
Why Choose a Twin Screw Extruder for Grafting Compounding?

Twin screw extruders are the preferred choice for grafting compounding due to several key advantages. These extruders offer enhanced mixing capabilities, allowing for better dispersion of additives and improved grafting efficiency. The intermeshing screws create a longer residence time, ensuring thorough blending of components and achieving uniform distribution within the polymer matrix. Additionally, the precise control of temperature and shear rates in twin screw extruders enables optimal processing conditions for grafting reactions, resulting in high-quality compounds with desired properties. With their versatility, efficiency, and ability to handle a wide range of polymers and additives, twin screw extruders are an indispensable tool in the field of graft compounding.
Advantages of Co-Rotating Twin Screw Extruders
Co-rotating twin screw extruders offer a multitude of advantages in the field of graft compounding. These advanced machines provide a dynamic and comprehensive solution for achieving consistent and high-quality compounds with desired properties. Here are some key advantages of using co-rotating twin screw extruders:
Enhanced Mixing and Dispersion: Co-rotating twin screw extruders excel in achieving excellent mixing and dispersion of polymers and additives. The intermeshing screws generate intense shearing and kneading forces, ensuring uniform distribution of components within the polymer matrix. This results in homogenous blends with improved properties.
Wide Range of Processability: Co-rotating twin screw extruders are versatile machines that can handle a wide range of polymers and additives. They offer flexibility in processing various materials, including thermoplastics, elastomers, fillers, and reinforcing agents. This versatility allows for customization and adaptation to different compounding requirements.
Precise Control of Processing Conditions: Twin screw extruders provide precise control over temperature, shear rates, and residence time, allowing optimization of processing conditions. This level of control is particularly crucial for grafting reactions, where precise temperature and shear conditions are essential for achieving desired grafting efficiency and product quality.
Efficient and Continuous Processing: Co-rotating twin screw extruders enable efficient and continuous compounding processes. The twin screw configuration facilitates consistent material feeding, melting, mixing, and devolatilization. This leads to increased productivity, reduced processing time, and improved overall efficiency of the compounding operation.
In summary, co-rotating twin screw extruders offer numerous advantages in graft compounding, including enhanced mixing and dispersion, wide processability, precise control of processing conditions, and efficient continuous processing. These advantages make them a vital and indispensable tool in the field of compounding, enabling the development of high-quality compounds with desired properties.
Efficiency of Reactive Extrusion in Polymer Processing
Reactive extrusion is a powerful technique employed in polymer processing that enables the synthesis of polymer compounds with enhanced properties and tailored characteristics. By combining the compounding process with chemical reactions, reactive extrusion offers several efficiency advantages, resulting in improved productivity and product quality.
One of the key benefits of reactive extrusion is the simultaneous processing and reaction steps, which eliminates the need for separate processing and post-reaction stages. This integration reduces manufacturing time, energy consumption, and equipment requirements, leading to cost savings and improved overall efficiency.
Reactive extrusion also facilitates precise control over reaction conditions, such as temperature, pressure, and residence time. This control allows for optimization of reaction kinetics and product quality, resulting in the production of polymers with desired properties, such as enhanced thermal stability, mechanical strength, or chemical resistance.
Moreover, reactive extrusion enables the incorporation of reactive monomers, additives, or modifiers directly into the polymer matrix during compounding. This in situ reaction leads to improved compatibility between components, better dispersion of additives, and enhanced homogeneity of the final product.
Overall, the efficiency of reactive extrusion in polymer processing lies in its ability to streamline the compounding and reaction steps, provide precise control over reaction conditions, and promote the synthesis of high-quality polymer compounds with tailored properties. By harnessing the benefits of reactive extrusion, manufacturers can achieve greater efficiency, productivity, and cost-effectiveness in their polymer processing operations.

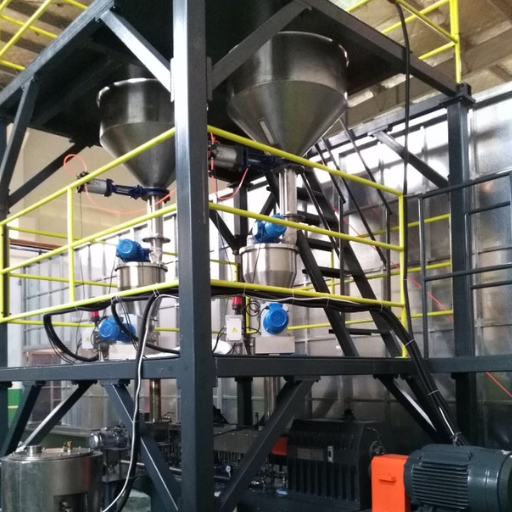

How Does Pelletizing Fit into the Compounding Process?

Pelletizing plays a crucial role in the compounding process, transforming the compounded material into easily manageable and transportable forms. It involves the conversion of molten or softened polymer blends into small pellets or granules. This step ensures uniformity, consistency, and ease of handling for further processing or manufacturing. Pelletizing enhances the efficiency of downstream operations such as molding, extrusion, and 3D printing, where the material can be fed into the equipment smoothly and consistently. Moreover, it enables better control over the material feed rate, improves blending efficiency, and minimizes material waste. Overall, pelletizing is an indispensable step that optimizes the compounding process and facilitates the utilization of grafting compounds in a wide range of applications.
The Importance of Pelletizing in Plastic Production
Pelletizing plays a critical role in plastic production by transforming molten plastic into small, uniform pellets. This process offers numerous benefits that optimize the compounding process and enable efficient downstream operations. Here’s why pelletizing is vital in plastic production:
Ease of Handling and Processing: Pelletized plastic is easier to handle, store, and transport compared to its molten form. The small, uniform pellets facilitate smooth and consistent feeding into downstream equipment, such as molding, extrusion, and 3D printing machines.
Improved Control and Efficiency: Pelletizing enables better control over the material feed rate, resulting in improved blending efficiency during compounding. The uniform size and shape of the pellets allow for precise metering and consistent material performance.
Reduced Material Waste: The pelletizing process minimizes material waste by preventing degradation and ensuring uniformity in size and shape. It allows for the recycling and reuse of plastic materials, contributing to a more sustainable and eco-friendly production process.
By pelletizing plastic, manufacturers can achieve enhanced process efficiency, better material control, and reduced waste, ultimately optimizing the production of high-quality plastic products.
Exploring the Grafting Process in Pellet Forming
The grafting process in pellet forming is a key technique used in plastic manufacturing to enhance material properties and optimize the production of high-quality plastic products. It involves combining different polymers or additives through a chemical reaction to create a new material with improved characteristics. This process offers several advantages, including:
Enhanced Material Properties: Grafting compounding allows manufacturers to customize the properties of plastics, such as mechanical strength, thermal stability, and flame resistance, to meet specific application requirements.
Improved Process Efficiency: By pelletizing plastic through the grafting process, manufacturers can achieve better material control, ensuring uniformity in size and shape. This results in enhanced process efficiency, reducing material waste and optimizing production.
Sustainable Production: The pelletizing process minimizes material waste by preventing degradation and enabling the recycling and reuse of plastic materials. This contributes to a more sustainable and eco-friendly production process.
Overall, the grafting process in pellet forming plays a vital role in the plastic manufacturing industry, enabling the production of high-performance plastic products while promoting efficiency and sustainability.

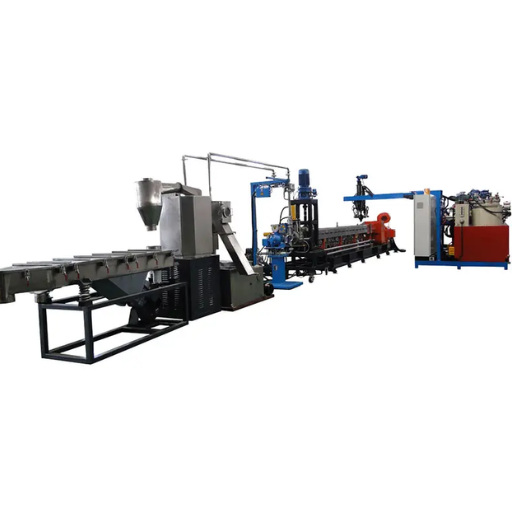

What Are the Applications of Grafting Compounding in Industry?

Grafting compounding has a wide range of applications across various industries, offering enhanced material properties and performance. Some key applications of grafting compounding include:
Automotive Industry: Grafting compounding is utilized to improve the mechanical properties, thermal stability, and flame resistance of polymers used in automotive components like bumpers, dashboards, and interior trims.
Packaging Industry: Grafting compounding enhances the durability, barrier properties, and heat resistance of plastics used in food packaging, beverage containers, and industrial packaging materials.
Construction Industry: Grafting compounding plays a vital role in improving the strength, weather resistance, and fire retardancy of polymers used in construction materials such as pipes, cables, insulation, and roofing.
Electronics Industry: Grafting compounding enables the development of specialized polymers with improved electrical conductivity, flame retardancy, and heat resistance, making them suitable for various electronic applications like connectors, circuit boards, and casings.
Medical Industry: Grafting compounding is utilized to enhance the biocompatibility, sterilizability, and mechanical properties of polymers used in medical devices like implants, surgical instruments, and drug delivery systems.
By leveraging the benefits of grafting compounding, industries can optimize material performance, meet stringent regulatory requirements, and drive innovation in their respective fields.
Utilizing Compounding Extruders for Advanced Materials
Compounding extruders play a crucial role in the production of advanced materials, enabling industries to meet the demands of diverse applications. By combining the benefits of compounding and extrusion processes, these sophisticated systems offer enhanced material performance, improved properties, and greater flexibility in material design. Here are a few key aspects to consider when utilizing compounding extruders for advanced materials:
Material Performance Optimization: Compounding extruders allow for precise control over material composition, enabling the incorporation of additives, fillers, reinforcements, and compatibilizers to enhance specific properties. This optimization process can result in improved mechanical strength, thermal stability, electrical conductivity, and flame resistance.
Meeting Regulatory Requirements: Industries, especially in sectors like automotive, aerospace, and medical, must adhere to stringent regulatory standards. Compounding extruders provide a reliable method to meet these requirements by ensuring consistent material quality and uniform dispersion of additives, thereby enhancing the reliability and performance of the final product.
Driving Innovation: Compounding extruders enable researchers and engineers to explore new material possibilities and drive innovation. By combining different polymers, additives, and processing techniques, it becomes possible to develop tailored materials with unique properties, opening up opportunities for novel applications and advancements in various industries.
When utilizing compounding extruders for advanced materials, it is essential to consider the specific requirements of the application, the desired material properties, and the targeted performance goals. By leveraging the capabilities of these systems, industries can unlock the potential to create cutting-edge materials that push the boundaries of what is possible in their respective fields.
Real-World Examples from Nanjing Jieya and Useon
Two prominent players in the field of compounding extruders are Nanjing Jieya and Useon. These companies have successfully utilized compounding extruders to create innovative materials and advance their respective industries. Let’s take a closer look at their real-world examples to gain insights into how compounding extruders have been applied in practice.
Nanjing Jieya
Nanjing Jieya has leveraged compounding extruders to develop high-performance materials for various industries. One notable application is in the automotive sector, where Nanjing Jieya’s compounding extruders have been utilized to produce lightweight and durable polymer composites used in car components. These materials offer enhanced strength and improved fuel efficiency, contributing to the development of more sustainable and efficient vehicles.
Useon
Useon, on the other hand, has made significant advancements in the field of compounding extrusion for the plastic recycling industry. Their compounding extruders have been instrumental in processing and transforming recycled plastics into high-quality pellets. This innovative approach not only helps reduce waste but also enables the creation of recycled materials that can be used in various manufacturing processes, contributing to a more circular and sustainable economy.
By examining the successes of Nanjing Jieya and Useon, we can witness the dynamic and comprehensive applications of compounding extruders across different industries. These real-world examples exemplify the limitless possibilities and potential that compounding extruders offer in pushing the boundaries of material science and driving technological advancements.

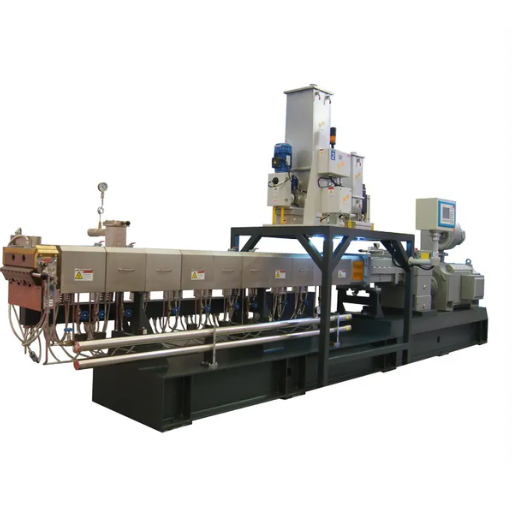

What Are the Essential Components of a Compounding Extruder?

A compounding extruder is a complex system that combines various components to facilitate the efficient processing of advanced materials and polymers. Here are the key components that make up a compounding extruder:
Extrusion Barrel: The extrusion barrel provides a controlled environment for the material processing. It houses the screws and ensures proper heat transfer and pressure build-up during the extrusion process.
Screws: The rotating screws play a crucial role in material mixing, conveying, and melting. They consist of a helical flight and generate the necessary shear and kneading action to achieve uniform blending and dispersion of additives.
Feeders: Feeders are responsible for accurately introducing raw materials, fillers, and additives into the extruder. They ensure a consistent feed rate and proper distribution of components throughout the extrusion process.
Additives: Various additives, such as colorants, stabilizers, and flame retardants, can be incorporated into the material during compounding. These additives enhance the desired properties of the final product.
Heating and Cooling Systems: To control the temperature within the extruder, heating and cooling systems are employed. Heating elements, such as electric heaters or heating/cooling jackets, ensure precise temperature control during the melting and extrusion processes.
Die and Pelletizing System: The die determines the shape and size of the extruded material. Depending on the desired outcome, the extruded material can be pelletized using a pelletizing system, which cuts the extrudate into uniform pellets for further processing or packaging.
By understanding the essential components of a compounding extruder, manufacturers and researchers can optimize their processes and achieve the desired properties in advanced materials and polymer products.
Key Features of Extrusion Equipment Co
Extrusion Equipment Co offers cutting-edge solutions for efficient and precise material processing in the compounding extrusion industry. Our advanced extrusion systems are equipped with innovative features that drive productivity, enhance product quality, and optimize overall performance. Here are some key features that set us apart:
State-of-the-Art Rotating Screw Design: Our extruders feature a highly efficient rotating screw mechanism that plays a crucial role in material mixing. With its precisely engineered flight geometry, our rotating screw ensures thorough and homogenous blending of raw materials, resulting in consistent product quality and improved material properties.
Advanced Feeders for Accurate Material Delivery: Our extrusion systems are equipped with state-of-the-art feeders that enable precise and reliable material delivery. These feeders ensure consistent and uniform feeding of raw materials into the extruder, minimizing variations in the extrusion process and maximizing production efficiency.
Comprehensive Additive Integration: At Extrusion Equipment Co, we understand the significance of additives in enhancing the properties of the final product. Our extrusion systems are designed to seamlessly integrate a wide range of additives, allowing precise dosing and uniform dispersion throughout the material. This comprehensive additive integration ensures optimal product performance and desired material characteristics.
The Function of Rotating Screw in Material Mixing
The rotating screw is a vital component in the extrusion process that plays a crucial role in material mixing. It operates within the extrusion system by conveying, melting, and homogenizing the material as it moves along the barrel. The primary functions of the rotating screw in material mixing include:
Conveying: The screw’s design enables it to transport the material from the feed zone to the output area of the extruder. This continuous movement ensures a consistent flow of material for processing.
Melting: As the material progresses through the extruder, the rotating screw generates heat through friction and transfers it to the polymer, causing it to melt. This melting process is essential for achieving the desired viscosity and workability of the material.
Homogenizing: The rotating screw incorporates mechanisms such as mixing elements, kneading blocks, and shear zones to promote thorough blending of additives, fillers, and other components with the base material. This homogenization process ensures uniform dispersion of additives, resulting in consistent material properties and performance.
Overall, the rotating screw’s precise design and operation in the extrusion system enable efficient material mixing, ensuring optimal product quality and desired material characteristics. By leveraging the capabilities of the rotating screw, manufacturers and researchers can achieve exceptional results in material compounding, enhancing their products and advancing their applications in various industries.
Role of Feeders and Additives in the Extrusion Syste
Feeders and additives play crucial roles in the extrusion system, contributing to the overall quality and performance of the final product. Let’s explore their significance in more detail:
Feeders:
Feeders are essential components in the extrusion process that ensure a continuous and consistent supply of raw materials to the extruder. They perform the following key functions:
- Material Conveyance: Feeders transport the raw materials, such as resins, additives, and fillers, from the source to the extruder’s feed throat.
- Accurate Metering: Precise metering of materials is crucial to maintain the desired composition and consistency of the extruded material. Feeders ensure accurate and controlled material feeding rates, promoting uniformity in the extrusion process.
- Feeder Selection: The choice of feeder depends on factors such as material characteristics, flow properties, and desired output rate. Common types of feeders include gravimetric feeders, volumetric feeders, and screw feeders.
Additives:
Additives are substances incorporated into the base material during extrusion to enhance specific properties or provide desired functionalities. Here are some common types of additives used in the extrusion system:
- Stabilizers: Stabilizers are additives that protect polymers from degradation during processing, improving the material’s thermal stability and preventing discoloration or breakdown.
- Colorants and Pigments: These additives impart color or opacity to the extruded material, enabling manufacturers to create visually appealing products or achieve specific aesthetic requirements.
- Modifiers: Modifiers alter the physical and mechanical properties of the base material, such as its flexibility, impact resistance, or flame resistance. Examples include plasticizers, impact modifiers, and flame retardants.
- Fillers: Fillers are additives that enhance the mechanical properties of the extruded material, such as its strength, stiffness, or dimensional stability. Common fillers include glass fibers, calcium carbonate, and talc.
By carefully selecting and incorporating suitable feeders and additives, manufacturers can optimize the extrusion process, achieving consistent material properties, improved product quality, and enhanced performance characteristics.
References
top Reactive Extruder manufacturer from China Â
Frequently Asked Questions (FAQ)
Q: What is a graft compounding extruder?
A: A graft compounding extruder is a type of plastic extruder machine designed to modify polymer chains through the addition of graft copolymers, resulting in enhanced material properties.
Q: How does a single screw extruder differ from a twin screw extruder machine?
A: A single screw extruder typically handles simple extrusion tasks, while a twin screw extruder machine is used for more complex compounding and extrusion processes, offering better mixing and higher output due to its twin-screw design.
Q: What are the main applications of a compounding extrusion line?
A: A compounding extrusion line is mainly used for producing plastic compounds by mixing polymers with additives or fillers, enhancing material properties for various industrial applications.
Q: Why is screw speed important in a twin-screw extruder?
A: Screw speed in a twin-screw extruder is crucial as it affects the mixing and shearing of materials, impacting the quality and consistency of the final product. Optimal speed ensures efficient dispersive and energy-intensive compounding functions.
Q: What role does a lab extruder play in extrusion and compounding?
A: A lab extruder is used for small-scale testing and development in extrusion and compounding, allowing experimentation with different materials and formulations before scaling up to full production on a larger compounding machine.
Q: How do additives or fillers enhance the extrusion system?
A: Additives or fillers are incorporated into the extrusion system to improve the mechanical, thermal, or chemical properties of the plastic compound, making it suitable for specific applications.
Q: What is the significance of highly dispersive and energy-intensive compounding?
A: Highly dispersive and energy-intensive compounding is significant because it ensures thorough mixing and uniform distribution of materials, which is essential for achieving desired product characteristics in the extrusion and compounding process.
Q: How do compounding extruders perform the compounding step?
A: Compounding extruders perform the compounding step by using the mechanical action of the screws to mix, shear, and convey materials through the machine, resulting in a homogeneous blend of the input materials.
Q: What materials can be processed using a twin screw extruder pelletizing system?
A: A twin screw extruder pelletizing system can process a wide range of materials, including polymers, additives, fillers, and plastic compounds, transforming them into uniform pellets for further processing or direct extrusion.
Q: Can acetone be used as a solvent in the extrusion process?
A: Acetone is typically not used as a solvent in the extrusion process due to its volatility and potential to cause degradation of certain polymer chains. However, it may be used in cleaning or specific applications where compatibility is assured.
