Just like all other technologies, joining technologies also have the latest and most advanced form. This form is called fiber laser welding, and it is the most commonly used welding technology in the world. The use of fiber laser welding technology allows for competitive advantages in accuracy, speed, and quality, and therefore it has spread like wildfire. What are the key differences between fiber laser welding and traditional methods of welding? Moreover, Why is laser welding gaining acceptance in the most complex and demanding applications? In this article, I outline the most important benefits of fiber laser welding, its novel applications, and its impact on aerospace, medical devices, and other fields. The time in which this sophisticated technology was made is also known as the Joining Revolution.
What is Laser Welding and How Does It Work?
Like any welding process, laser welding is a procedure that joins two materials together using a focused beam of light. Laser welding offers precise beam control which leads to optimal heat input and superb welding quality. Such precise control results in strong welds with minimal defects. The exceptionally accurate and precise nature of laser welding makes it advantageous for intricate or highly demanding tasks and works exceptionally well with metals, thermoplastics, and composite materials. Because of these attributes, laser welding is a vital process in the aerospace, automotive, and medical device manufacturing industries.
Understanding the Laser Welding Process
As the name suggests, laser welding refers to a technological process that employs a laser as its central tool. As in all welding processes, the initial step in laser welding involves directing a laser beam toward the welding part. The energy concentration through the boiling laser causes the material boundaries to further disintegrate. By generating welds through this process, the end result is remarkable precision concerning the weld’s strength as well as minimal distortion. Furthermore, distortions in the laser speed, movement, and distance are avoided to the maximum extent possible. Laser welding is beneficial due to its precision, efficiency, and exceptional quality, which makes it a crucial procedure for industries which value accuracy as well as reliability.
Key Components of a Fiber Laser Welding Machine
The usage of a fiber laser welding machine encompasses a variety of parts integrated for sought efficiency in operational performance. These fusions split into main parts of his components such as:
Laser Source
While welding, it is essential to have a high-powered laser beam. A modern-day machine employs fiber lasers or traditional laser machines, both of which have their advantages. For industrial purposes, the required power often fluctuates between 500W and 10,000W based on the material type and thickness as well as the fiber laser being utilized.
Beam Delivery System
As previously mentioned, a laser beam is required for welding. The beam needs to be flexible and easily adjustable to avoid any problems down the line. This can be achieved through the use of optical fiber or employing a collimator and focusing optics for concentrated and precise energy application.
Welding Head
In a workpiece, having a laser beam focused is usually the role of both the welding head and optics. In an industrial setting, seams consisting of different material thicknesses can be welded by utilizing an automatic adjustable focus feature incorporated in the welding head. To protect the optics from contamination and damage, some models have nozzles and shield protective systems.
Cooling System
Cooling systems maintain the stability and performance of a laser source. Fiber laser welding machines utilize water-cooled systems to lower the thermal energy created during welding and to maintain consistent power without overheating and degrading the machine components.
Control Unit
The control unit manages every aspect of the welding process from putting a weld on a joint to moving it to the next workpiece position and controlling the laser’s power,/speed/focus/width. Most welding machines today have advanced easy-to-use software where the operator sets the parameters for different materials or joint types. Some systems allow monitoring of the process in real-time to improve control over the process and detect defects more efficiently.
Fixture and Workpiece Handling
Having a sturdy support system for the piece that requires precision welding is critical. Calculation fixtures are specially designed to ensure correct alignment and stability to the workpiece. To increase accuracy and productivity, automated systems such as robotic arms or CNC platforms are often used.
Safety Mechanisms
Wielding fibers with either passive or active high-speed lasers requires safety measures for protecting the operator from intense laser radiation as well as from other dangers posed by the system. Modern systems come with industry-standard protective frames, automatic shut-off systems, and laser welding safety glasses among other features.
With new technological advancements, the capabilities of fiber laser welding machines in their precision, efficiency, and scope of use across various industries are also evolving. Modular designs provide the option to customize the machines based on specific operational requirements making them essential in automotive, aerospace, electronics, and medical device manufacturing industries.
The Science Behind Fiber Laser Technology
To generate a laser beam, fiber laser technology employs a doped optical fiber as the gain medium. These fibers, which are usually doped with rare-earth elements like ytterbium and erbium, amplify light via stimulated emission. Unlike conventional laser systems, fiber lasers offer high efficiency and great optical beam quality due to low thermal distortion and compactness.
The core process consists of pumping the doped fiber with diode lasers which causes the rare-earth ions to emit coherent light. The light is then relayed and concentrated onto the target with phenomenal accuracy. Fiber lasers can use power levels from a few watts for delicate operations to industrial-level kilowatts for cutting and welding. Often their efficiency will surpass forty, which greatly lowers energy usage compared to previous laser systems.
Recent advances include the application of multi-mode lasers which have greater power, allowing for high precision processing of thicker materials. Furthermore, adjustable beam quality systems allow for variation in parameters set for different materials which lowers the costs of working with metals such as titanium, aluminum, and steel. Some studies claim that modern fiber lasers achieve M² < 1.1 beam quality, demonstrating near-perfect Gaussian beam characteristics which are desirable for cutting lasers.
While needing less upkeep and offering superior performance, fiber lasers are assumed to take control of laser technologies for industries that need high precision and efficiency like semiconductor fabrication and micromachining. Some research suggests that fiber laser technology will influence the next decade due to the rapid acceptance of the technology across sectors, estimating a CAGR of 7%.

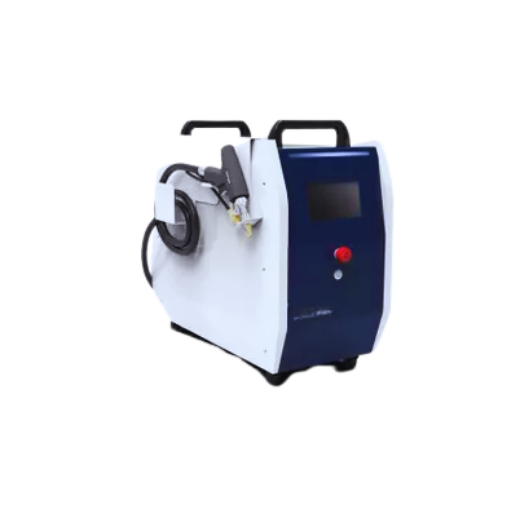

What are the Advantages of Laser Welding Over Traditional Methods?
Comparing Laser Welding to Traditional Welding Methods
Welding with lasers has become increasingly popular over traditional welding methods as it offers numerous advantages. One of the most significant is accuracy with a very low heat-affected zone (HAZ). Laser welding is more advanced than traditional techniques such as arc welding due to the energy focus which results in clean welds and minimal thermal distortion, while arc welding often results in high distortion because of significant heat input.
Laser welding is also very adaptable as it can join a variety of materials, even those of different metals. This is arguably very important in the automotive and aerospace industries as lighter materials such as aluminum need to be combined with stronger alloys to improve their performance. Reports claim that laser welding is much faster compared to MIG or TIG welding, with production time lowered by 50% while maintaining excellent quality of the weld.
Also, laser welding systems are automated which improves repeatability and reduces human error. Although the investment is higher, automation results in lower operational costs in the long run as well as consistent output. Studies claim that laser welding can be over 90% efficient compared to traditional methods like gas metal arc welding which are more common, but not as energy efficient or require a lot of labor.
Lastly, regarding laser welding’s impact on the environment, it is much cleaner when compared to other processes as it uses less filler materials and produces less spatter and waste. These advantages are aligned with the increasing need for clean manufacturing in the industrial sectors that have ecosystems and sustainability at the fore. Such benefits underscore the increasing utilization of laser welding as the preferred modern alternative to traditional welding methods.
Why Choose Fiber Laser Welding for Your Projects?
The unparalleled attribute of fiber laser welding is its precision, efficiency, and versatility, making it the perfect solution for modern manufacturing processes, specifically for laser cutting. The newest updates of fiber laser technology suggest that fiber lasers utilize a wavelength of around 1.07 micrometers which most metals can absorb easily. This allows for welds that are deeper and faster with other techniques. For instance, studies indicate that fiber lasers can complete processes four times faster than TIG or MIG welding.
Another advantage is fiber laser welding’s low heat affected zone (HAZ). This lowered thermal distortion ensures that there is no deformation of components which is critical for the aerospace, automotive, and precision electronics industries. In addition, fiber lasers operate at high efficiencies, with their electrical to optical conversion efficiencies exceeding thirty percent. This greatly lessens the amount of energy consumed and operational expenses in high-volume production settings.
Furthermore, the design of fiber lasers prioritizes dependability and long life. Their diode components are frequently of high quality, with lifetimes exceeding one hundred thousand hours. This is useful for handheld laser welding machines, as well as for decreasing maintenance intervals. This reliability leads to less downtime and more productivity in the long run. This also shows the growing use of fiber laser welding all over the industries as most likely the best method to obtain high quality, environmentally friendly results in tough applications.

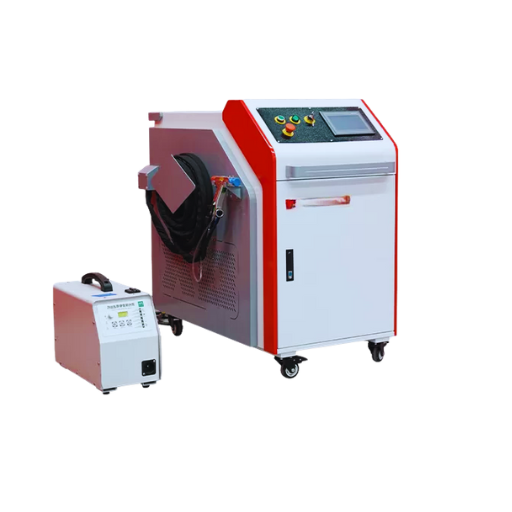

How Do Laser Welding Machines Vary?
Exploring Different Types of Fiber Laser Welding
Fiber laser welding machines have customizable features for precision and versatility with varying types of industrial applications. In the following section, the major types of fiber laser welding and their applications will be discussed:
Continuous Wave (CW) Fiber Laser Welding
CW fiber lasers produce a constant stream of laser energy, which is beneficial in the high-speed welding of thin stainless steel and aluminum. Other industries like automotive manufacturing also utilize CW lasers in assembly lines for the uniform production of welds. These machines have usable power levels of anywhere from 500 watts to several kilowatts, sufficing their amazing welding depths of anywhere from 0.5 mm to over 30 mm depending on the material used.
Pulsed Fiber Laser Welding
When laser energy is produced in short, intense bursts, pulsed mode is employed. This mode is especially useful in the welding of small, delicate components or heat-sensitive materials such as those in electronics and medical devices. With peak power levels exceeding several kilowatts during each pulse, along with low heat transfer to surrounding areas, pulsed welding guarantees precision without compromising material integrity.
Welding Using a Modulated Fiber Laser
The technique known as welding using a modulated fiber laser features a mix of both continuous and pulse modes allowing a higher level of control of both the heat input and the weld penetration. This technique is appropriate for complex geometries and multilayered materials with significant precision and variable depth of weld. These advanced systems have been adopted widely in the aerospace and defense industries.
Welding Using Handheld Fiber Lasers Welding
Developments in handheld fiber-equipped laser welding machines transform these tools into practical portable devices for use during onsite repairs and custom fabrication works. Those systems have a working power of approximately one to two kilowatts, which enables fine manual control without deteriorating the quality of the welds produced by sophisticated laser machines. Their simple user interface Streamlines the training process and enables cross-sector accessibility.
Hybrid Systems for Fiber Laser Welding
Hybrid systems combine the advantages of laser welding and classical arc welding. This technique is optimal for applications where the weld needs to be both strong and free from defects, such as in shipbuilding and manufacturing of heavy machinery. These systems take advantage of both techniques to effectively tackle the welding of thick and highly reflective metals.
These varieties demonstrate how advanced laser welding machines can cope with the challenges of contemporary industry. The type of material, its thickness, and the strength of the weld all fuel the consideration of the appropriate welding technique, which leads to an ideal balance of quality and efficiency.
Features to Look for in a Laser Welding Machine
Output Power
Confirm that the machine has the appropriate horsepower to operate for the specified material types and thicknesses for your applications.
Achieving welding results requires exceptional Precision and Accuracy in laser welding.
Advanced beam control is essential for clean and accurate welds, particularly on intricate and high-tolerance workpieces. Look for such machines.
Material Compatibility
Ensure that the machine can weld the target materials like steel, aluminum, titanium, or other metals, as required.
Ease of Operation
Programmable features and intuitive interfaces simplify workflows and consequently, operator mistakes.
Cooling System Efficiency
An efficient cooling system is needed to maintain reliable performance and prevent overheating problems during extended operation.
Durability and Maintenance
Choose machines made from high-quality components to reduce maintenance downtimes and prolong the machine’s longevity.
Safety Considerations
Robust protective mechanisms, such as protective enclosures and emergency stop functions, should be considered while selecting laser welding systems to ensure maximum operator safety.
Automation Capabilities
For large volumes or repetitive work, welding automation integration greatly improves productivity and consistency.
Focusing on these features allows operators to efficiently encounter the challenges of selecting laser welding machines with defined production requirements while maximizing the desired quality results.
What Are the Welding Applications for Fiber Laser Welding?
Utilizing Fiber Laser Welding in Various Industries
Due to increases in efficiency and precision as well as improved welding results across various industries Fiber laser welding has become one of the most frequently utilized welding methods. This is helpful in the automotive industry when welding transmission components, sensors, and the complex body structures of vehicles. When working with lighter welds in materials like alloys of titanium and aluminum, the aerospace industry can get stronger welds because of their lightweight composition. In the electronics sector as well, fiber laser welding is used when assembling battery packs and micro-connectors ensuring minimum thermal distortion as well as high reliability. With such flexibility fiber laser welding has remained an essential tool in industries that require better weld quality and efficiency.
Innovative Welding Applications for Laser Welding
The use of lasers in welding is far more accurate and versatile than with other methods and improves the entire welding process. In my opinion, it is particularly useful in the automotive industry for rapidly making strong but light vehicle parts. Also, I have seen its use in the healthcare industry where highly precise devices need to be manufactured. The ability to minimize material damage while still providing exceptional quality proves its value as a modern welding solution.

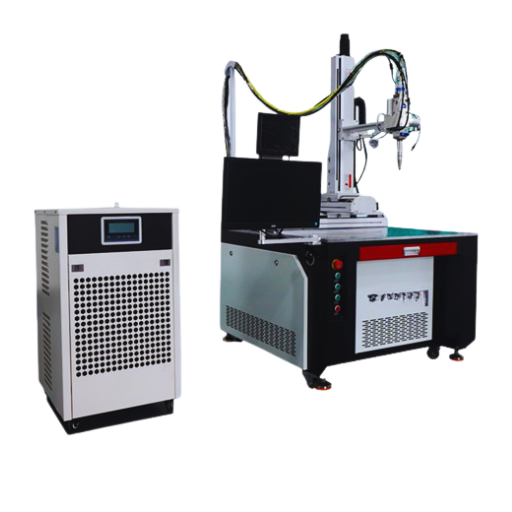

How to Optimize Your Welding Process with Fiber Laser Technology?
Tips for Achieving High-Quality Welds
Select the Correct Parameters
Make sure to select the proper laser power, speed, and focus for the material and quality of the weld, as well as any other application-specific parameters. These settings should be modified to prevent excess porosity or cracking.
Prepare the Materials Adequately
Make sure the surfaces of the materials to be welded are clean and free from contamination, such as dirt, oil, or oxide scale that would affect weld quality, as well as other deleterious materials.
Implement Proper Shielding of Gas
Use appropriate shielding gas, such as argon or nitrogen, to protect against oxidation and contamination of the weld area.
Ensure Regular Maintenance of Tools and Instruments
The fiber laser system needs to be regularly cleaned and kept well-calibrated. This guarantees consistent performance over time without issues related directly to equipment.
Observe Weld Quality During the Process
Monitor systems should be used to search for defects during the process. This allows for correcting problems, which enhances the durability and reliability of the weld.
Enhancing Welding Speeds and Efficiency
Various advanced measures derived from fiber laser innovations and process automation enable welding speeds and efficiency to be improved.
Employ High-Power Fiber Lasers
With high-power fiber lasers from 6kW to 20kW, deeper penetration along with cutting and welding at a much faster pace is possible. For example, a 10kW laser can weld stainless steel at speeds greater than 5 meters per minute. The production throughput is significantly higher when compared to lower-powered systems.
Incorporate Automation and Robotics
Automation and the integration of robotics with fiber laser systems can dramatically increase overall efficiency. Automated solutions allow welds to be done accurately and much faster than when performed manually. Through research, it has been shown that robotics are capable of decreasing the welding cycle times by 50% or more, particularly when looking at high-volume production scenarios.
Enhance Material Delivery Method and Focal Control
Utilization of advanced beam delivery systems along with dynamic focus control greatly enhances welding speed and precision. Rapid changing and adaption of adjustable focusing optics to variable material thicknesses ensures consistent quality while minimizing transition downtime.
Develop Better Material Handling Devices
Other large-scale equipment that is capable of performing the workpiece feeding and positioning are clamps. These conveyors, coupled with automated clamps, enhance the efficiency of material handling, which reduces idle time and supports continuous workflow, especially for large-scale manufacturing.
Implementing AI and Real-Time Monitoring Systems
The incorporation of AI technology in real-time monitoring systems enables the identification of possible defects during welding and can change the parameters instantly. These systems maintain the needed speed and ensure quality. Improvements over the last few years show a drop of defect rates during automated fiber laser welding processes by nearly 30%.
Reduce Heat Input and Heat Indused Distortion
Advanced cooling systems together with controlled input heat levels can aid in preventing the distortion of the material, enabling faster welding speeds without losing structural integrity. This is particularly important when working with thin metals or in high-accuracy processes.
With the use of these techniques, manufacturers can increase the handheld laser welding machines welding speeds while keeping the welds at of the same or better quality. Such balanced approaches guarantee maximum efficiency in production lines across a wide spectrum of industries.
Ensuring Material Compatibility with Fiber Laser
To achieve flawless welds, one has to deal with the variety of challenges fiber laser welding systems present. Welding processes are notably affected by the materials having distinct responses to the high-intensity laser beam along with their optical and thermal characteristics.
Material Reflectivity
Aluminum, copper, and brass possess high reflectivity at the ranges of laser wavelengths which may lead to inefficient absorption of laser energy. Reflective metals are better processed using advanced fiber lasers with specific wavelength ranges (around 1 micron). It is already known that the reflectance of some materials (such as leasers and polymers) can be reduced to 90% while optimizing laser parameters, or applying absorption-enhancing coatings; hence improving the coupling efficiency to these materials.
Thermal Conductivity
During welding, sufficient localized melting of the material has to be maintained. Failure to do so leads to challenges such as rapid heating or dissenting of heat from metals such as copper and silver. The issue can be solved by setting a pulsed laser or preheating the material which improves the consistency and penetration of the welds.
Material Thickness
A laser’s effectiveness in penetrating an object can be impaired if the object is too thick. For thinner sheets, the ‘output’ of the laser must be controlled so precisely that burn-through is unlikely. If the sections are too thick, on the other hand, higher power outputs and burns or multiple passes may be necessary to complete the weld. Research shows that fiber lasers above 6kW of power can effectively weld 25mm thick steel plates in one pass.
Alloy Composition and Impurities
Certain metals and their compounds that create alloys can affect the behavior of solidification and the weld pool. Galvanized steel’s zinc content, for example, can vaporize during welding and lead to porosity problems. These negative impacts can be countered with gas shielding systems or altering the welding speed so that a perfect weld can be made.
Considering these material specifics, along with developments in fiber laser technology, all culminate in expanded boundaries of materials that could be used for laser welding with better efficiency and effectiveness in industrial production environments.
What to Consider When Investing in a Laser Welding Machine?
Evaluating Laser Welding Machine Costs
Understanding the various parts that comprise a laser welding machine’s cost is essential to make an informed monetary investment. Whether a machine is more expensive or cheaper is greatly dependent on the brand’s prestige, additional features, power output, and the source of the laser. For example, low-power machines that range from 1 to 3 kW generally cost between $20,000 to $100,000, however, high-power machines that are 6 kW and above can exceed $200,000. The cost continues to rise with the incorporation of more sophisticated automation technologies or the use of robotic systems.
Furthermore, cooling systems, maintenance, and electricity consumption are also operational expenses that are critical in the evaluation of costs. In comparison to CO2 lasers, fiber laser systems are more efficient in terms of energy usage, leading to lower costs in the long run. It is estimated that using fiber lasers for the same task uses almost half as much energy, which will prove to be very cost-efficient in the long run.
Manufacturers must also take into account the difference in maintenance between types of lasers. Fiber lasers, for example, require much less maintenance whereas CO2 lasers have more regular optical alignment and other part replacements. These maintenance requirements greatly impact the total cost of ownership (TCO).
Finally, Return on Investment (ROI) and output scalability are two primary components that are crucial to business. Organizations need to determine how well the laser welding machine integrates with their production requirements regarding the quantity and types of materials it can handle. The ROI on modern, high precision, and high-speed fiber laser welding systems, is usually realized quicker in industries such as automotive and aerospace that require higher throughput. A thorough detailed cost-benefit analysis will allow organizations to make certain that the laser welding solution they purchase is within budget, as well as meets their production needs.
Selecting the Right Laser Source for Your Needs
When determining the best laser welding system, different key components must be analyzed to match the operational goals of performance and efficiency. Fiber and CO₂ lasers are the most commonly used in welding, each with their own pros and cons.
Fiber Lasers
Fiber lasers have a well-deserved reputation for their greater efficiency and ultra-precise welds. They work from hundreds of watts up to several kilowatts to meet industrial requirements. Industry data shows that fiber lasers frequently reach 25–30% energy efficiency, which is less than the efficiency of CO₂ lasers, but does save costs due to lowered energy usage. Additionally, these lasers tend to have longer lifespans because maintenance is required less frequently due to the solid-state construction. This makes them an ideal choice in aerospace and automotive manufacturing, and the medical device industry, where accuracy and uptime are crucial.
Fiber lasers also have another key feature in processing various materials with minimum back-reflection problems, such as aluminum and copper. Furthermore, AI-powered modern fiber lasers can self-adjust for optimum weld consistency and quality for different materials.
CO₂ Lasers
Even though CO₂ lasers are less efficient than fiber lasers in terms of energy consumption, they have their unique advantages which can be beneficial in some scenarios. CO₂ lasers excel when it comes to non-metallic materials such as plastic, ceramics, and wood, as long as the required wavelength is around 10.6 micrometers. They retain a competitive edge for industries that demand high-power outputs above 20 kW, especially for heavy-duty manufacturing processes like large-scale welding or cutting of thick materials where CO₂ lasers are needed.
On the other hand, CO₂ lasers require more stringent maintenance and incur higher operational costs. Mirrors need to be realigned, gas needs to be refilled, and other components consume a lot of power, resulting in a total efficiency of 10 to 15%. Nevertheless, the cooling system innovations and beam delivery systems improve operational uptime and reduce the amount of downtime CO₂ lasers have.
Comparative Analysis
|
Metric |
Fiber Lasers |
CO₂ Lasers |
|---|---|---|
|
Efficiency |
25–30% |
10–15% |
|
Maintenance |
Minimal, no gas refills |
High, regular gas refills and alignments |
|
Material Compatibility |
Metals (steel, aluminum, copper, etc.) |
Non-metals (plastics, ceramics, wood) |
|
Operating Costs |
Lower energy costs |
Higher energy and maintenance costs |
|
Power Range is a crucial consideration when selecting laser machines for welding applications. |
Up to several kW |
High, up to 20+ kW |
|
Application |
Precision sectors like aerospace, medical |
Heavy-duty tasks like thick material welding |
Selecting Based on Needs
In selecting one of these laser sources, one must pay special attention to the unique design and production goals, especially concerning the features of the laser welding head. For tasks that require high accuracy, speed, and low servicing, such as in electronics or lightweight automotive manufacturing, fiber lasers would most likely be the best option. On the other hand, industries that need to work with some non-metals, or very high power outputs, might use CO₂ lasers with greater satisfaction.
Choosing the proper laser source affects productivity and economy. Careful consideration of these aspects will help companies to optimize their laser welding systems with both current operational objectives and future expansion possibilities.
Understanding Laser Welding Equipment Maintenance
Appropriate servicing of laser welding equipment is essential to achieving the desired results, improving equipment longevity, and reducing expensive downtimes. Servicing routinely concentrates on the principal parts of the laser system such as the laser source, optics, beam cooling system, and beam delivery system.
Maintenance Focus Areas:
- Laser Source: Checking the laser source periodically helps to identify signs of wear and maintain the required energy output. Cleaning internal parts and checking if the electrical supports are tightly fastened can mitigate loss of efficiency.
- Optics: Cleansings of optical parts including lenses and mirrors are important for beam sharpness. The beam can suf fer from dust, debris, and even finger smudges, which will lower the welding quality. These effects can be avoided easily by cleaning it on a regular basis using the right tools and chemical solutions.
- Cooling system: Ensure the laser welding machinery does not overheat or else the operation will not be stable. Regular monitoring of coolant levels, leak checks, and filter changes at a set period helps maintain thermal control and prevents damage to internal components.
- Beam Delivery System: Regular inspection and necessary adjustments of the beam delivery equipment for the laser makes sure that they remain in the correct position. If the equipment is not in the right position, it will result to poor weld quality and in some cases, no weld at all.
Evidence Justifying the Need for Maintenance
Its 2022 study conducted in the manufacturing sector found that poorly maintained equipment contributes to as much as 30% of unplanned downtime during laser welding operations. Following a proactive maintenance schedule also enabled businesses to report a 20-25% increase in average equipment uptime along with a 15% reduction in long-term repair expenditures. These factors greatly improve operational efficiency and productivity in the long run.
Scheduling Preventive Maintenance
It is recommended to set up a routine schedule of maintenance based on the machine’s workload and working conditions. For example, machines subjected to high output volumes may need to be serviced once a week, whilst machines operating at lower levels may only need servicing once a month. In addition, tracking service history can assist in recognizing chronic problems that can be addressed in future maintenance plans.
Investing in proper maintenance allows for reliable and efficient operation of laser welding equipment, has minimal disruptions during operations, and ensures the quality of production is not compromised.
Frequently Asked Questions (FAQs)
Q: How does fiber laser welding differ from conventional welding techniques and what is it exactly?
A: Fiber laser welding is a new technique in welding that integrates computer technology with a laser beam working as the heat source to fuse materials. In contrast to traditional procedures like TIG and MIG welding, fiber laser welding allows for more precise control over the processes of welding, uses less heat, and has the capability of welding a wide variety of materials even those made of different metals. This allows for quality welding, reduction in the affected areas from heat, and increased efficiency.
Q: What are the benefits of fiber laser welding systems aside from their higher accuracy and deeper penetration?
A: As previously stated, these systems have astonishing benefits such as increased accuracy, reduced heat input, faster welding speeds, and better penetration compared to conventional forms of welding. They also have lower running expenses, improved energy efficiency, and can join thinner and dissimilar metal pieces. Furthermore, Fiber laser welding systems can be effortlessly automated and assembled with the rest of the production line equipment making these welders phenomenal for mass collection construction.
Q: Is fiber laser welding applicable for welding metal parts, and if so, what types of metals can be welded?
A: Indeed, metal welding can be performed using fiber laser welding, and dozens of materials can be welded such as steels and alloys of aluminum, copper, titanium, and nickel. Fiber laser welding is useful in many industries for welding both dissimilar and similar metals because the control over the laser beam is accurate. The focused laser beam allows deep penetration and produces high-quality welds, even on thin, sensitive, or heat-sensitive materials.
Q: What is the principle of handheld laser welder operation, and what are its good sides?
A: A handheld laser welder is a mobile piece of equipment designed to laser weld using fiber laser technology. It has a head with a built-in welding laser and a power source connected to a cooling unit. The welding head can be moved along the joint, so the user easily controls the position. Some advantages of handheld fiber laser welding are: ease of mobility, shorter equipment prep time, and the ability to weld in confined spaces. This type of welding is particularly useful for repair jobs, limited productions, and any other work where conventional welding tools can prove to be cumbersome.
Q: Compare laser welding with TIG welding. Which one performs better in each aspect and what are their applications?
A: Laser welding has several benefits in comparison to TIG welding – faster welding speed, deeper penetration, and reduced heat-affected zone. TIG welding is renowned for its quality and versatility, however, laser welding can achieve greater control and precision in the welding process which enhances productivity. Laser welding is more useful for thin materials, robotics production lines, and applications where low distortion is required. On the other hand, TIG welding may be more useful for some materials when the addition of filler metal is needed. The decision to use laser welding or TIG welding relies on the nature of the application, the material properties, and production needs.
Q: What industries can benefit from fiber laser welding systems?
A: Welding systems that use fiber lasers have a wide range of applications in several industries such as automotive, aerospace, electronics, medical devices, and general manufacturing. Industrial sectors focusing on battery packs, sensors, and microelectronic circuits that require high-precision welding will find fiber laser welding useful. The automobile industry employs laser welding during the assembly of body-in-white and powertrain components. The use of laser welding in aerospace is for joining lightweight alloys and complex structures. With fiber laser welding, the medical device industry can achieve high-precision surgical instruments and implant welding.
Q: How does fiber laser welding contribute to energy efficiency and sustainability in manufacturing?
A: Laser welding makes a positive energy efficiency and sustainability impact in several ways. Laser fiber usage is energy efficient because it generates less waste heat as compared to conventional welding. Using laser welding technology means less wastage of the materials due to precise measurement and low consumption of post-weld finish. Moreover, the capability to weld unlike materials and fabricate lightweight structures enables the production of fuel-efficient vehicles and energy-saving devices. Fiber laser welding systems have a sustainable impact on the manufacturing environment because they are long-lasting and require little maintenance.
Q: Which safety issues must be addressed while operating laser welding systems?
A: When operating laser welding systems, safety is a major consideration. Eye protection from direct and reflected lasers, as well as skin shields to guard from beam exposure, are beneficial. Scrubs are also necessary to remove welding fumes and particles. Proper training should be implemented on laser safety and equipment operation. Areas where laser welding takes place should be closed off and marked with warning signs. There should also be checks and stewardship of the fuse laser welding systems so that accidents do not occur.
Reference Sources
1. Incorporation of Fiber Optic Sensors in Metal Parts through Laser Welding and Additive Manufacturing: A Review
- By: Laura A. Arevalo and others.
- Available Online: 1st of May, 2024
- Source: IEEE Sensors Journal
- Citation Token: (Arévalo et al., 2024, pp. 13743–13757)
Research Highlights:
- This paper examines the integration of fiber optic sensors with metal parts through laser welding and additive manufacturing processes. The authors note some difficulties with embedding sensors, especially the challenge of melting metal during welding.
- This work focuses on different embedding approaches and the techniques used for the metallic protective coating of optical fibers aiding in the embedding process.
- Results indicate that the failure of the sensor in structural health monitoring is caused by insufficient embedding process optimization.
2. Influence of Heat Treatment Before and after Welding on the Microstructure and Mechanical Properties of Fiber Optic Laser Beam Delivered Robotic Welded Ti-6Al-4V Alloy
- Authors: C. Köse, E. Karaca
- Published On: 20th July 2023
- Journal: Archives of Metallurgy and Materials
- Citation Token: (Köse & Karaca, 2023)
Summary:
- In this work, the effects of pre and post-weld heat treatments applied to Ti-6Al-4V alloys laser welded with an Nd: YAG using a fiber optic delivery system are the focus of the investigation.
- The authors used different combinations of heat treatment and assessed their effects on the mechanical properties of the welded joints.
- As reported, aging treatments contributed to increased ductility and toughness, while non-aged specimens showed superior hardness and tensile strength.
3. Examination on Feasibility of Laser Welding Aluminum Alloy 7075-T6 with 300 W Single Mode Ytterbium Optic Fiber Laser.
- Authors: A. Paleocrassas, J. Tu
- Publication Date: August 7, 2005 (This document is over five years old but included for reference)
- Citation Token: (Paleocrassas & Tu, 2005, p. 503)
Summary:
- This document examines the feasibility of welding aluminum alloy 7075-T6 using a fiber optic laser with a 300 W single mode ytterbium power source. Aluminum alloys are known for their exceptional specific strength.
- The research discusses the complexity of aluminum welding as it has a high level of reflectivity along with the requirement of high laser power.
- It was noted by the authors that with adequate control of welding parameters, low defect-crossed welds can be achieved.
