Automatic Egg Roll Making Machine — Industrial Wafer Production Line by UDTECH
UDTECH UD05 series delivers fully automatic wafer egg roll production at industrial scale: 330 pieces per minute (19,800 pieces per hour on UD05-3), integrated three-line baking with core injection, customizable wrapper thickness, and European-engineered combustion technology. Built for the food industry's commercial bakeries, snack manufacturers, and central kitchen operators who need consistent output beyond what spring-roll equipment can deliver.
- CE-aligned 2006/42/EC
- FDA 21 CFR 117 food-contact compliant
- ISO 9001 quality management
- European production technology
UD05 Series Specifications
Solving Production Bottlenecks in Wafer Egg Roll Manufacturing
Industry Challenge
Most commercial wafer egg roll lines hit the same three walls. Hand-rolled or semi-automatic operations cap out around 30–60 kg per hour with heavy labor demand and uneven shape. A second wall: equipment marketed online as an "egg roll machine" is often a spring-roll wrapper-and-filler for savory products — a different category from wafer egg roll, which depends on controlled batter spreading, precision baking, and tight roll-forming geometry.
The UD05 Solution
UDTECH UD05 is purpose-built for the wafer category — a sweet, crispy, hollow or filled rolled wafer that requires uniform egg skin thickness, calibrated baking temperature, and clean roll-forming geometry. The system runs as a continuous production line from batter to finished roll: three-line baking, automatic core injection, and integrated roll forming on UD05-3 (dual-line baking on UD05-2). Output reaches 900 kg per 8-hour shift on UD05-3 — sufficient for retail packaging volumes and contract manufacturing.
Procurement Context
For procurement teams weighing supplier options, this distinction reshapes the comparison. Spring-roll equipment from ANKO, SaleCNC, or SpringRollSolution operates on a different food contact surface, a different filling system, and a different forming mechanism. UDTECH does not compete on overlap — it operates in the wafer roll making machine segment, and its throughput-per-dollar profile holds up against any competing wafer biscuit production line in its capacity tier.
UDTECH UD05 Series — Fully Automatic Wafer Egg Roll Models
Two production tiers, both fully automatic with multi-fuel combustion, integrated forming, and food-grade stainless steel construction. Each model includes engineering recipe support during commissioning — UDTECH technicians work directly with your wrapper formulation to calibrate batter ratio, baking temperature, and forming pressure, so first-batch consistency tracks your steady-state target rather than waiting weeks of post-installation tuning to land it.

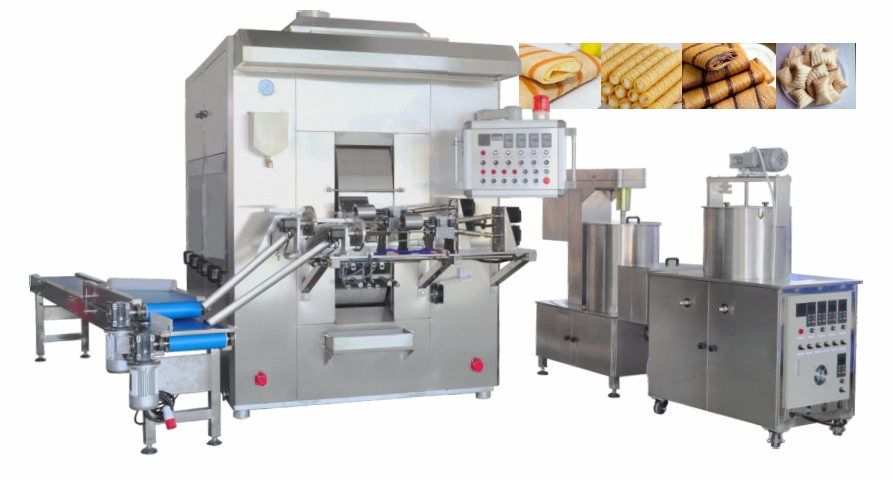

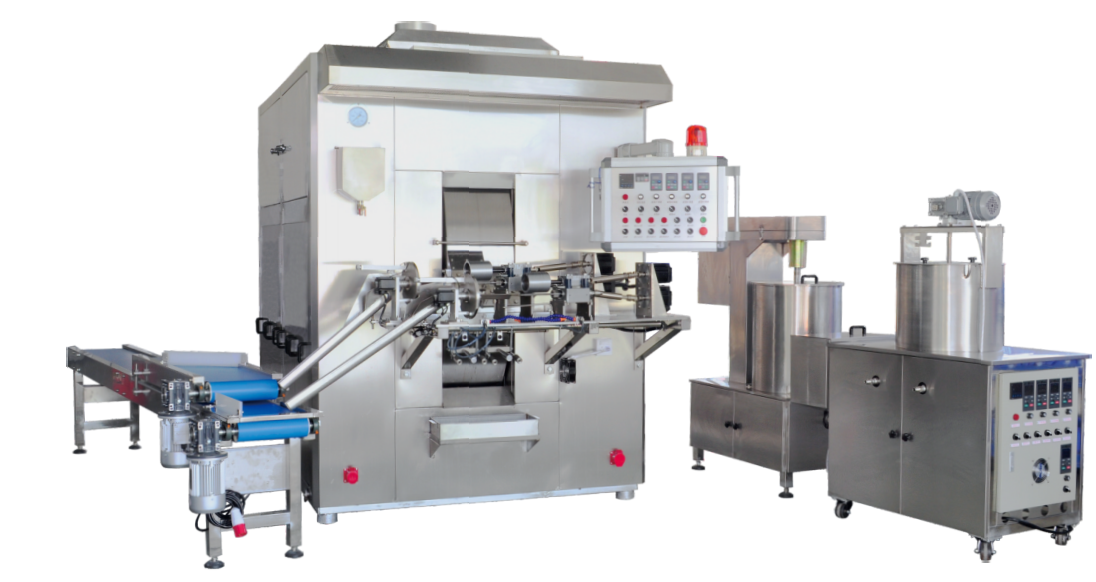

UD05-2 Gas Automatic Wafer Egg Roll Machine
UDTECH Dual-Line Series
Specifically for snack producers and commercial bakeries scaling up for mass production of automatic wafers. Both lines come with automatic core injecting and rolling forming machine.
Ideal for: Small/mid-size Commercial Bakery, Contract Snack Producers, regional brand moving into automated wafer rolls.

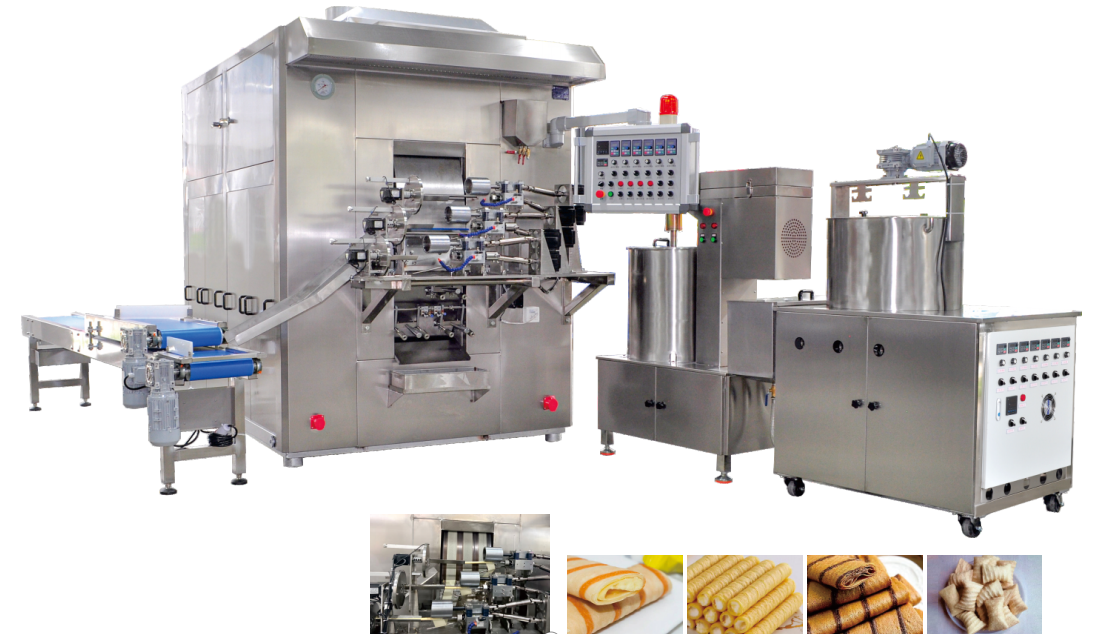

UD05-3 Gas Automatic Wafer Egg Roll Machine
UDTECH Three-Line Flagship Series
- Highest-throughput machine of the UD05 family. 3 line baking
- Automatic core injection, Automatic roll forming, suited for snack industrial production and central kitchen
Ideal match: industrial snack producer, contract baker supplying private labels, large capacity need to maintain daily food production output.
Decision Matrix — Which Model Fits Your Operation
| Driver | Choose UD05-2 if | Choose UD05-3 if |
|---|---|---|
| Daily output target | ≤ 600 kg / shift | 600–900 kg / shift |
| Capital tier | Entry industrial | Flagship industrial |
| Energy efficiency priority | Lower absolute power draw (9.7 kW) | Best kWh per 1,000 pcs in tier |
| Recipe / shape variability | Standard dual-line forming | Three-line with broader shape range |
| Scale-up path | Add second UD05-2 later | Single-line maximum throughput now |
Both units also have variable wrapper thickness control, the length of the egg roll can be set by the operator (often between 7cm to 14cm), and recipe guided calibration capabilities. Multi-fuel capable means the operator can switch to the heat source that is most cost effective in their area without needing to reconfigure their combustion system, which becomes significant for controlling ongoing operating cost if fuel price fluctuate drastically.
ENGINEERING NOTE — HEATING PAN, MOULD, AND ROLLING GEOMETRY
UD05-2 has a dual heating pan arrangement, whereas UD05-3 features a three-pan parallel setup. Multiple etched mold cavities with desired wafer dimensions and thickness are mounted in each pan of UD05-3. Baking the wafers provides structure; thereafter the newly baked sheet undergoes a forming and rolling operation within the narrow “plastic window,” when it is rigid enough for geometrical definition and pliable enough to undergo forming without tearing. Standard electrical power is 380 V / 50 Hz, (or 220 V / 60 Hz available as an option) applied to the line’s controls. Footprint is 4.2 X 3.7 m, with operator-side clearance designed for single side loading to ease plant layout as cooling and packaging conveyors join from the opposite side.
UDTECH vs Traditional Spring-Roll Equipment — Performance Comparison
Shoppers who enter a search for an “egg roll making machine” invariably end up viewing spring roll systems which possess greatly lower productivities. The accompanying is a comparison utilizing reported rival machine specifics. The UDTECH brand belongs in the “wafer egg roll machine” product category whereas the comparison rival products are for spring roll form. When choosing between competing automation systems it’s worthwhile to establish what output they can achieve in dollar value since prices for systems targeted toward food contacting variations or for various types of product differ from that of process cost.
| Metric | UDTECH UD05-3 (wafer) | UDTECH UD05-2 (wafer) | ANKO ER-24 (spring roll) | SpringRollSolution (spring roll) | SaleCNC (spring roll) |
|---|---|---|---|---|---|
| Production capacity | 19,800 pcs / hr | 13,200 pcs / hr | 2,400 pcs / hr | 3,000–4,000 pcs / hr | 500–800 pcs / hr |
| Power consumption | 12 kW | 9.7 kW | Not published | 59 kW | 18 kW |
| Output kg / 8h | 900 kg | 600 kg | ~150 kg (filled, est.) | ~270 kg (est.) | ~40 kg (est.) |
| Multi-fuel (LPG + natural gas) | Yes — switchable | Yes — switchable | Not specified | Not specified | Electric, 380V |
| Product category | Wafer (sweet, hollow / filled) | Wafer | Spring roll (savory, filled) | Spring roll | Spring roll |
| Footprint | 15.5 m² | 15.5 m² | Not published | ~9 m² (wrapper section) | ~3 m² |
| Indicative lead time | 9–13 wk | 9–13 wk | RFQ — not published | RFQ — not published | Catalogue stock |
Performance & Energy Efficiency
Energy efficiency tells the sharpest part of the story. UD05-3 draws 12 kW to produce 19,800 pieces per hour — roughly 0.61 watt-hours per piece. SpringRollSolution's industrial line uses 59 kW for 3,000–4,000 pieces per hour, working out to roughly 16 watt-hours per piece. Different product category, granted — but for any operator weighing automation against an existing manual or semi-automatic baseline, the throughput-per-dollar and energy-per-piece numbers reframe the cost conversation entirely.
TCO & Investment ROI
Independent industry research on total cost of ownership confirms that buyers selecting equipment on TCO rather than purchase price report roughly 40 percent higher five-year ROI and 30 percent fewer production disruptions.
Customer Results — From Pilot to Full Production
Industrial automation projects in biscuit and wafer production reliably deliver double-digit ROI when sized correctly to baseline. The patterns below reflect industry-wide benchmarks for wafer biscuit production line automation, drawn from independent automation ROI studies. Specific outcomes scale with prior labor cost, capacity utilization, and replacement scope — UDTECH publishes a sized analysis for each procurement engagement rather than fixed projections that may not apply to your operation.
Industry-Wide Wafer & Biscuit Automation ROI Pattern
Source: Qviro, EverSmart, Oxmaint, AMD Machines, FIRGELLI Engineering, Loyal Food Machinery, et.al. UDTECH can also generate a customized total-cost of automation report specific to your operations and the projected scope of investment by evaluating the economics around your particular setup. Request a personalized ROI analysis by clicking below.

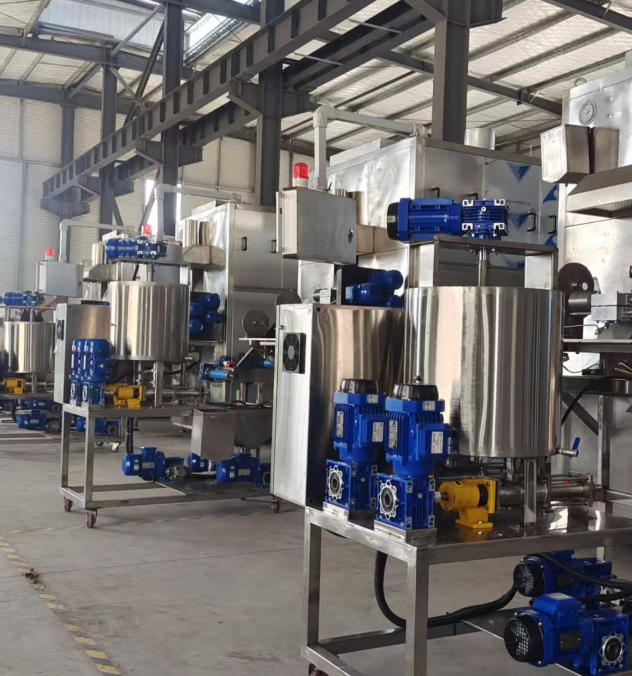

Pattern 1 — Manual to UD05-2 transition (typical)
For example, let’s say one client that has already migrated production from their manual lines to an “all UDTECH” automated double line typically realizes over six-times output gains from the 50-kg to the 600-kg/hour/shift mark… and reduce headcount from 10-12 attendants down to 2 or 3 line attendants with a 14-22 month payback.

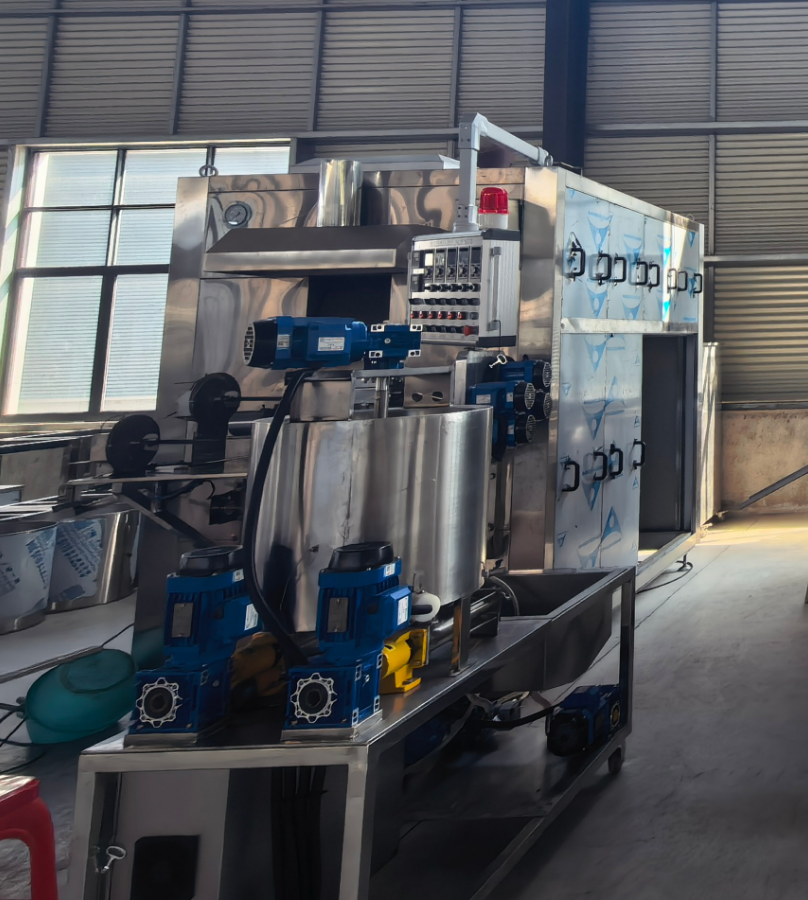

Pattern 2 — Capacity expansion to UD05-3 (typical)
To ensure a regional contract bakery meets the volume demands required to support retail, it can scale production by using a UD05-3. These units not only increase total weekly output of skin material well in excess of 700 kg /shift, but also meet precise specifications (0.2-mm variance tolerance on all dimensions and weight) under all batches-99.25- to 99.5% yield rates with optimized baking settings.

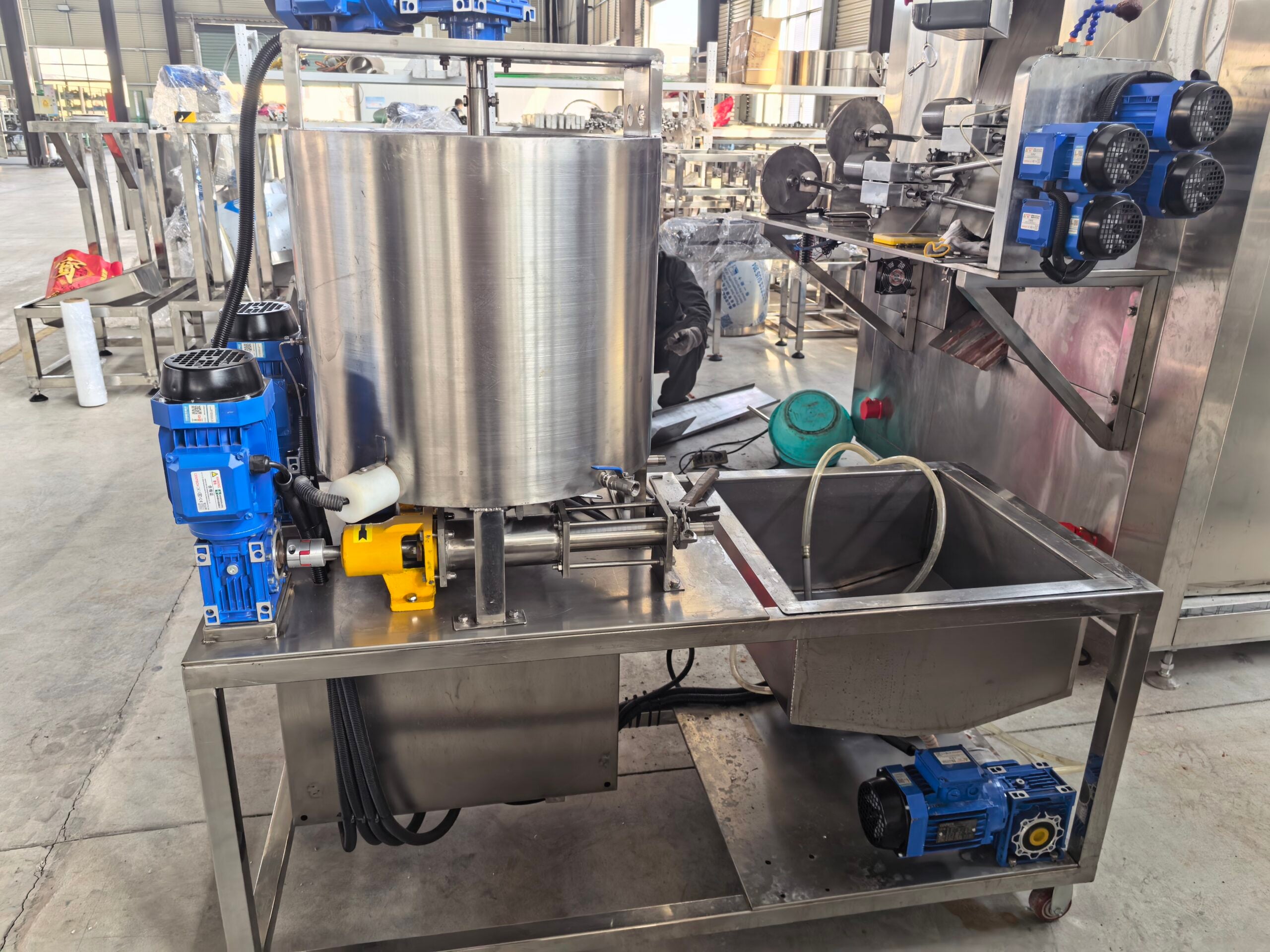

Pattern 3 — Energy and waste reduction (typical)
Migrating from older semi-automatic wafer lines to UD05-3 with PLC combustion control compresses per-piece energy consumption to roughly 0.61 Wh and trims waste rate from the prior 6–8% range into the sub-2% band common on modern PLC-controlled lines. The energy gain compounds across full-shift operation; the waste gain shows up on the first batch.
During quotation, UDTECH will build you custom ROI worksheet based on your labor cost, target output, the price of fuel, and your line’s utilization percentage. Generic percentages on ROI are just a quick check, but to get CFO approval, you need a ROI based on your operations. Finance teams scrutinize the productivity lift first — kilograms-per-shift, operator-to-line ratio, and waste-per-thousand-pieces are the metrics that compound across asset life.
Want numbers sized to your operation, not industry averages?
Request a custom ROI analysis →Food Safety Certifications & Compliance
UDTECH UD05 systems meet or exceed standards and certifications in FDA food contact materials, machine safety, and quality management system. We deliver you’ll the certification documentation set that goes with each unit; for your records, we’ll detail the specific certificates and issuing bodies you’ll need for your audit file. This works for all areas in food production - a wafer egg roll company operates under same legal framework as any other food manufacturer, and by default UDTECH builds to that same expectation, no premium package required.
Machinery Directive 2006/42/EC — transitioning to EU 2023/1230 (effective 2027-01-20)
21 CFR 117 food-contact surface compliance, 21 CFR 175.300 GRAS stainless steel
Quality management system — design, manufacturing, after-sales
Good Manufacturing Practice — process discipline and traceability
Hazard Analysis Critical Control Points — Codex Alimentarius aligned
Engineering Note — Food Contact Surface Materials
We only use FDA-recognized stainless steels that meet and exceed the FDA ‘Generally Recognized As Safe’ requirements specified in 21 CFR 175.300 (each more than 16% chromium). Stainless food-contact surfaces meet and exceed GMP cleaning standards and comply with all of the requirements for cleaning, corrosion resistance and non-toxicity specified in 21 CFR 117.40.
Procurement Guide — Pricing · Lead Time · Installation
The UDTECH UD05 is positioned in the market for premium industrial wafer production lines. UDTECH quotes on a custom, configured price, not a catalog price - this is industry-standard for a piece of industrial food equipment of this performance level. Below, you'll find the factors that influence our pricing and an outline of what the order process looks like.
PRICING FACTORS
Configurable
Final pricing will vary based on the choice of UD05 configuration (UD05-2 vs UD05-3), the specific fuel system configuration (LPG, natural gas, or dual fuel), any optional HMI touch screen package, certification scope, and the level of automation provided for upstream mixing or downstream packaging. These options are listed as individual line items for the purpose of transparent budgeting and comparison. For a fully configured price, contact UDTECH directly.
INDICATIVE LEAD TIME
9–13 weeks
UDTECH’s lead time from signed agreement through factory acceptance is about 9-13 weeks - a full lead time shorter than the 16-32-week production times that are commonplace for fully custom industrial food equipment. Included time is dedicated for production, quality control testing, and preparation for transport. On-site installation and sea freight time will vary by delivery destination.
MINIMUM ORDER
1 line
UDTECH sells single production line packages. Multi-line orders are frequently placed by larger bakeries building production capacity over stages and are configured so that shared resources-spare parts, operator training-can be deployed across the entire facility.
INSTALLATION
5–7 days on-site
On-site set-up, recipe calibration and live production qualification carried out by UDTECH commissioning engineers. Recipe support Engineering is included in the standard installation scope and it is when commissioning that wrapper formulation is correctly applied to UD05 baking parameters - no issues post installation.
OPERATOR TRAINING
2–3 days
There is two different operator training types and done by a trainer during commissioning, as:
• Operators: Line start-up, daily start-up and shut-down, recipes operations.
• Maintenance: Daily planned preventive maintenance activities and scheduled planned activities, common adjustments and troubleshooting procedures. Operator training handbook available in English and Chinese (on request for other languages).
WARRANTY & SUPPORT
12 mo + Lifetime
Full manufacture’s warranty covering core components for 12 months from date of factory acceptance test. Free remote service support for the life of the asset - UDTECH engineering staff answer operator technical support queries by phone, email, and video support. Recommendations on optimum critical spares stock levels provided on delivery, so that the necessary components are available at site.
Supplies on request, for purchasers making planned supplier comparisons, a list of similar references, factory acceptance test documentation, the procedures for issuing the inspection notification and a breakdown of the quote on a per-line item basis are supplied - normal practices in purchasing food machinery and they serve to cut the bidding evaluation period.
Engineering & Procurement Toolkit
Access our suite of calculators and decision helpers to size your production, estimate ROI, and configure the optimal UD05 wafer line for your facility.
Wafer Egg Roll Production ROI
Estimate payback period and 5-year savings for UD05 vs your current manual or semi-automatic baseline based on industry-wide automation patterns.
UD05-2 vs UD05-3 — Decision Helper
Answer five operational questions regarding your output targets, energy priority, and scale-up horizon to find the exact capacity tier for your market.
Wafer vs Spring-Roll Category Check
Verify if your product formulation requires sweet, crispy wafer roll architecture or a savory dough wrapper system to avoid equipment mismatch.
Annual Fuel Cost Calculator
Compare LPG versus Natural Gas heat source OPEX based on your local utility rates and specific shift schedules for the UD05 multi-fuel system.
Frequently Asked Questions
UDTECH UD05 is a wafer egg roll machine — engineered for sweet, crispy, rolled wafers (the wafer category). Spring-roll equipment from ANKO, SpringRollSolution, SaleCNC and similar suppliers handles a different product entirely: savory wrappers built around discrete fillings, with a separate dough sheeting profile and food contact surface system. Same search term, different equipment family, different food contact surfaces, different forming mechanisms. If you produce wafer-style rolled snacks for retail, contract manufacturing, or central kitchen output, UD05 is your category — and the throughput-per-dollar comparison only makes sense within the wafer tier. If you produce filled savory spring rolls, those competitors are.
UD05-2 delivers 220 pieces per minute / 600 kg per 8-hour shift on dual-line baking. UD05-3 delivers 330 pieces per minute / 900 kg per 8-hour shift on three-line baking. Both run multi-fuel combustion (LPG or natural gas), share the 15.5 m² footprint, and integrate automatic core injection plus roll forming. UD05-2 fits mid-size commercial bakeries; UD05-3 fits industrial snack manufacturers and contract bakeries serving retail private-label customers.
There is no fixed catalogue price for UD05 — it is quoted as a configured industrial line. Final pricing reflects model selection (UD05-2 vs UD05-3), fuel configuration, control-system tier, certification documentation scope, and any upstream or downstream integration. Each factor is itemized in the quotation. Buyers selecting equipment on total cost of ownership rather than unit price report roughly 40% higher five-year ROI — a TCO worksheet ships with the quotation so your finance team can compare on the same basis. Contact UDTECH for a configured quote.
Typical UDTECH UD05 lead time from signed contract to factory acceptance test is 9–13 weeks, which is materially faster than the 16–32 week range commonly documented for full-custom industrial food machinery builds. The schedule covers production, factory acceptance testing, and crating. Sea freight and on-site installation (5–7 days commissioning) are scheduled separately based on your destination and project timeline.
Yes — multi-fuel, switchable in the field. UD05-2: ~6 kg/h LPG or ~8 m³/h natural gas. UD05-3: ~8 kg/h LPG or ~10 m³/h natural gas.
All UD05 systems are engineered to harmonized standards covering CE (Machinery Directive 2006/42/EC, transitioning to EU 2023/1230), FDA 21 CFR 117 food-contact surface compliance plus 21 CFR 175.300 GRAS-recognized stainless steel grades, ISO 9001 quality management, GMP process discipline, and HACCP hazard analysis aligned to Codex Alimentarius. Specific certificate numbers and issuing body references arrive in the procurement package for your audit file.
Industry-wide automation studies for biscuit and wafer production lines report typical payback periods of 18–24 months with 25–45% annual savings on the initial investment. Most of that compound comes from three places: labor reduction (up to 70% with integrated flow-pack and packaging downstream), waste-rate compression (under 2% with PLC temperature control versus 6–8% on older manual lines), and yield consistency on shape and skin thickness once forming parameters are dialed in. These patterns are industry-wide, drawn from automation ROI research published by EverSmart, Qviro, Oxmaint, AMD Machines, FIRGELLI, and Loyal Food Machinery — not UDTECH-specific guarantees. During quotation, your sales engineer builds a sized ROI worksheet reflecting your existing labor cost, target output, local fuel pricing, capacity utilization, and any downstream packaging integration. The number your CFO needs to see is the one matched to your operation, not the industry average. Sized analysis is the only credible basis for a capital approval at this throughput class.
Standard support package: 12-month warranty on main components from factory acceptance test, lifetime remote engineering support (email, phone, video assistance), and spare parts inventory recommendations supplied at delivery so critical components are local to your facility. Two-track operator training (operations + maintenance) is delivered during the 5–7 day commissioning visit. For multi-line deployments or regional clusters, UDTECH supports spare parts pooling and shared engineering response. After-sales service quality is consistently cited in industry research as a top-three procurement evaluation factor — UDTECH treats it as core scope, not an add-on.

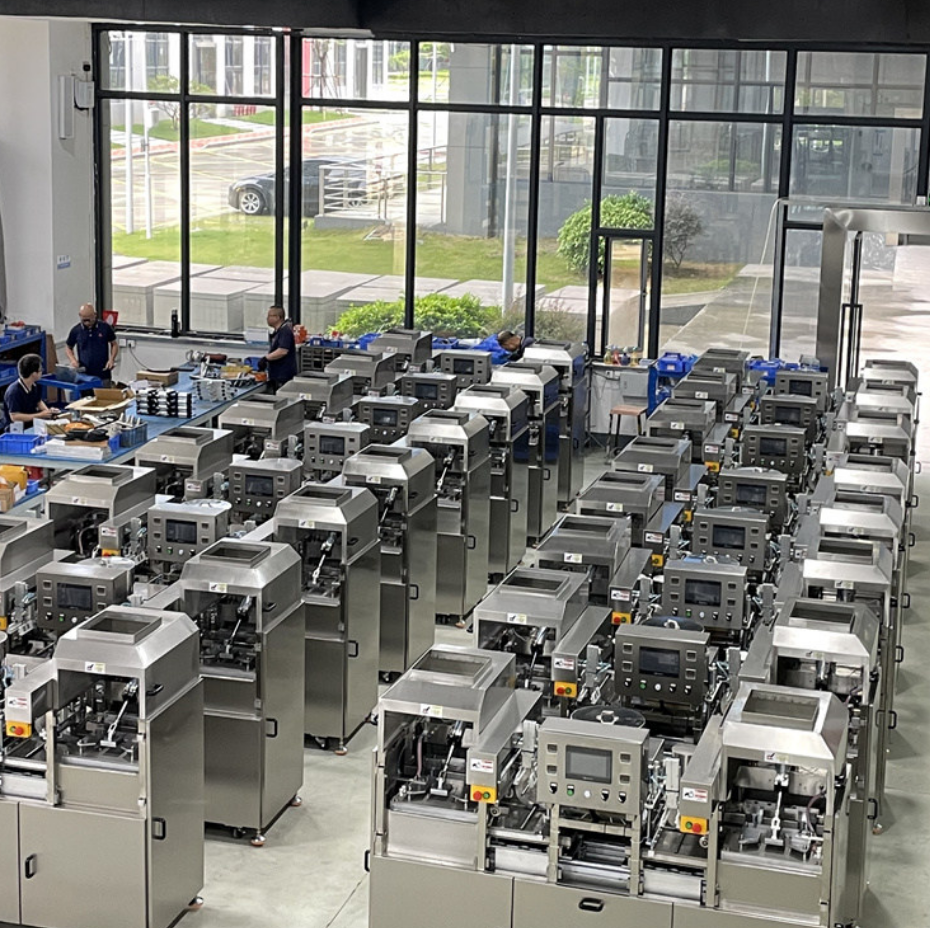

About This UDTECH Wafer Egg Roll Guide
UDTECH manufactures wafer egg roll machinery with deep experience in the (wafer) snack category. Capacity figures, energy consumption, and footprint data on this page come directly from UD05-2 and UD05-3 production specifications. ROI patterns reference published industrial automation studies for biscuit and wafer lines — they are industry benchmarks, not UDTECH-specific guarantees. Pricing is configured per quotation rather than published as a fixed catalogue figure, in line with food processing equipment practice at this throughput class.
Ready to size a UDTECH UD05 line for your operation?
Submit the targeted outcome, availability of the fuel, and installation requirements. We'll reply with a custom quote, scaled ROI calculation sheet and a references list in just 1 business days.
